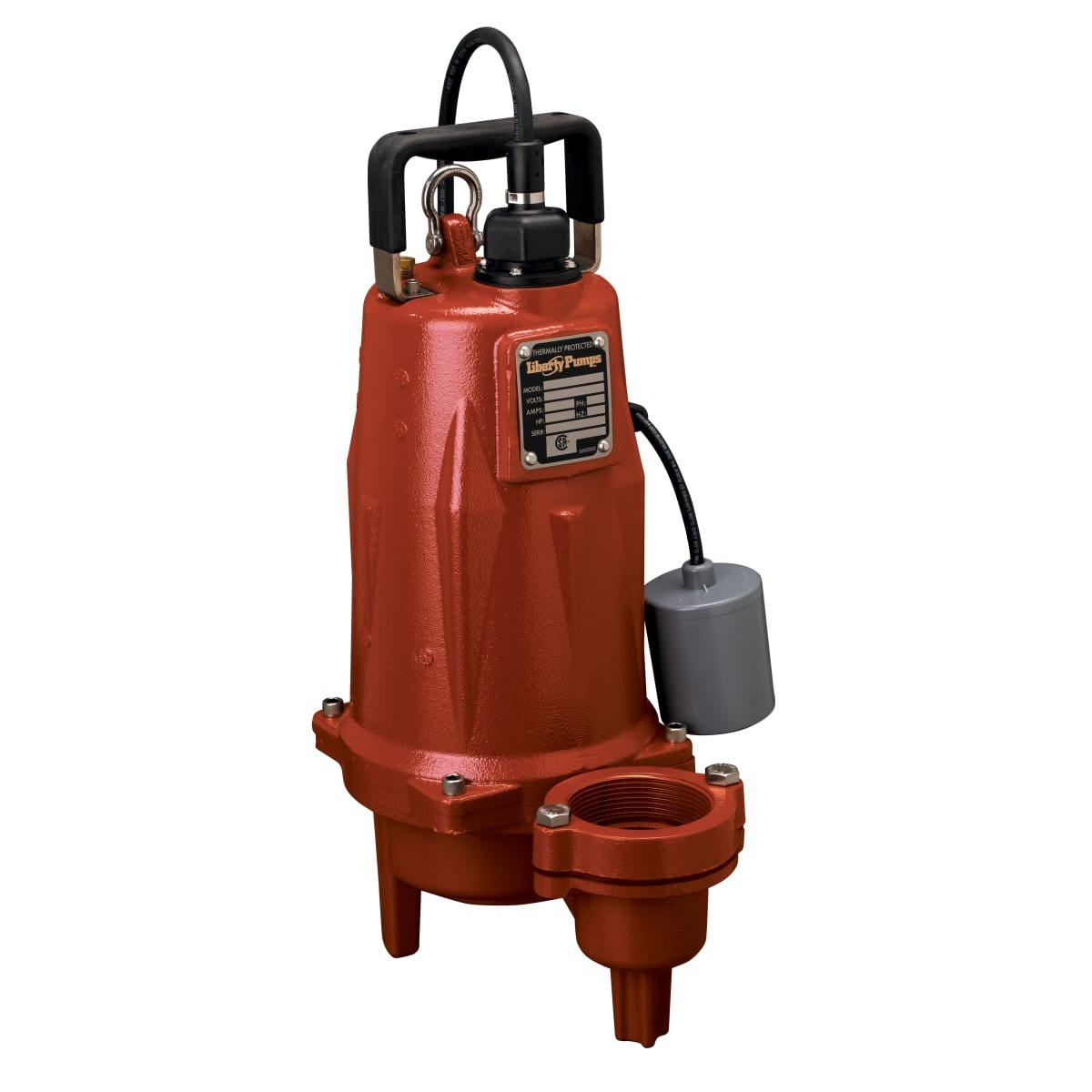

Liberty Pumps LEH152A2-2 1.5 Hp Sewage Pump 1 Ph 208-230 V (25 ft Cord / 2 inches Discharge) LEH152A2-2

Brand: LIBERTY PUMPS
SKU: LEH152A2-2
Availability: In Stock

Ships via freight in 1-3 business days
$1,996.64
$1,996.64
LTL Delivery

This product weighs 64 lb each and will be shipped via LTL carrier. A lift gate option will be added free of charge for your convenience.

HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

The Liberty Pumps LEH152A2-2 is a 1.5 Hp automatic submersible sewage pump rated 208-230 V with a 25 ft quick-disconnect power cord and a 2" discharge. The pump uses 2-vane, semi-open cast iron impellers to pass 2" solids and provides up to 70 ft maximum total dynamic head and up to 200 GPM flow. Construction includes cast iron housing, a 416 stainless steel rotor shaft and an oil-filled hermetically sealed motor.

  • 1.5 Hp single-phase motor, 208-230 V, 3450 RPM, oil-filled hermetically sealed with built-in thermal protection
  • 2-vane semi-open cast iron impeller passes 2" solids; maximum TDH 70 ft and up to 200 GPM
  • 25 ft quick-disconnect cord with wide-angle piggyback float switch; 2" FIP discharge; cast iron housing and epoxy finish

Product Highlights

Automatic submersible sewage pump, 1.5 Hp, handles 2" solids, 70 ft maximum head, 25 ft cord with piggyback float switch.

Product Information

Standard Information

  • Brand: LIBERTY PUMPS
  • Manufacturer Part Number: LEH152A2-2
  • Country of Origin: USA
Technical Specifications
Brand
Liberty Pumps
MPN
LEH152A2-2
Model Series
LEH150
Product Type
Submersible sewage pump
Horsepower
1.5 Hp
Phase
Single-phase (1 Ph)
Input Voltage
208-230 V
Frequency
60 Hz
Speed
3450 RPM
Discharge Size
2"
Discharge Connection
2" FIP
Cord Length
25 ft (quick-disconnect)
Maximum TDH
70 ft
Maximum Flow
200 GPM
Solids Handling
2" solids
Impeller Type
2-vane, semi-open cast iron impeller
Housing Material
Cast iron with epoxy powder coat finish
Fasteners
Stainless steel and brass fasteners
Shaft Material
416 stainless steel rotor shaft
Motor
Oil-filled, hermetically sealed motor
Thermal Protection
Built-in thermal protection (single-phase models)
Bearings
Permanently lubricated upper and lower ball bearings
Shaft Seal
Unitized shaft seals
Level Control
Wide-angle piggyback float switch (single float mechanical level control with series plug for manual bypass)
Adjustable Pumping Range
Yes
Maximum Fluid Temperature
140 F
Dimensions (H x W)
21" x 13"
Minimum Basin Diameter
18"
Minimum Basin Depth
24"
