Liberty Pumps LEH102A2 LEH100 Series Submersible Sewage Pump 1 hp (2 in. Discharge / 10 ft Cord) LLEH102A2

Product Description

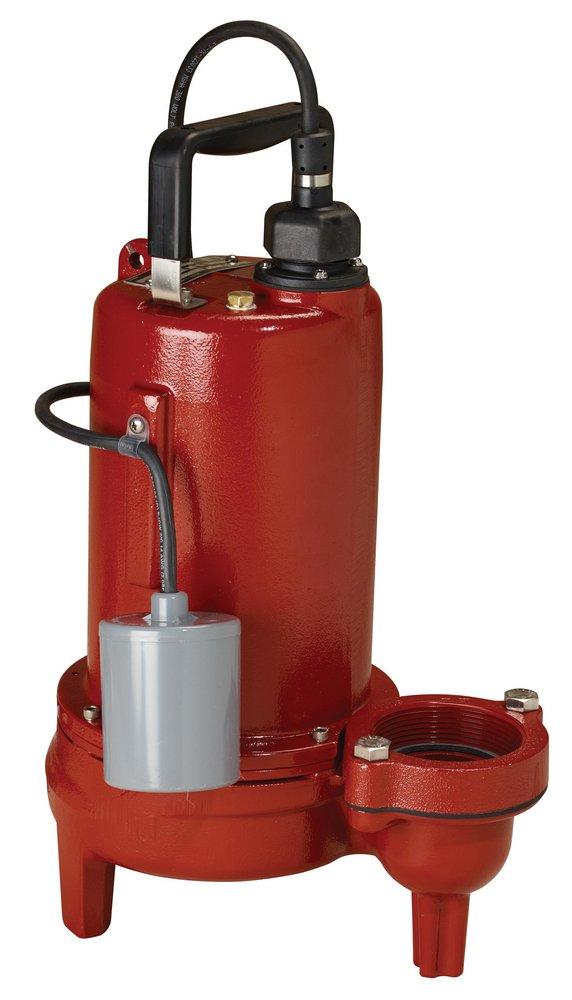

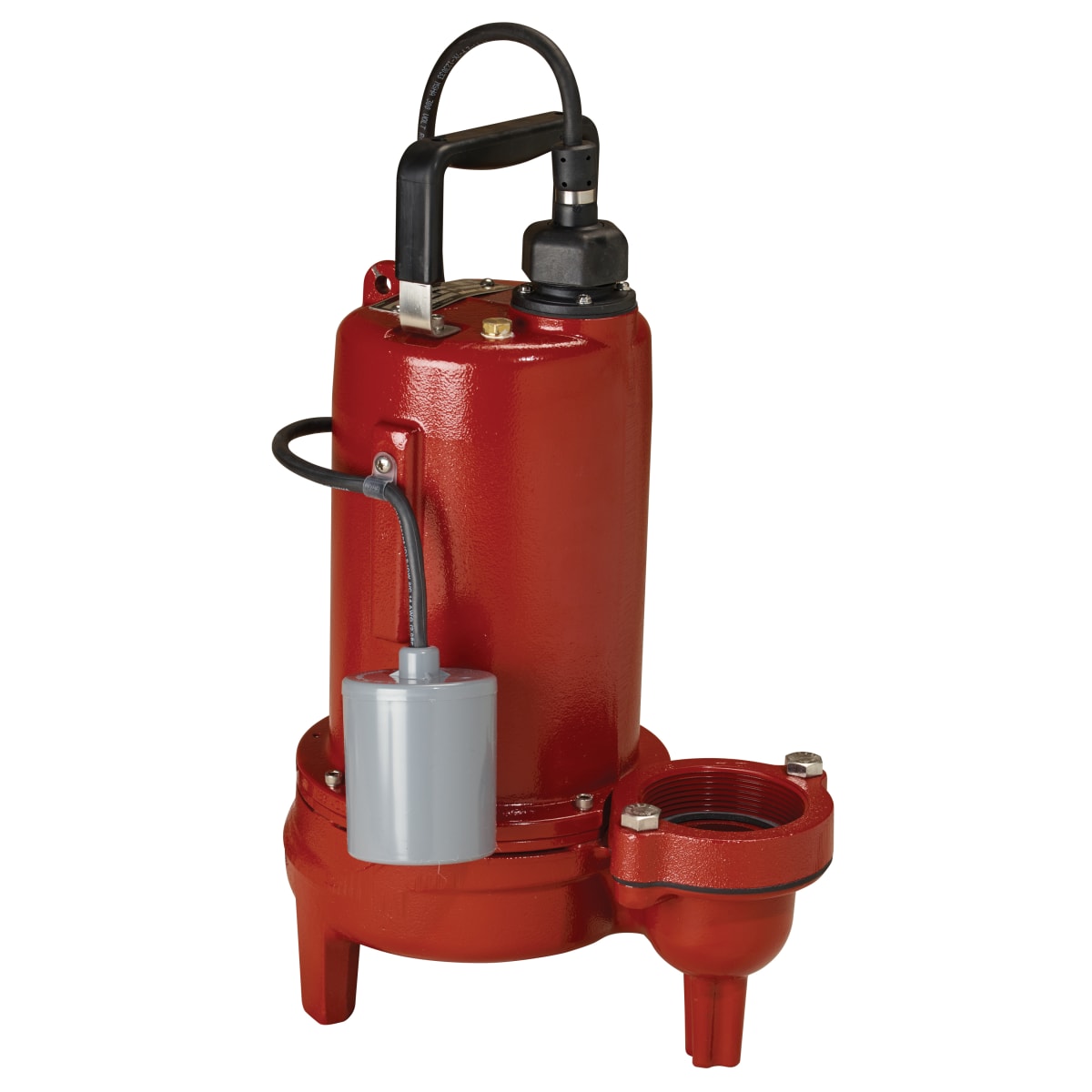

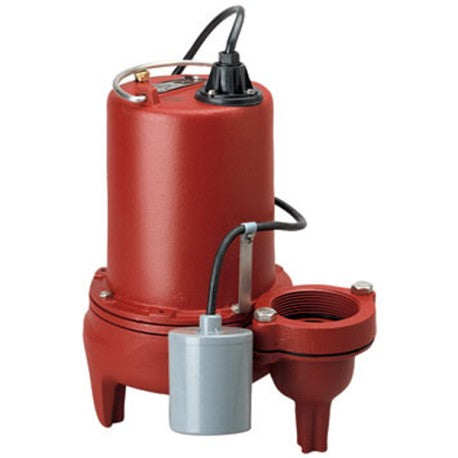

Liberty Pumps LEH102A2 is a 1 hp submersible sewage pump with a 2 inch flanged discharge and a 10 ft quick-connect power cord. The pump uses a rugged 2-vane semi-open cast iron impeller, cast iron housing and volute, unitized shaft seals and a 17-4 PH stainless steel shaft. The oil-filled hermetically sealed motor has permanently lubricated bearings and an adjustable pumping range for effluent and sewage applications.

• 1 hp single-phase motor, oil-filled and hermetically sealed with permanently lubricated upper and lower ball bearings
• 2 in. flanged discharge with 2-vane semi-open cast iron impeller capable of passing 2 in. solids
• 10 ft quick-connect power cord and wide-angle float switch option for automatic operation; maximum TDH 53 ft

Product Highlights

Submersible sewage pump; 1 hp, 208-230V single phase; 2 in. flanged discharge; 10 ft quick-connect cord; cast iron construction; unitized shaft seals; 17-4 PH stainless steel shaft

Product Information

Standard Information

• Brand: LIBERTY PUMPS
• Manufacturer Part Number: LEH102A2
• Country of Origin: United States

Technical Specifications

• Brand: Liberty Pumps
• Manufacturer Part Number (MPN): LEH102A2
• Model / Series: LEH100 Series
• Type: Submersible sewage pump
• Application: Effluent / sewage pumping
• Horsepower: 1 HP
• Phase: Single phase
• Voltage: 208-230V
• Frequency: 60 Hz
• Amps: 12
• Discharge Size: 2 in.
• Discharge Connection: Flanged discharge
• Cord Length: 10 ft quick-connect
• Impeller: 2-vane semi-open cast iron impeller
• Housing / Volute Material: Cast iron
• Shaft Material: 17-4 PH stainless steel
• Shaft Seals: Unitized shaft seals
• Motor: Oil-filled, hermetically sealed motor
• Bearings: Permanently lubricated upper and lower ball bearings
• Thermal Protection: Built-in thermal protection (single-phase models)
• Float Switch: Wide-angle piggyback float switch (automatic operation)
• Maximum Total Dynamic Head (TDH): 53 ft
• Solids Handling: Up to 2 in.
• Pumping Range: Adjustable
• Maximum Fluid Temperature: 140 F
• RPM: 3450
• Minimum Basin Diameter: 18 in.
• Minimum Basin Depth: 24 in.
• Discharge Feature Notes: Capable of passing 2 in. solids (semi-open impeller)
