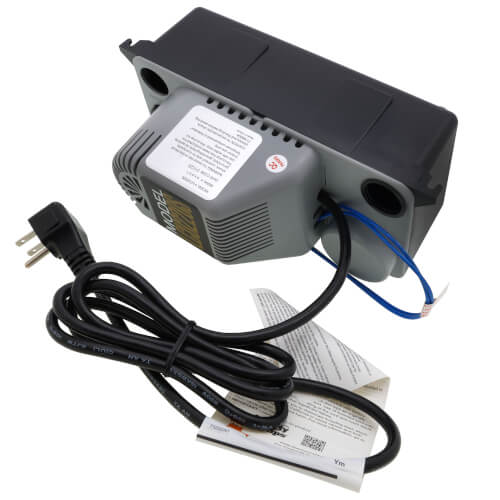

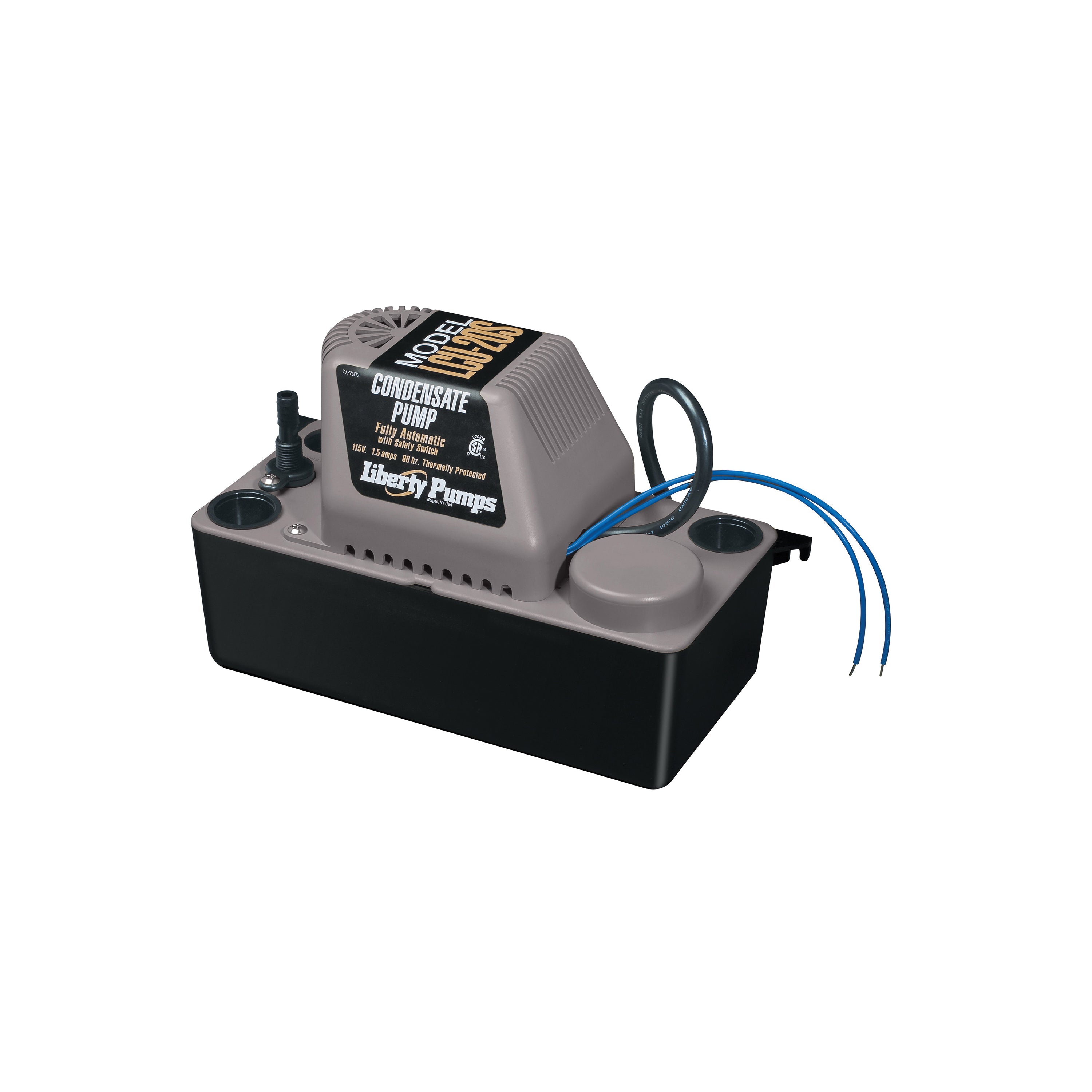

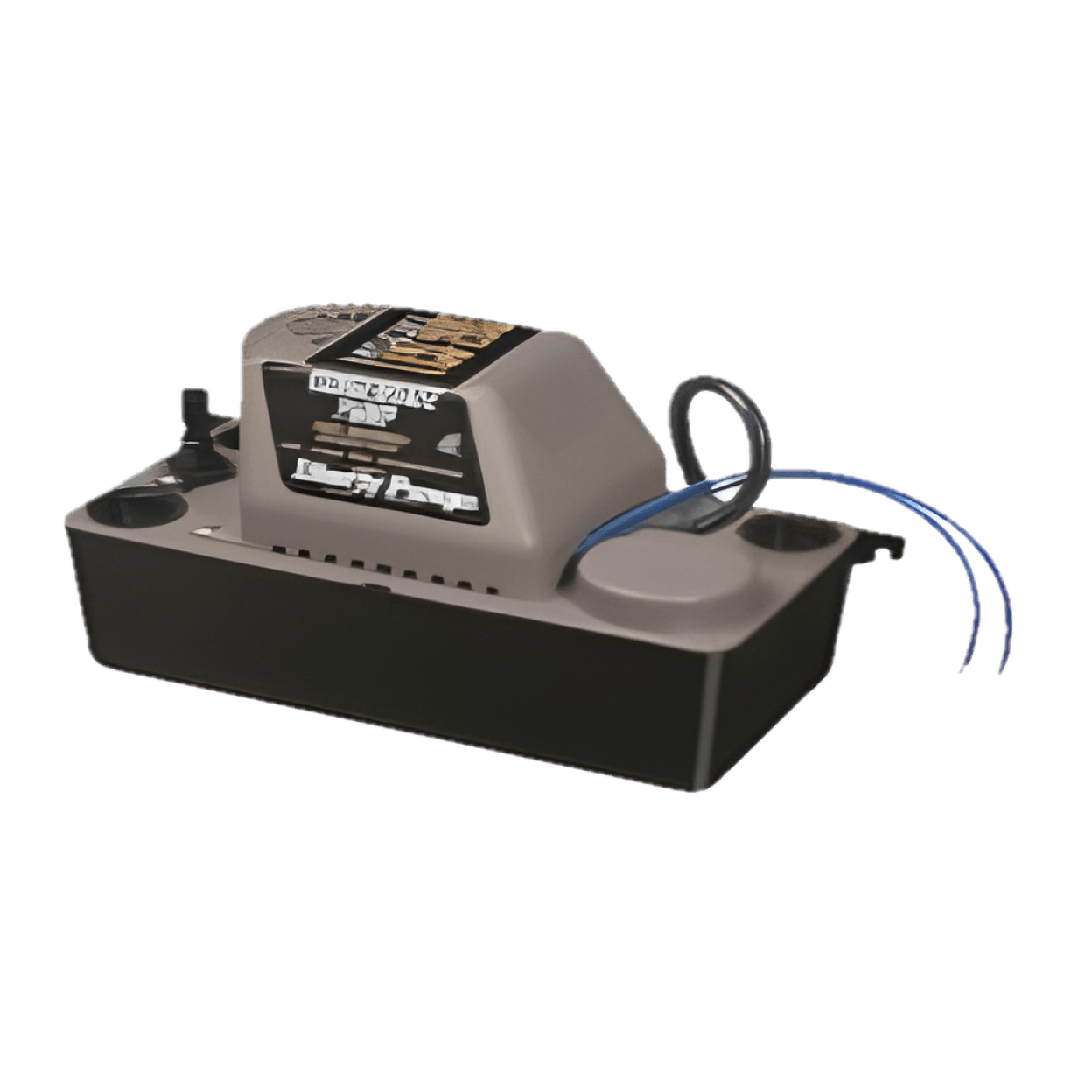

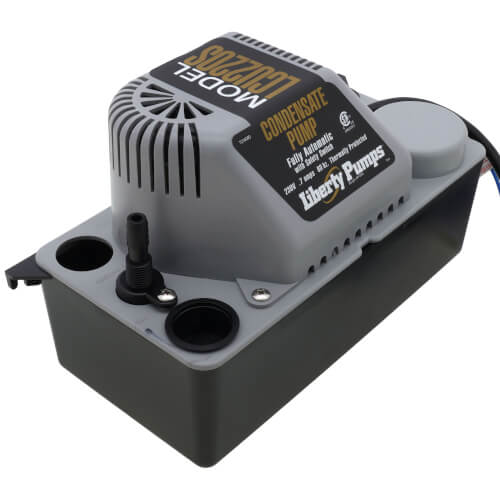

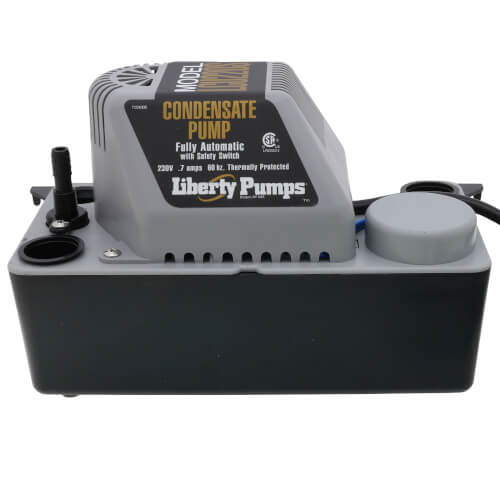

Liberty Pumps LCU220S Condensate Pump 1/30 HP 230V 110 gph

Product Description

The Liberty Pumps LCU220S is a condensate pump designed for efficient removal of condensate from high-efficiency furnaces, A/C systems, and other equipment. This pump operates at 1/30 horsepower and uses 230 volts of electricity, providing a flow rate of up to 110 gallons per hour. It is equipped with a safety switch to ensure secure operation.

• Flow Rate: 110 gph
• Shutoff Head: 20 feet
• Outlet Size: 3/8 inch OD

Product Highlights

The LCU220S model features a built-in safety switch and a durable ABS tank. It is designed for wall mounting, making installation straightforward and efficient.

Product Information

Standard Information

• Brand: Liberty Pumps
• MPN: LCU220S
• Series: LCU
• Warranty: 3 Years

Technical Specifications

• Dimensions: 6-1/2 inches H x 11-1/8 inches W x 5 inches D
• Electrical Rating: 230 V, 60 Hz, 0.7 A
• Reservoir Capacity: 2 US quarts
• Power Rating: 1/30 hp
• Country of Origin: China
• Temperature Rating: 150 degrees F Fluid
• Pack Quantity: 1 pk
• Mounting Type: Wall
• Mfg Standards/Approvals: cCSAus Certified
