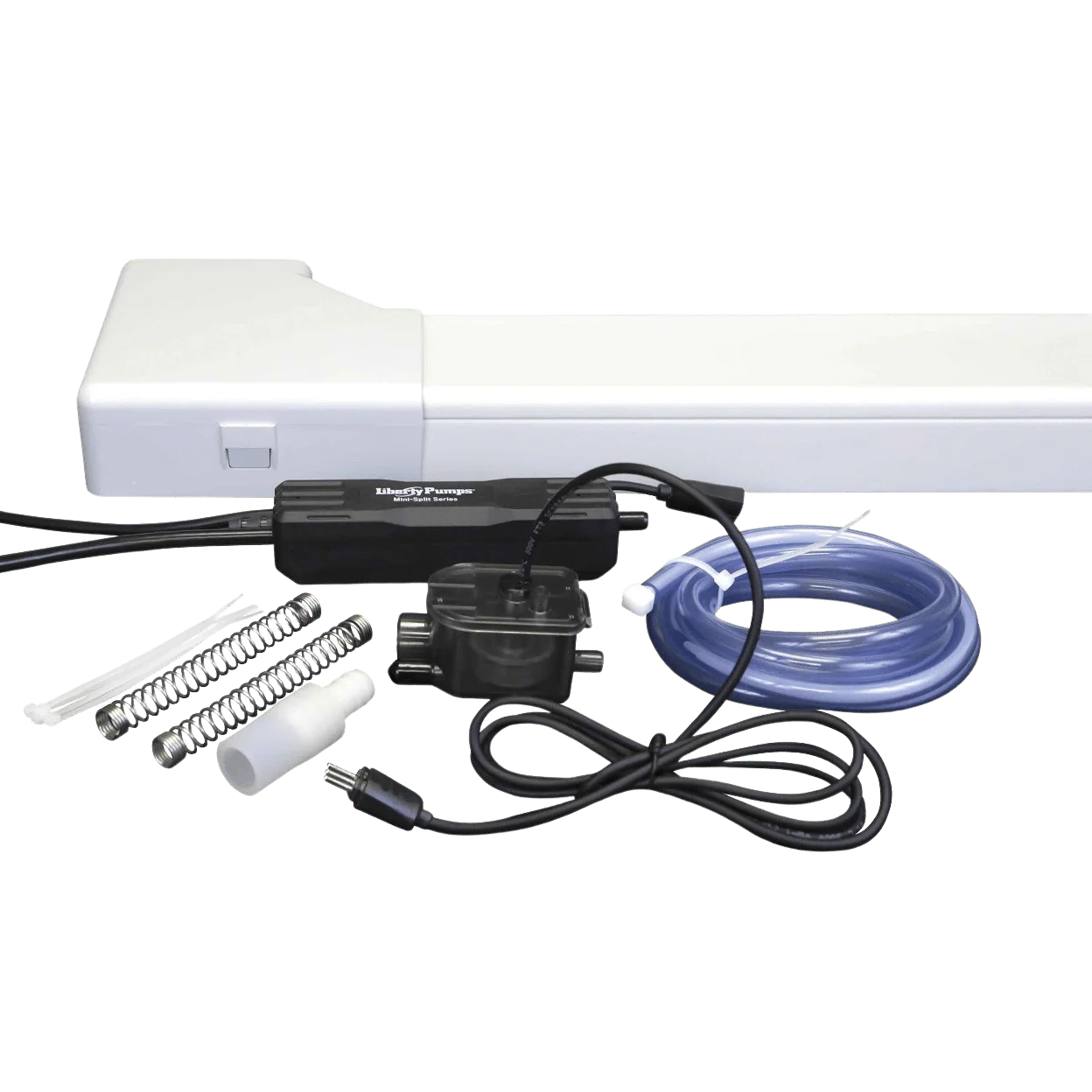

Liberty Pumps LCU-MS2 Mini-Split Condensate Pump with Line Cover Kit 100-240V

Product Description

The Liberty Pumps LCU-MS2 is a mini-split condensate pump with a line cover kit designed to remove condensate from wall-mounted and ductless mini-split air conditioners. This pump supports voltage ratings from one hundred to two hundred forty volts and operates at a frequency of sixty hertz.

• Maximum head lift of six point six feet
• Constructed with a two-piece design for easy installation
• Quiet operation and solid-state switch technology

Product Highlights

This pump is suitable for applications where reliable condensate removal is essential. It features a clear reservoir for visual inspection and includes necessary installation accessories.

Product Information

Standard Information

• Brand: Liberty Pumps
• MPN: LCU-MS2

Technical Specifications

• Item Name: Condensate Pump with Cover Kit
• Type: Mini-Split
• Series: LCU-MS
• Maximum Head: 6.6 feet
• Construction: 2-Piece
• Voltage Rating: 100 - 240V
• Amperage Rating: 0.19A
• Wattage Rating: 30W
• Frequency Rating: 60 Hz
• Dimensions: 1.3 in. (L) x 1.26 in. (W) x 5.2 in. (H)
• Weight: 3.5 Lbs.
• Ambient Temperature: 32 - 122 degrees Fahrenheit
• Applications: For removal of condensate from wall mount, ductless mini-split air conditioners, fan coils and suspended ceiling air conditioners
• Standards/Approvals: ANSI/UL 778, CAN/CSA C222.2 No 108, cETLus Listed
