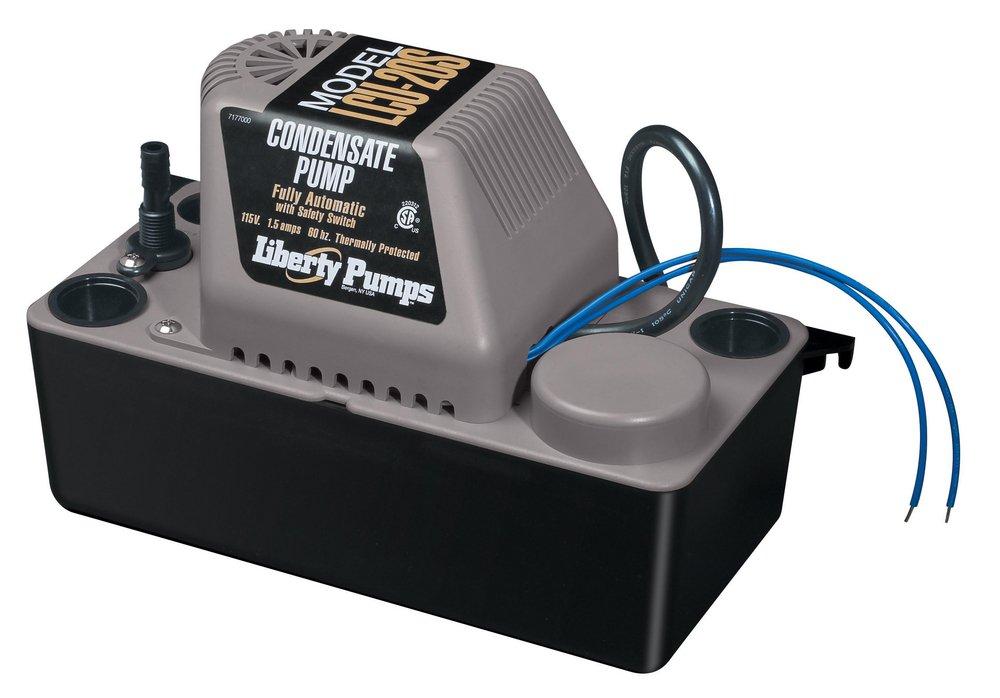

Liberty Pumps LCU-20S 1/30 hp Automatic Condensate Pump with Safety Switch

Product Description

The Liberty Pumps LCU-20S is a condensate pump designed to remove condensate from high-efficiency furnaces, air conditioning equipment, dehumidifiers, and ice machines. It operates on a 1/30 horsepower, 115-volt motor and includes a safety switch for added protection. This pump has a maximum head of twenty feet and delivers up to one hundred five gallons per hour at one foot of head.

• High impact ABS tank for durability
• Fully automatic and thermally protected operation
• Includes a removable check valve and three intake holes

Product Highlights

The LCU-20S features a stainless steel shaft and a barbed and threaded discharge connection. This design ensures efficient and reliable condensate removal.

Product Information

Standard Information

• Power Supply: 115V, 60 Hz
• Item Name: Condensate Pump

Technical Specifications

• Amperage Rating: 1.5 A
• Tank Capacity: 2 US qt
• Max Feet of Head: 20 ft
• Dimensions: 11.125 inches L x 5 inches W x 6.5 inches H
• Weight: 5 lb
• Material: ABS
• Operating Temperature: 150 deg F
• Includes: Safety Switch
