Liberty Pumps K001155 Float Switch for Pump for Liberty Pumps 404 Drain Pump

Product Description

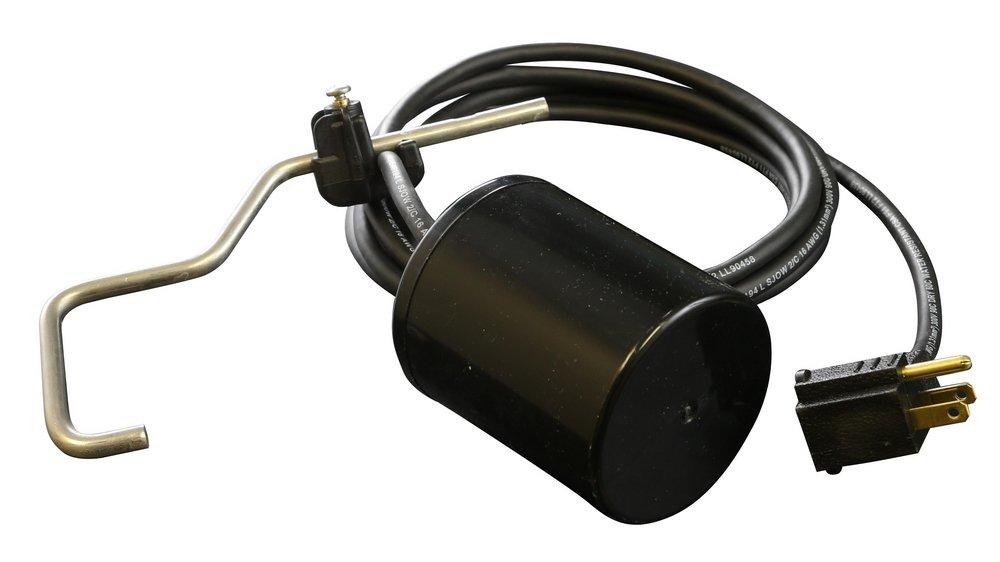

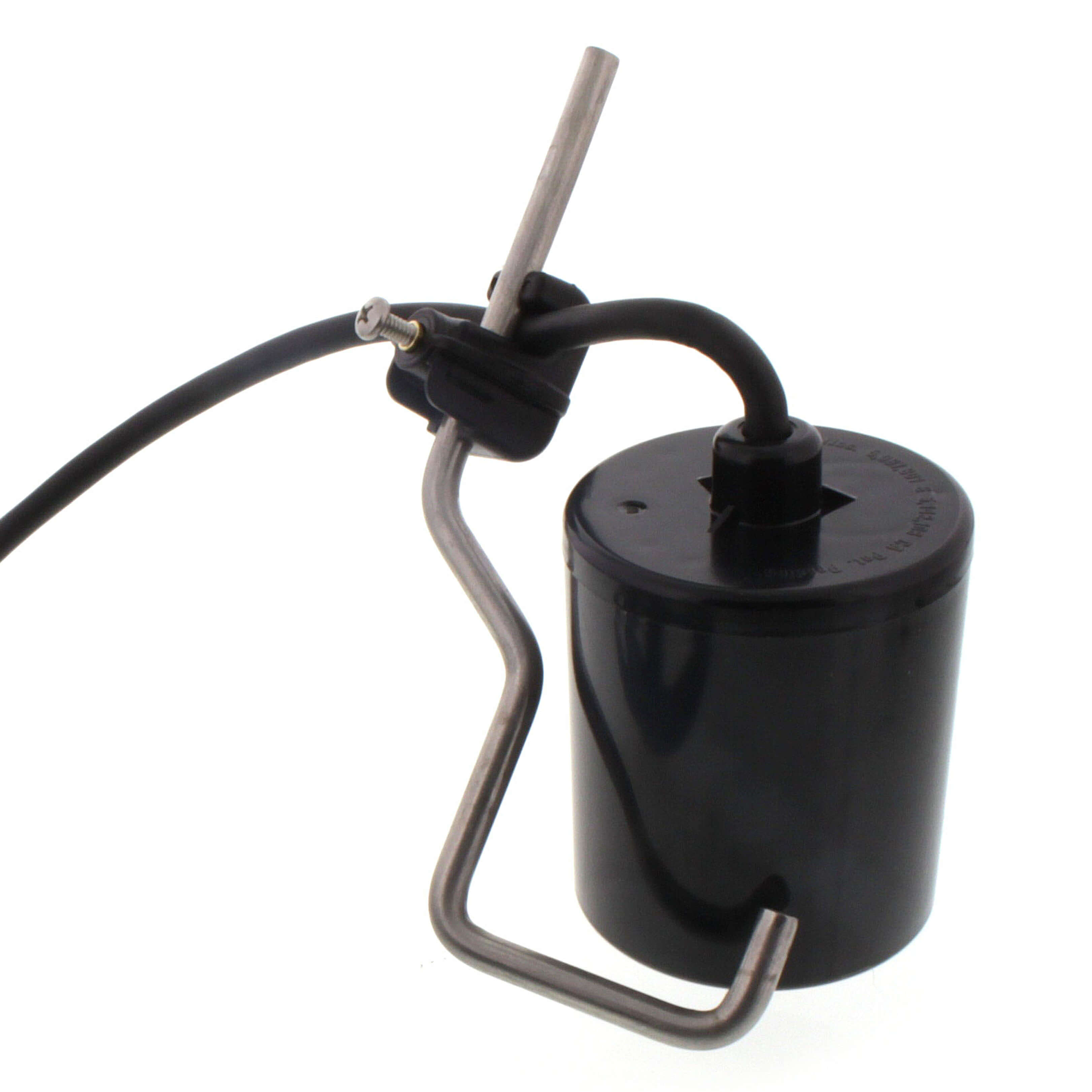

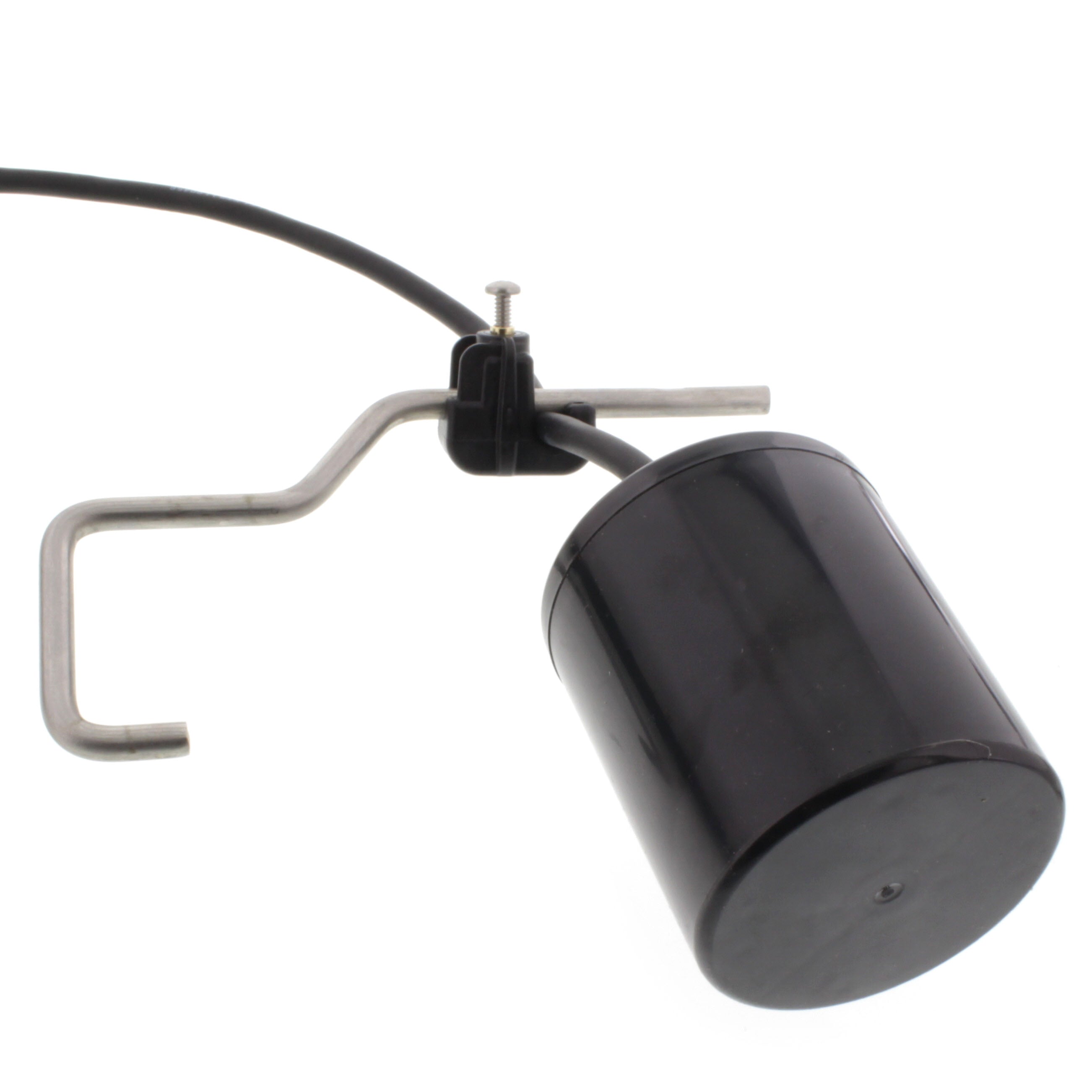

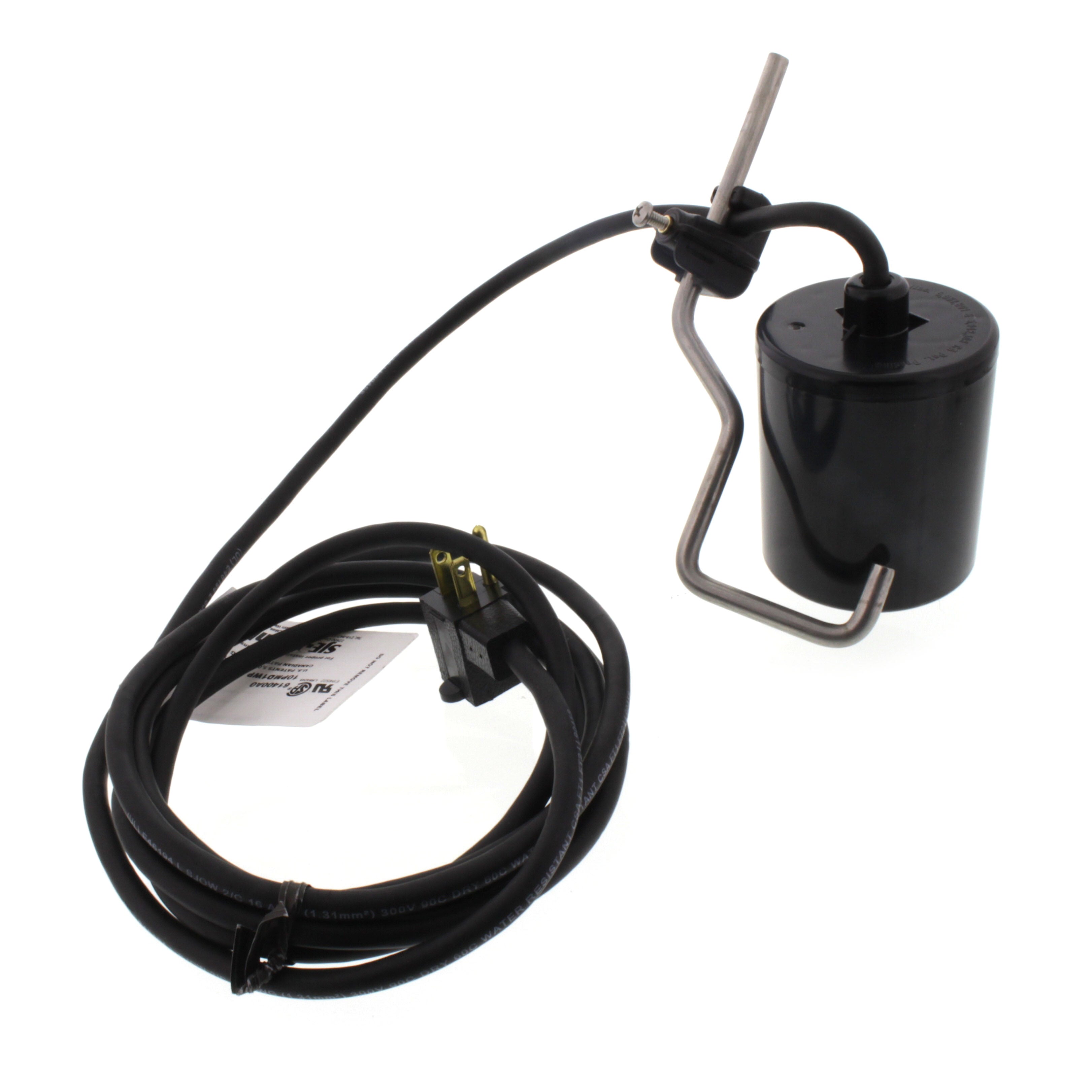

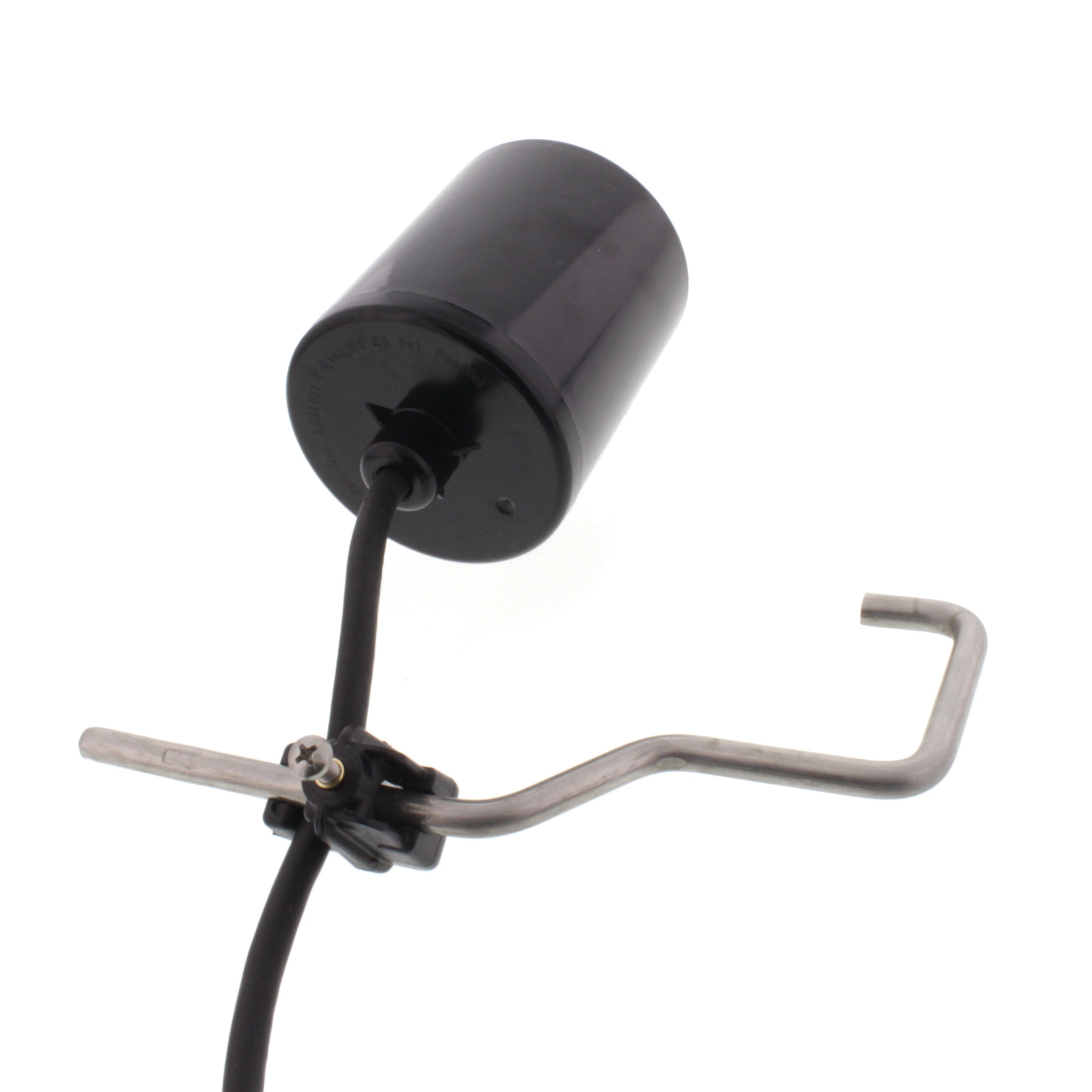

The Liberty Pumps K001155 float switch control assembly is designed for Liberty Pumps 404 drain pumps. This kit includes a float switch and is suitable as a replacement part for commercial and residential applications. The float is constructed of PVC and the mounting bracket is stainless steel.

• Float switch control assembly
• Designed for Liberty Pumps 404 drain pump
• Maximum liquid temperature of 140 Degrees F

Product Highlights

The Liberty Pumps float switch is a replacement part for pump 404. It features a tether float switch actuation and is CSA and UL compliant.

Product Information

Standard Information

• Brand: LIBERTY PUMPS
• Manufacturer Part Number: K001155
• Country of Origin: United States

Technical Specifications

• Part Number: LK001155
• MPN: K001155
• Brand: Liberty Pumps
• UOM: EACH
• Item No: 4241542
• Application [Features]: Replacement Part
• Amps: 13 A
• Item: Pump Accessory Kit
• On Point: 8 1/8 in Above Base
• Off Point: 3 1/4 in Above Base
• Float Dia.: 3 in
• Cord Length: 10 ft
• Float Length: 3 1/16 in
• For Use With: Pumps Up to 13A
• Product Type: Pump Accessory Kit
• Rated Voltage: 115V AC
• Float Material: PVC
• Contact Default: Normally Open
• Switch Actuation: Tether Float
• Agency Compliance: CSA, UL
• Max. Liquid Temp.: 140 Degrees F
• NEC Cord Designation: SJOW
• Electrical Connection: Wire Leads
• Maximum Tether Length: 4 1/2 in
• Minimum Tether Length: 3 in
• Mounting Bracket Material: Stainless Steel
• Application: Commercial, Residential
• Brand Model Compatibility: 404 -B37, 404 -B40, 404 -B51, 404 -B59, 404L -B37, 404L -B40, 404L -B51, 404L -B59, Model 404 -B35, Series 404
• Diameter: 3 in
• Height: 4 in
• Length: 12 in
• Material: Plastic, Stainless Steel
• Material Type: PVC
• Maximum Temperature: 140
• Power Source: AC, Electric
• Volts: 115V
• Type: Replacement Part
• Domestic/Import: Domestic
