Liberty Pumps IPD-24H Duplex Control Panel 120/208/240V (1 Phase 15-20 Amps No Direct Replacement)

Product Description

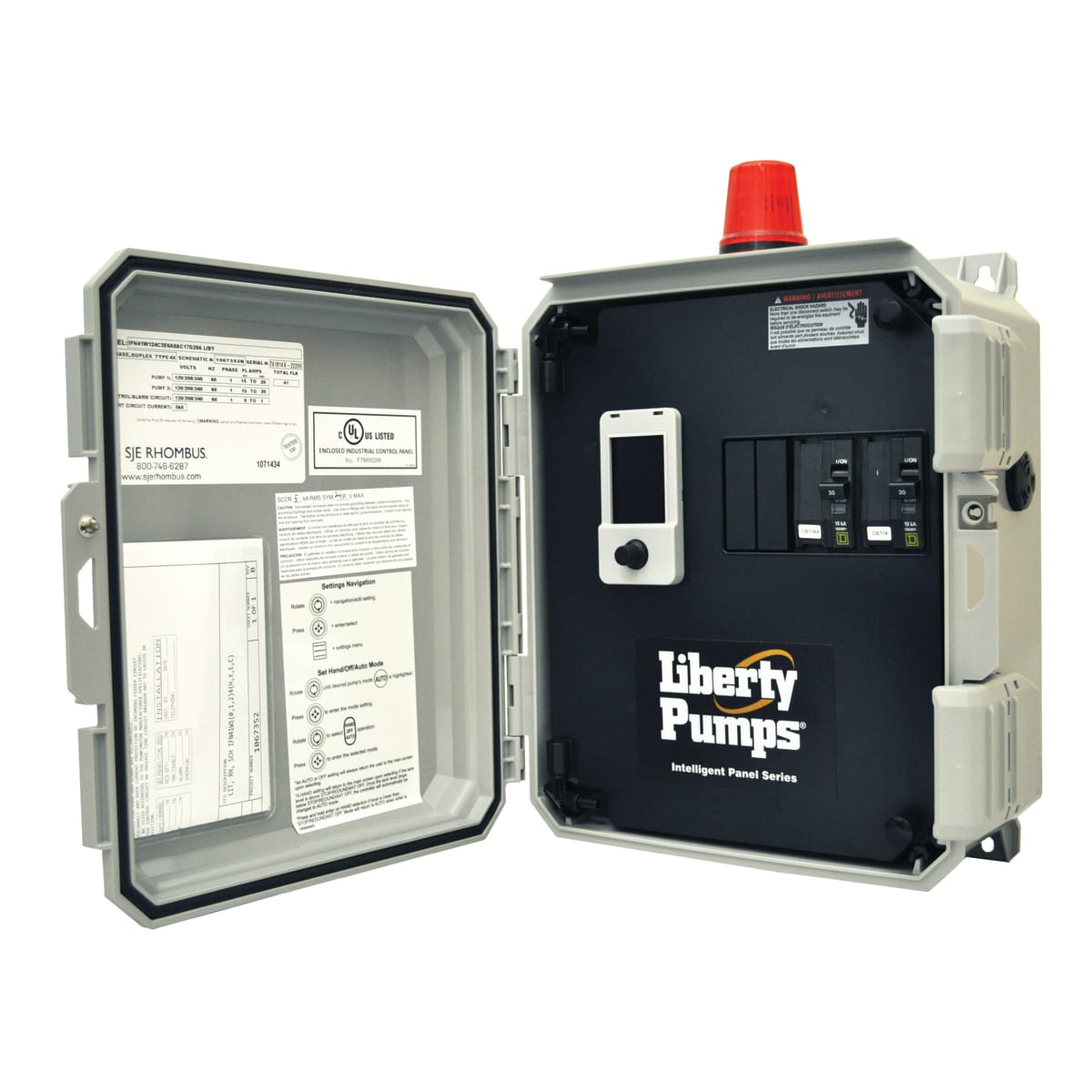

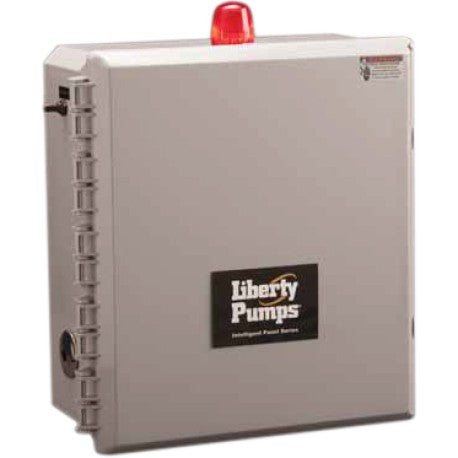

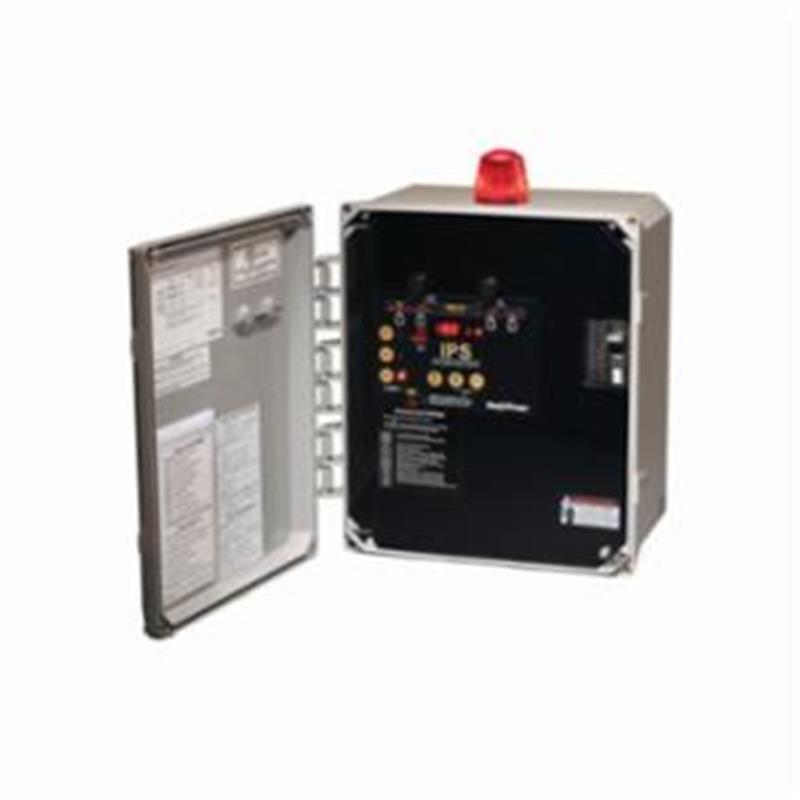

Liberty Pumps IPD-24H is an IPD-Series duplex control panel for sewage pump applications that provides single-phase 120/208/240V operation and is rated for full load amps of 15–20. The panel uses a NEMA 4X enclosure for indoor or outdoor mounting and supports float-less level sensing with a redundant alarm float. Control features include a touch pad for programming, a digital display for system monitoring, auxiliary contacts, and field-convertible dosing modes.

• NEMA 4X enclosure for indoor/outdoor installation and environmental protection
• Float-less level sensor with redundant alarm float; eliminates multiple wide-angle floats
• Touch pad programming, digital display, alarm beacon and horn, auxiliary contacts; field convertible for demand or timed dose

Product Highlights

120/208/240V single-phase duplex control, 15–20 A capacity, NEMA 4X enclosure, float-less sensing and programmable touch pad

Product Information

Standard Information

• Brand: LIBERTY PUMPS
• Manufacturer Part Number: IPD-24H
• Country of Origin: Domestic

Technical Specifications

• Brand: Liberty Pumps
• MPN: IPD-24H
• Model/Series: IPD-Series
• Product Type: Duplex Control Panel
• Input Voltage: 120/208/240V
• Phase: 1 Phase
• Full Load Amps: 15-20 A
• Enclosure Rating: NEMA 4X
• Application: Duplex control for pump systems; sewage pump applications
• Compatible Pumps: FL152M-2, FL202M-2 submersible effluent pumps
• Part Number: 455104
• UPC: 671812118940
• Features: Float-less level sensor, redundant alarm float, touch pad programming, digital display, alarm beacon and horn, auxiliary contacts, separate control and alarm fuses
• Documentation: IP-Series brochure and installation/operation manual
• Field Convertible: Demand dose or timed dose
• Inner Door: Inner panel door for increased safety
• Intended Market: Domestic
• Status: Discontinued (no direct replacement available)
