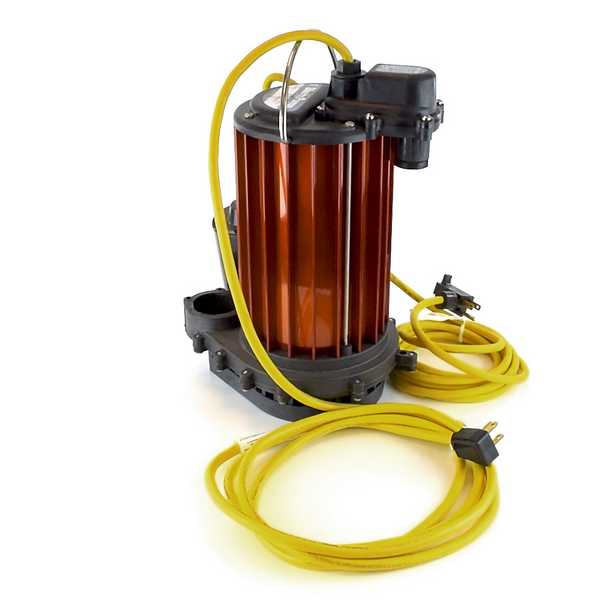

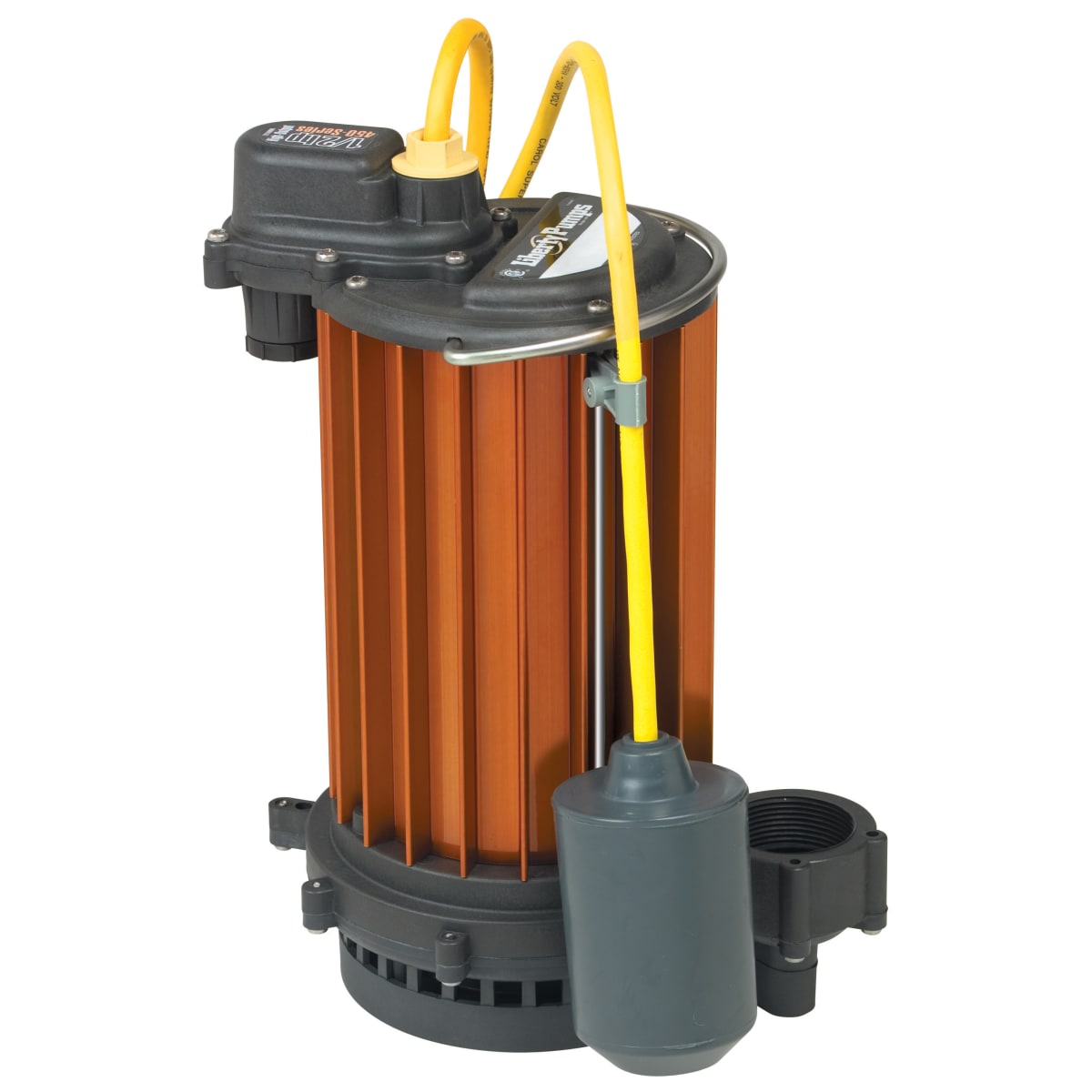

Liberty Pumps HT453 submersible high temp sump pump 1/2 hp 1 ph 115v 10 feet cord 1 1/2 inches discharge auto

Product Description

The Liberty Pumps HT453 is a high-temperature, automatic submersible sump pump with a 1/2 HP motor. Designed for hot water applications like boiler blow-down pits, condensate pits, and high-temperature water transfer, it features a wide-angle float with a series plug for manual operation. This pump can handle solids up to 3/4" and has a 1-1/2" FNPT discharge, operating at 115V.

• Vortex style impeller permits passage of solids without clogging.
• Fiberglass reinforced nylon and powder coated aluminum construction.
• Oil-filled, thermally protected motor with permanently lubricated bearings.

Product Highlights

Designed for hot water applications up to 180°F, featuring automatic operation with a wide-angle float switch and durable aluminum construction.

Product Information

Standard Information

• Brand: LIBERTY PUMPS
• Manufacturer Part Number: HT453
• Country of Origin: USA

Technical Specifications

• Category: Sump Pumps
• Operation: Automatic
• Horsepower: 1/2 HP
• Input Voltage: 115V
• Phase: 1
• Frequency: 60 Hz
• Current: 7.3 A
• Locked Rotor Amps: 16 A
• Cord Length: 10 ft
• Cord Designation: SJTW
• Cord Gauge/Conductor: 16/3
• Discharge Size: 1-1/2 in FNPT
• Discharge Connection Type: FNPT
• Discharge Gender: Female
• Discharge Standard: NPT
• Switch Type: Piggyback Tether Float
• Switch Actuation: Tether Float
• Switch On Point: 12 in
• Switch Off Point: 6 in
• Body Material: Aluminum
• Motor Housing Material: Aluminum
• Base Material: Fiberglass Reinforced Nylon
• Impeller Material: Engineered Polymer
• Impeller Design: Vortex
• Shaft Seal Material: Nitrile Rubber
• Shaft Seal Components: Ceramic, Buna N, Stainless Steel
• Max Solids Diameter: 3/8 in
• Max Liquid Temperature: 180 °F
• Thermal Overload Temperature: 284 °F
• Stator Winding Class: F
• Motor Type: PSC
• Motor Speed: 3,450 RPM
• Bearing Type: Ball
• Duty Cycle: Continuous
• Max Head: 34 ft
• Shutoff Head: 25 ft
• Flow Rate @ 5 Ft. Head: 49 GPM
• Flow Rate @ 10 Ft. Head: 43 GPM
• Flow Rate @ 15 Ft. Head: 39.0 GPM
• Flow Rate @ 20 Ft. Head: 32.0 GPM
• Flow Rate @ 25 Ft. Head: 23 GPM
• Flow Rate @ 30 Ft. Head: 11 GPM
• Min Sump Pit Diameter: 14 in
• Overall Dimensions: 9.6 x 12.5 x 9.6 in
• Overall Height: 12.5 in
• Body Diameter: 9.625 in
• Weight: 14 lbs
• Certifications: CSA/cUS
• Alarm Included: No
• Series: HT450-Series
• Media Type: Clear Water
• Power Source: Corded Electric
• Hazardous Location Class: Not Rated
• Application: Dewatering
• Installation Type: Submersible
• Industry Application: Residential
