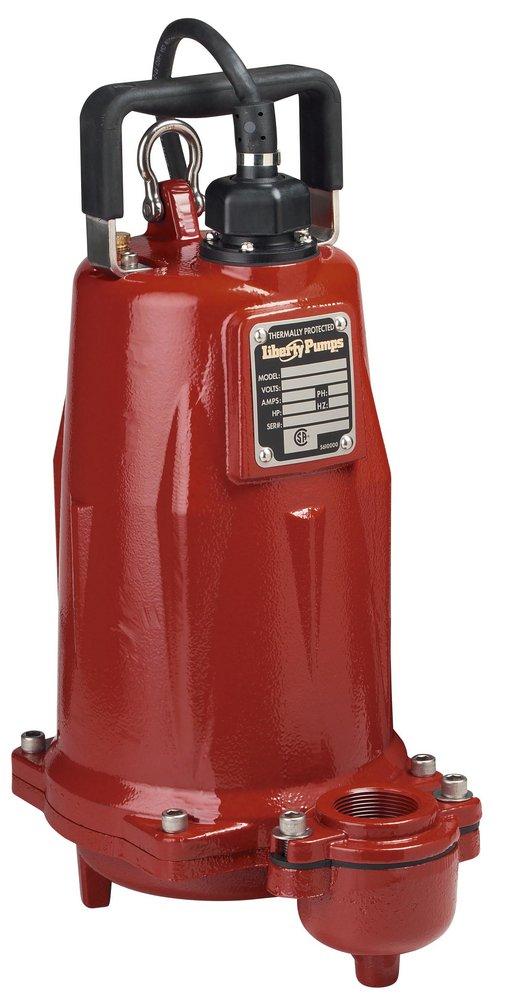

Liberty Pumps FL152M-2 FL150 Series 1-1/2 HP Effluent Pump

Product Description

The Liberty Pumps FL152M-2 is a reliable manual submersible effluent pump designed for high efficiency in various applications. This pump operates at one and a half horsepower and is equipped with a heavy-cast iron construction that ensures durability. The dual discharge options of one and a half inch and two inch FNPT allow flexibility in pipe connections. It is designed to handle solids up to three quarters of an inch, suitable for STEP systems, mound systems, and liquid waste transfer.

• 1.5 HP, 230V motor
• Dual discharge sizing: 1.5 FNPT and 2 FNPT
• Handles solids up to 3/4 inches

Product Highlights

The Liberty FL152M-2 features an automatic operation with a piggyback mechanical float switch for effective level control. Its dual shaft seals and cast iron impeller offer reliable performance.

Product Information

Standard Information

• Brand: Liberty Pumps
• Model Number: FL152M-2

Technical Specifications

• Horse Power: 1.5 HP
• Voltage Rating: 208-230V
• Maximum Head: 115 ft
• Cable Length: 25 ft
• Ampere Rating: 15A
• Width: 11-3/4 inches
• Height: 18-1/4 inches
• Discharge Size: 1.5 inch and 2 inch FNPT
• Shaft Material: 416 Stainless Steel
• Switch Type: Piggyback Mechanical Float
