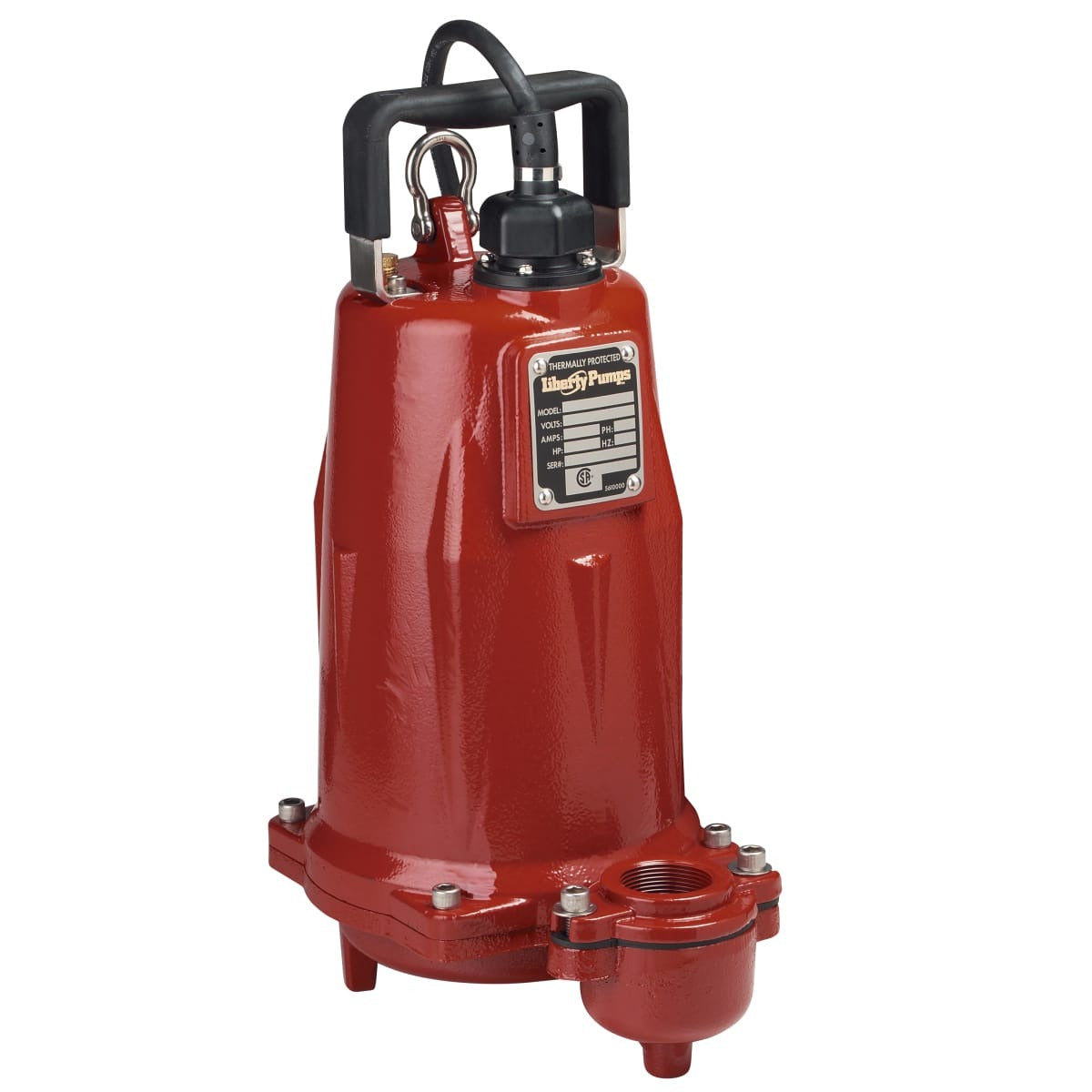

LIBERTY PUMPS Liberty Pumps FL104M-2 Effluent Pump 1 HP (1.5 in / 2 in Discharge, 25 ft Cord)
LIBERTY PUMPS Liberty Pumps FL104M-2 Effluent Pump 1 HP (1.5 in / 2 in Discharge, 25 ft Cord)
LIBERTY PUMPS Liberty Pumps FL104M-2 Effluent Pump 1 HP (1.5 in / 2 in Discharge, 25 ft Cord)
LIBERTY PUMPS Liberty Pumps FL104M-2 Effluent Pump 1 HP (1.5 in / 2 in Discharge, 25 ft Cord)

Liberty Pumps FL104M-2 Effluent Pump 1 HP (1.5 in / 2 in Discharge, 25 ft Cord)

Brand: LIBERTY PUMPS
SKU: FL104M-2
Availability: In Stock

Ships via freight in 1-3 business days
$1,557.63
$1,557.63
LTL Delivery

This product weighs 71 lb each and will be shipped via LTL carrier. A lift gate option will be added free of charge for your convenience.

HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

Liberty Pumps FL104M-2 is a 1 HP submersible manual effluent pump with a three-phase 440-480 V motor and a 25 ft quick-disconnect power cord. The cast iron unit uses a 2-vane semi-open impeller, handles solids up to 3/4 in, and provides up to 102 GPM at 5 ft head with a 90 ft shutoff head. It features dual shaft seals and a single-float mercury-free level control.

  • 1 HP, 3-phase motor rated 440-480 V with 25 ft quick-disconnect power cord
  • Cast iron construction with 2-vane semi-open impeller; handles up to 3/4 in solids and dual shaft seals
  • Dual-sized discharge 1.5 in / 2 in and adjustable single-float mercury-free level control; maximum 102 GPM @ 5 ft, 90 ft shutoff

Product Highlights

Manual submersible effluent pump for STEP, mound, and dewatering applications; 1 HP, 3-phase, 440-480 V, 25 ft cord, 1.5/2 in discharge, 3/4 in solids handling.

Product Information

Standard Information

  • Brand: LIBERTY PUMPS
  • Manufacturer Part Number: FL104M-2
  • Country of Origin: USA
Technical Specifications
Brand
Liberty Pumps
MPN
FL104M-2
Model/Series
FL100/150/200M (FL104M-2)
Category
Effluent Pump / Submersible effluent pump
Horsepower
1 HP
Phase
3-phase
Input Voltage
440-480 V
Frequency
60 Hz
Speed
3450 RPM
Operation Type
Manual
Cord Length
25 ft
Discharge Size
1.5 in / 2 in
Discharge Connection
FIP
Construction
Heavy cast iron (epoxy powder coat finish)
Impeller
2-vane semi-open cast iron impeller
Rotor Shaft Material
416 stainless steel
Shaft Seals
Upper carbon ceramic and lower Viton double lip (dual shaft seals)
Level Control
Single float, mercury-free (adjustable pumping range)
Solids Handling
3/4 in
Maximum Flow
102 GPM @ 5 ft head
Flow at 10 ft Head
100 GPM
Maximum Total Head
90 ft
Maximum Current
4.5 A (FLAGGED — likely not consistent with 440-480 V 1 HP motor; see notes)
Motor Design
Oil filled
Motor Insulation
Class B
Maximum Liquid Temperature
140 F
Application
Effluent, STEP systems, mound systems, liquid waste transfer, higher-head dewatering
