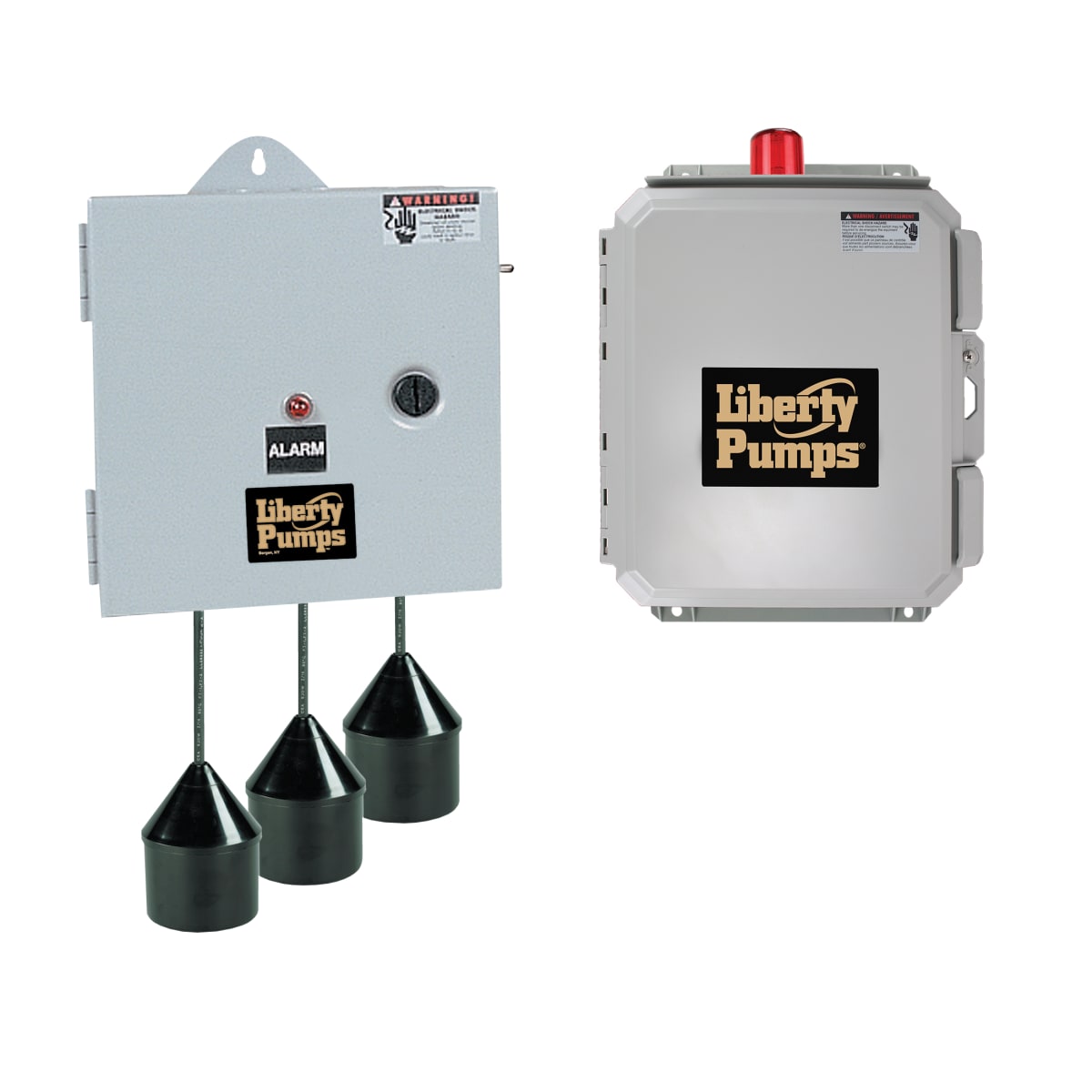

Liberty Pumps AE21H=4 Duplex Control Panel 115/230V NEMA 1 1 Phase 15 - 20 Amps

Product Description

The Liberty Pumps AE21H=4 is a Duplex Control Panel designed for use with LSG202 Grinder Pumps. This control panel operates on 115/230 volts and is rated for one phase. It is ideal for both residential and commercial applications.

• Operates with 15 to 20 full load amps
• Includes a four float system with automatic operation
• Equipped with visual and audible alarms

Product Highlights

This Duplex Control Panel features magnetic motor contactors and easy wiring terminal blocks. It supports a reliable alternating operation of two pumps, enhancing overall system efficiency.

Product Information

Standard Information

• Brand: Liberty Pumps
• Type: Duplex Control Panel

Technical Specifications

• Voltage: 115/230 volts
• Amps: 15 - 20
• Switch: Mercury-free pilot-duty float
• Enclosure Type: NEMA-1
• Shipping Dimensions: 18 x 15 x 7.75 inches
• Weight: 21 lbs
• Includes Floats: Yes, four pilot-duty floats included
