Liberty Pumps 5050W Duplex control for sump applications 115V (wide-angle floats) 5050W

Product Description

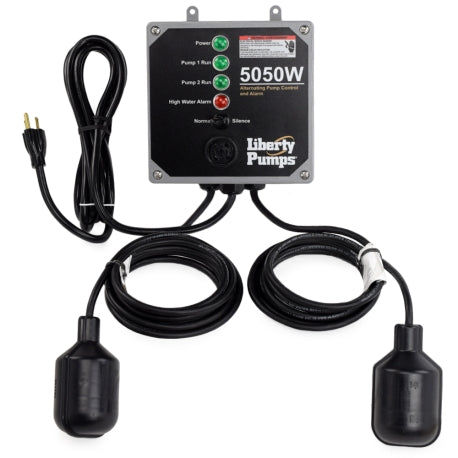

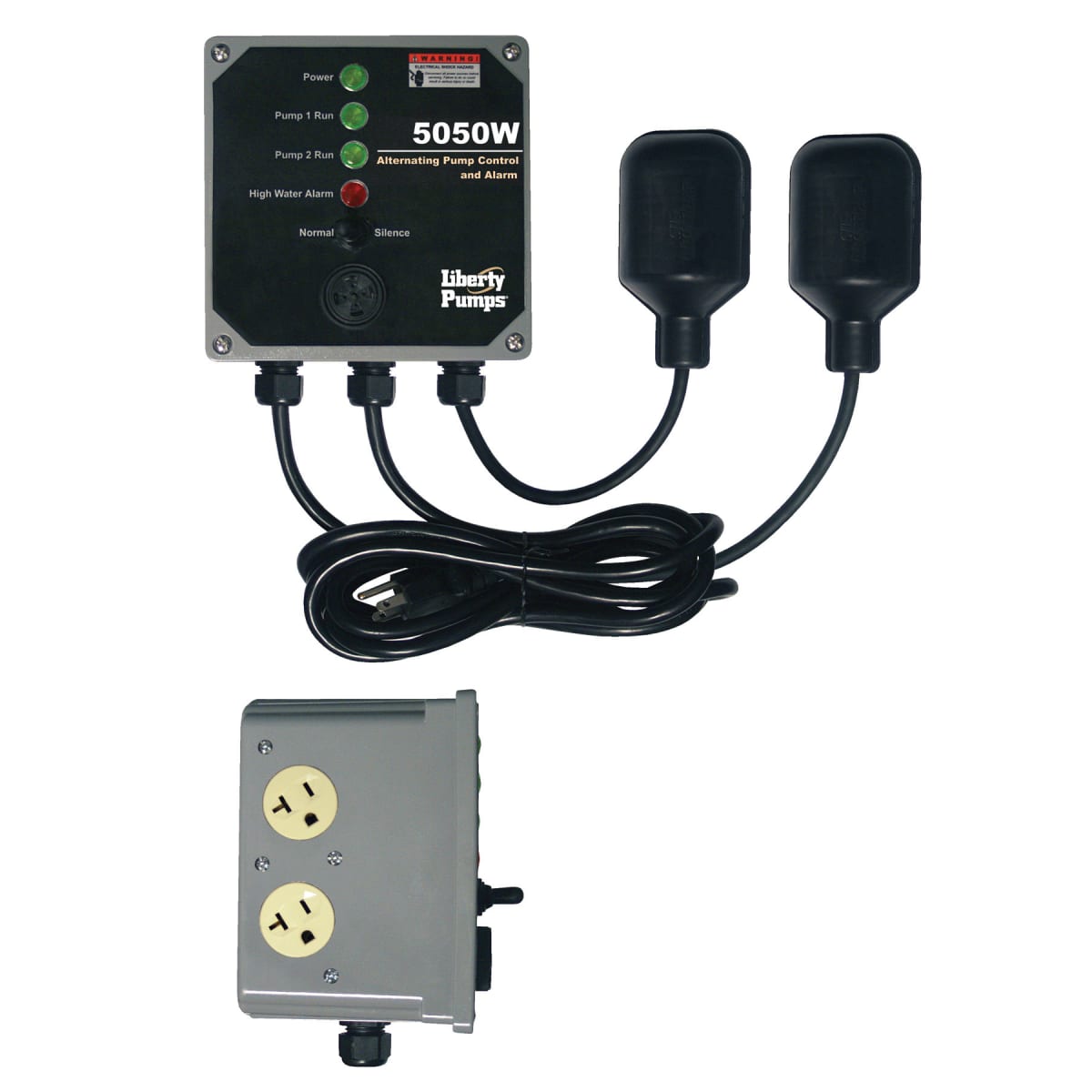

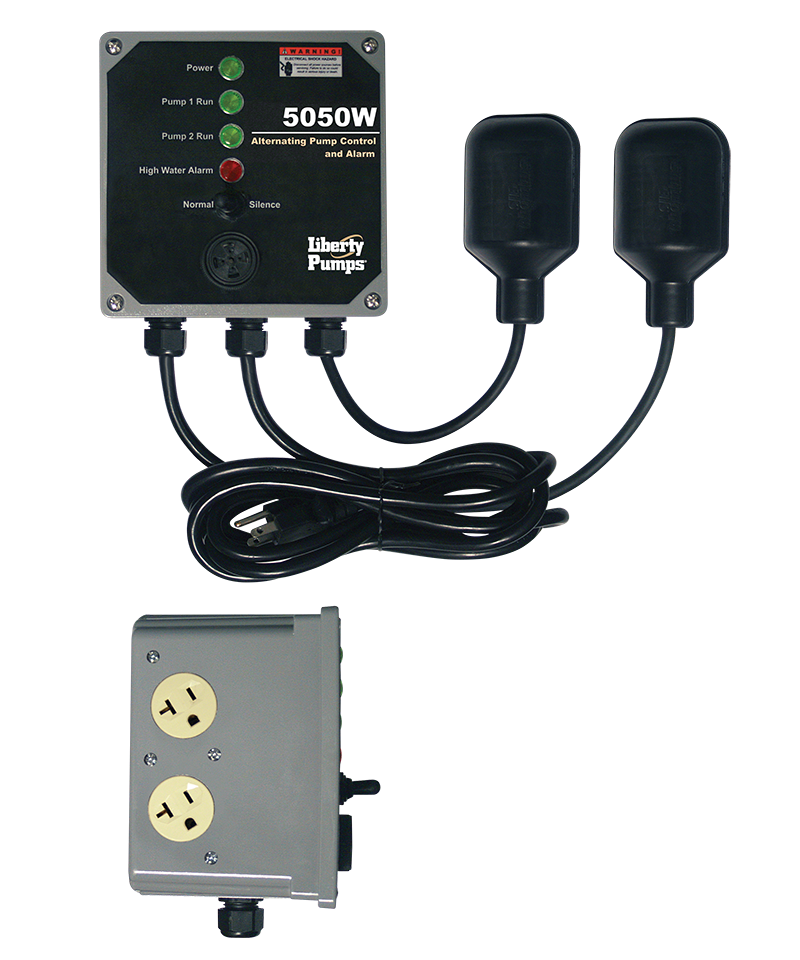

The Liberty Pumps 5050W is a duplex control for sump applications that provides alternating operation of two pumps. It is factory-wired with two wide-angle floats and a 10 ft power cord, and is rated for 115V indoor use in a NEMA 1 thermoplastic enclosure. The panel includes two 120VAC pump receptacles, green run and power indicators, and audible and visual alarm functionality; compatible with individual pumps up to 1 HP (15A).

• Alternating duplex control for two pumps, plug-in ready with two 120VAC receptacles; rated 115V for indoor use and compatible with pumps up to 1 HP (15A)
• Factory-wired wide-angle floats (On/Off and alarm) with 10 ft cords and included mounting hardware for up to 2" discharge pipe
• NEMA 1 thermoplastic enclosure with green power and pump-run indicators, audible and visual alarm, and externally mounted normal/silence switch; angled receptacles accept standard or right-angled plugs

Product Highlights

Duplex alternating control, 115V, two factory-wired wide-angle floats, 10 ft power cord, NEMA 1 indoor thermoplastic enclosure

Product Information

Standard Information

• Brand: LIBERTY PUMPS
• Manufacturer Part Number: 5050W

Technical Specifications

• Brand: Liberty Pumps
• MPN: 5050W
• Product Type: Duplex control (automatic)
• Control Type: Alternating duplex control
• Input Voltage: 115V
• Phase: Single phase
• Maximum Current: 15 Amps
• Maximum Horsepower per Pump: 1 HP (15A)
• Floats: Two wide-angle floats (On/Off and alarm), factory-wired
• Float Cord Length: 10 ft
• Power Cord Length: 10 ft (factory-installed)
• Enclosure Rating: NEMA 1 (indoor)
• Enclosure Material: Thermoplastic
• Receptacles: Two 120VAC NEMA receptacles
• Receptacle Angle: Angled receptacles accept standard or right-angled plugs
• Wiring: Plug-in ready (pumps plug into provided receptacles)
• Indicators: Green power-on and pump-run indicators
• Alarm: Audible and visual alarm
• Switches: Externally mounted normal/silence switch
• Compatibility: Compatible with individual pumps up to 1 HP (15A)
• Mounting Hardware: Includes float mounting hardware for up to 2" discharge pipe; worm gear clamps for up to 2.5" OD pipe
• Usage: Indoor-only
• Weight: 8 lb
