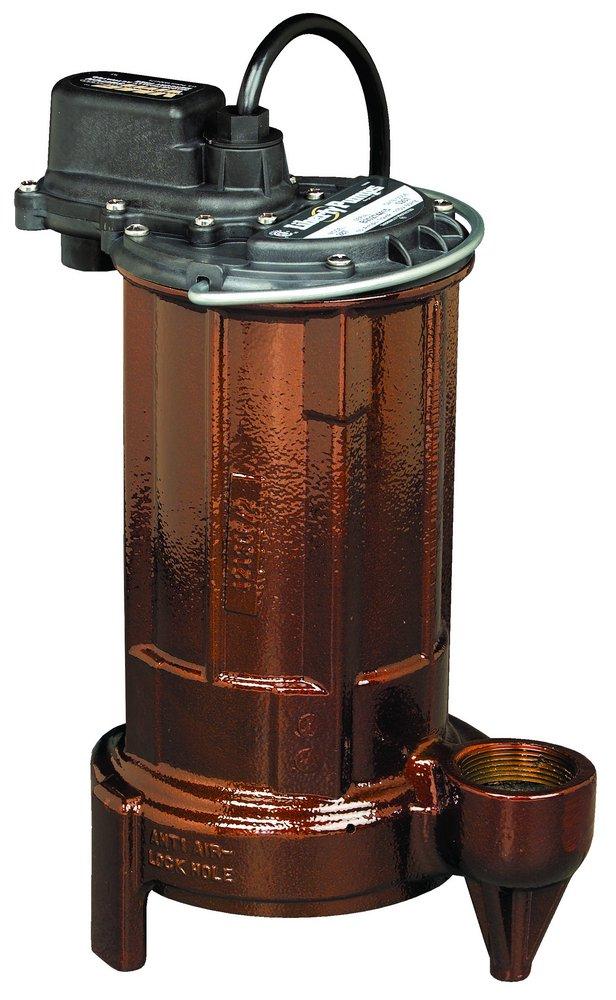

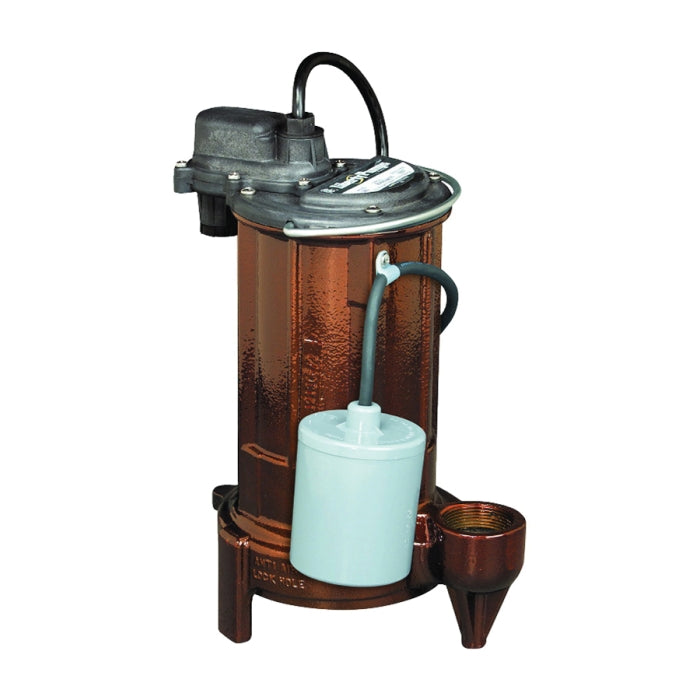

Liberty Pumps 290 Submersible Effluent Sump Pump 3/4 hp 115V

Product Description

The Liberty Pumps 290 is a submersible effluent sump pump designed for reliable performance in wastewater management. This pump operates at three-fourths horsepower and uses 115 volts. It is constructed from cast iron for durability and longevity.

• Designed for onsite wastewater systems.
• Handles solids up to three-fourths of an inch.
• Features a quick-disconnect power cord.

Product Highlights

The Liberty 290 series is ideal for liquid waste transfer and heavy-duty sump applications, providing efficient flow management.

Product Information

Standard Information

• Product Type: Submersible Effluent Pump
• Voltage: 115 V

Technical Specifications

• Power Rating: 3/4 hp
• Flow Rate: 78 gpm at five feet of total dynamic head
• Dimensions: six point three inches wide by nine and a half inches long by thirteen inches high
• Cord Length: ten feet
• Amperage Rating: 10.4 A Full Load, 24 A Locked Rotor
• Maximum Head: 48 ft
• Discharge Size: 1-1/2 inches
• Temperature Rating: 140°F
• Material: Cast Iron
