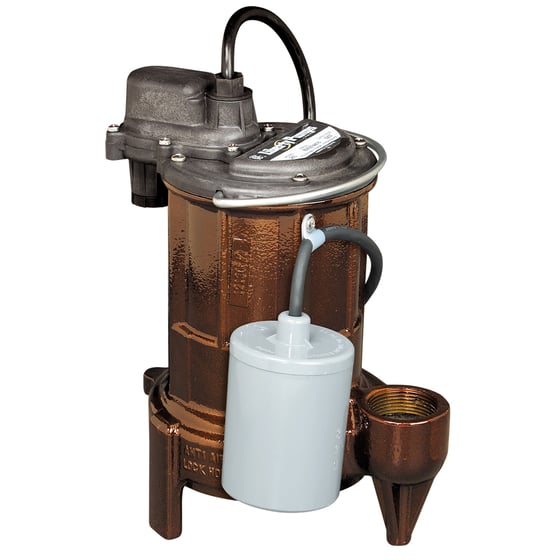

LIBERTY PUMPS 253-3 Submersible Sump Pump 1/3 HP with Piggyback Tether Float

Product Description

The Liberty Pumps 253-3 is a submersible sump pump with a 1/3 horsepower motor. It is built with a solid cast iron body to ensure durability and reliability in operation. This model features a piggyback tether float switch for automatic activation in small sump pits, making it effective for residential applications.

• Operates automatically with a reliable piggyback tether float switch.
• Handles solids up to 0.5 inches in diameter.
• Includes a ten-foot power cord for easy setup and replacement.

Product Highlights

This pump is suitable for sump and effluent applications, providing strong performance even in tough conditions.

Product Information

Standard Information

• Product Category: Sump Pump
• Base Material: Cast Iron

Technical Specifications

• Min Sump Basin Size: 14 inches
• Voltage: 120 Volt
• Running Amps: 5.2
• Power Cord Length: 10 feet
• Float Type: Piggy-Back Tether Switch
• GPH @ 0 feet: 3000
• GPH @ 5 feet: 2700
• GPH @ 10 feet: 2250
• GPH @ 15 feet: 1560
• Discharge Port Size: 1-1/2 inches
• Manual Override: Yes
• Horsepower: 0.33 HP
• Consumer Warranty: 3 years
• Dimensions: 9.5 inches x 6.5 inches x 10.7 inches
• Current: 5.2 Amps
• Operation: Automatic
• Speed: 3450 RPM
• Maximum Flow: 50 gpm
• Maximum Head: 23 feet
• Max Fluid Temperature: 140°F
