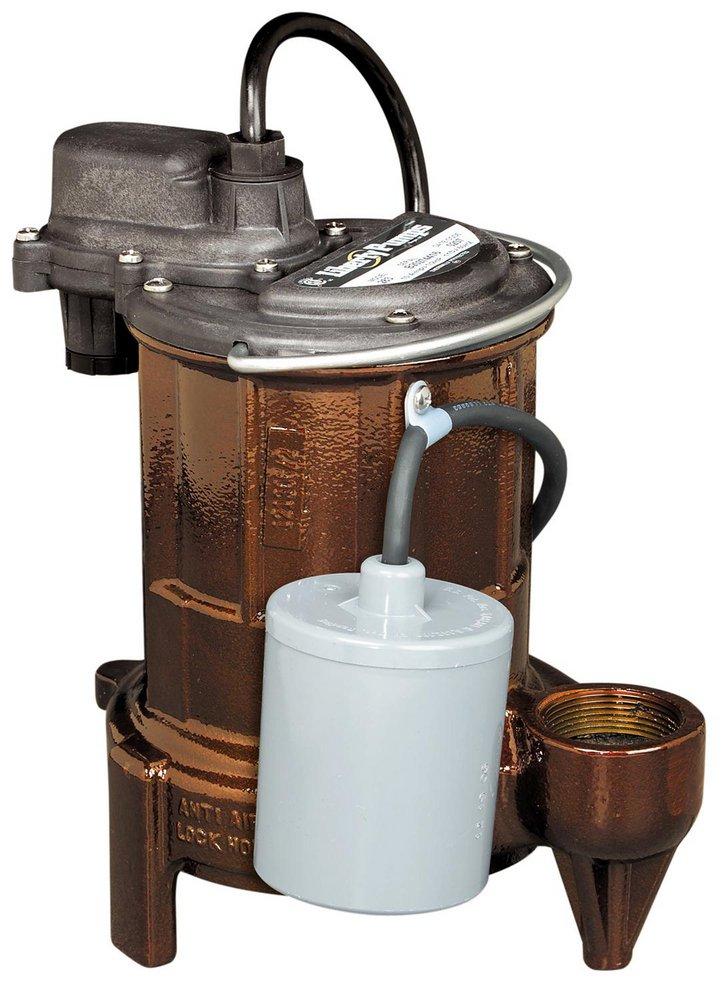

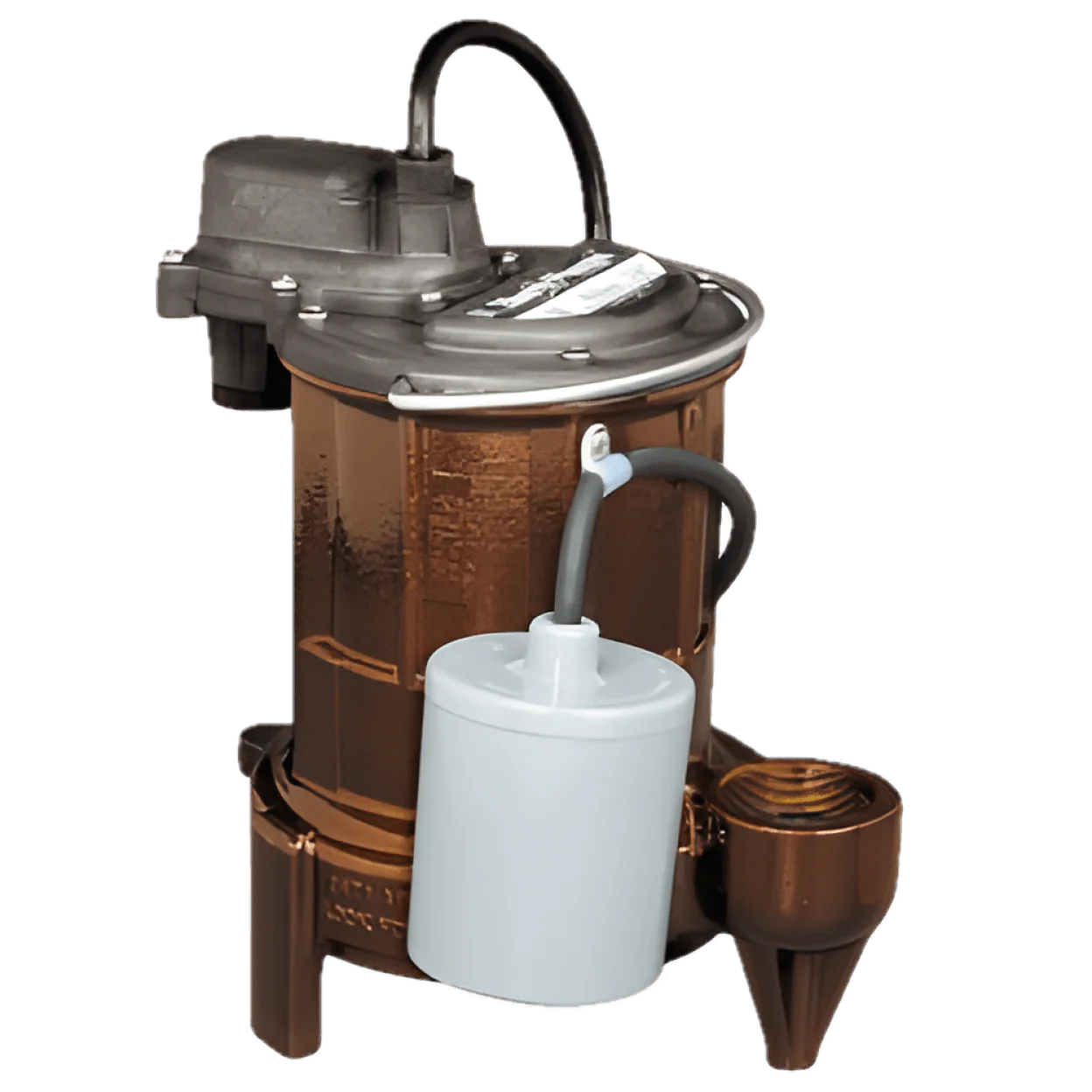

Liberty Pumps 253 250 Series 1/3 HP Automatic Effluent Submersible Pump

Product Description

The Liberty Pumps 253 is a 1/3 horsepower automatic submersible sump and effluent pump designed for reliable performance. With a robust one-piece cast iron body and epoxy powder coat finish, this pump is ideal for low-head effluent pumping applications. Its features include a wide-angle float switch, quick-disconnect power cord, and vortex style impeller for superior solids handling.

• Rugged 1/3 HP oil-filled motor
• Handles solids up to 1/2 inch
• Discharge size of 1-1/2 inches

Product Highlights

This pump is well-suited for residential and light commercial applications. It operates effectively in conditions requiring intermittent operation, such as basement dewatering.

Product Information

Standard Information

• Brand: Liberty Pumps
• MPN: 253

Technical Specifications

• Flow Rate: 44 gallons per minute
• Maximum Head: 23 feet
• Motor Type: 1/3 HP, 115 VAC
• Amperage Rating: 5.2 A
• Dimensions: 9-1/2 inches long x 6-1/2 inches wide x 10.7 inches high
• Cord Length: 10 feet
• Temperature Rating: 221 degrees Fahrenheit
• Material: Cast iron with polymer impeller
• Switch Type: Wide angle float - piggyback
• Warranty: 3 years limited
