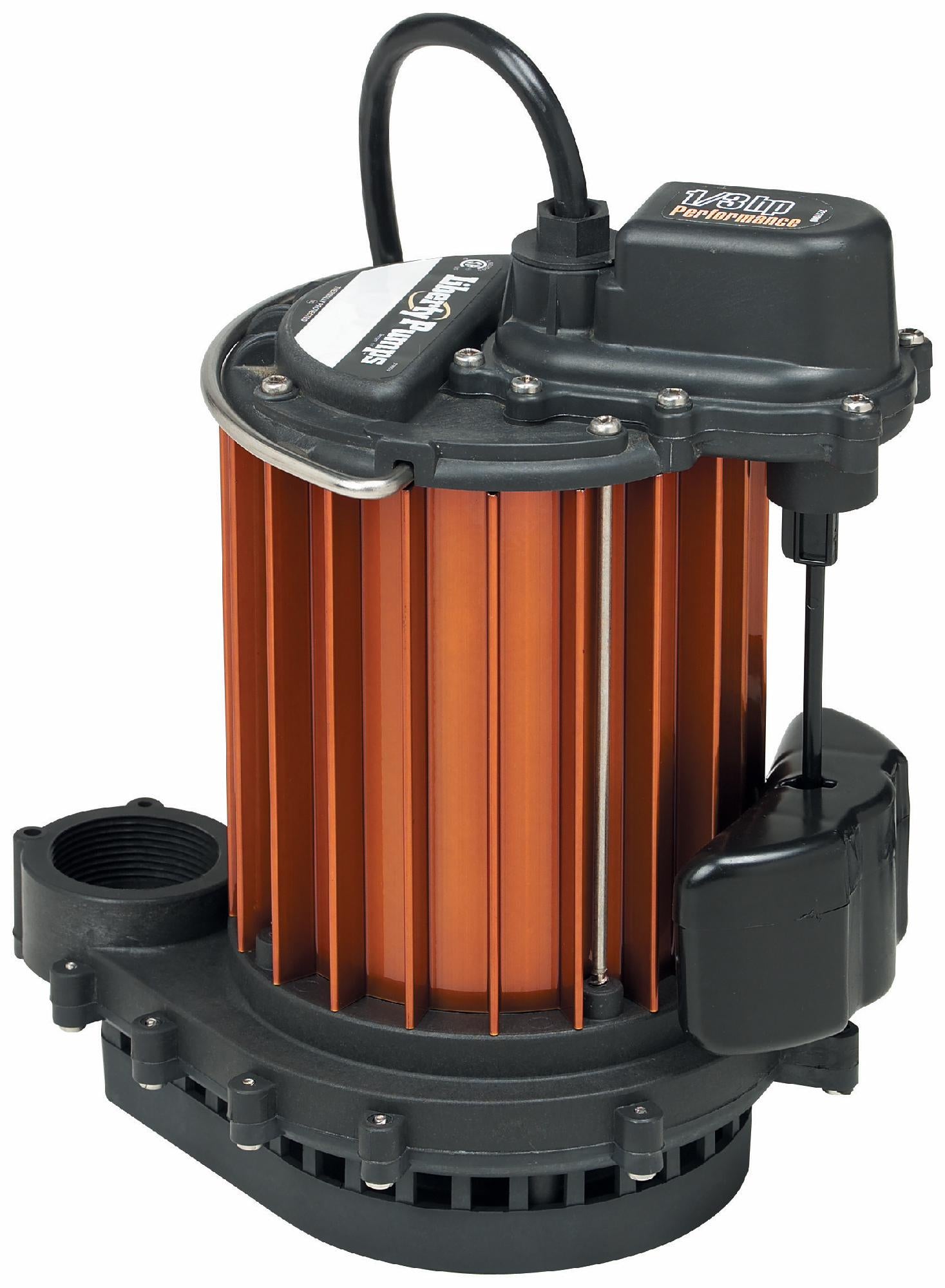

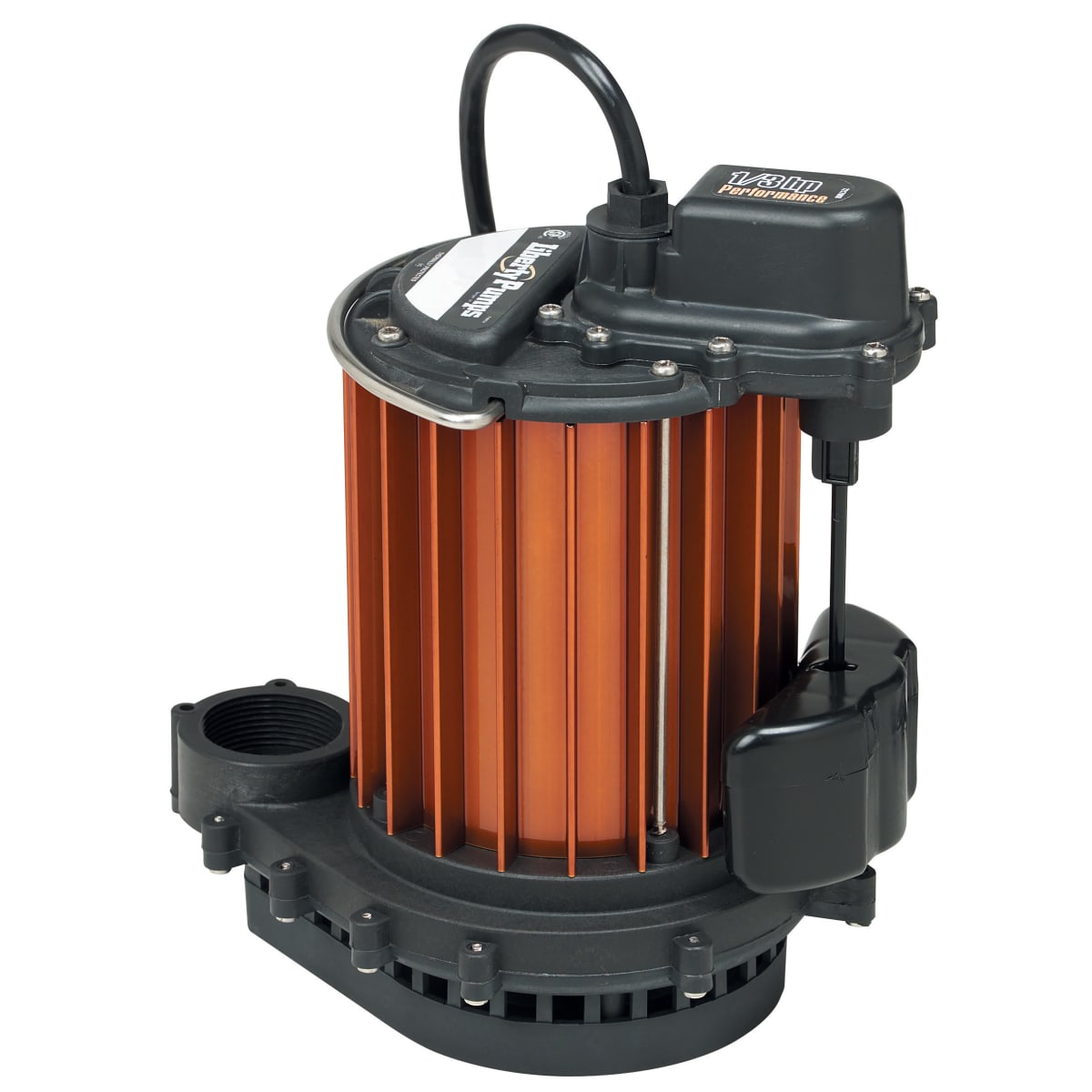

Liberty Pumps 237-2 1/3 Hp Submersible Sump Pump (25 ft Cord)

Product Description

Liberty Pumps 237-2 is a 1/3 hp submersible sump pump rated 115V with a VMF vertical magnetic float switch and a 25 ft quick-disconnect power cord. The unit features polypropylene and aluminum construction, a vortex-style impeller for solids handling, and a 1-1/2 inch discharge connection for standard sump installations.

• VMF vertical magnetic float switch for automatic operation in a 10 in minimum sump pit
• Vortex impeller permits solids up to 3/8 in and provides up to 37 GPM at 5 ft head
• Oil-filled hermetically sealed motor with thermal overload protection and permanently lubricated bearings

Product Highlights

1/3 HP, 115V automatic sump pump with VMF float, 1-1/2 in FNPT discharge, 25 ft quick-disconnect cord, handles solids to 3/8 in

Product Information

Standard Information

• Brand: LIBERTY PUMPS
• Manufacturer Part Number: 237-2
• Country of Origin: United States

Technical Specifications

• Brand: Liberty Pumps
• MPN: 237-2
• Model/Series: 230 Series
• Input Voltage: 115V
• Horsepower: 1/3 HP (0.33 HP)
• Amperage: 5.2 A
• Frequency: 60 Hz
• Motor Type: Oil-filled, hermetically sealed
• Thermal Protection: Yes
• Bearings: Permanently lubricated (upper and lower)
• Rotor Shaft Material: Stainless steel
• Construction / Materials: Polypropylene base; powder-coated aluminum housing; thermoplastic impeller; stainless steel fasteners
• Switch Type: Vertical magnetic float (VMF)
• Cord Length: 25 ft (quick-disconnect)
• Discharge Size: 1-1/2 in
• Discharge Connection Type: FIP / FNPT (female iron pipe / FNPT)
• Impeller Type: Vortex-style impeller
• Solids Handling: 3/8 in
• Maximum Flow: 37 GPM @ 5 ft head
• Maximum Head: 21 ft
• Flow Rate @ 10 ft: 30 GPM
• Flow Rate @ 15 ft: 18 GPM
• Flow Rate @ 20 ft: 4 GPM
• Maximum Fluid Temperature: 140 F
• Minimum Sump Pit Diameter: 10 in
• Off Point (Switch Actuation): 4 1/2 in
• Frequency of Revolutions: 3450 RPM
• Country of Origin: US
• UPC: 671812101980
