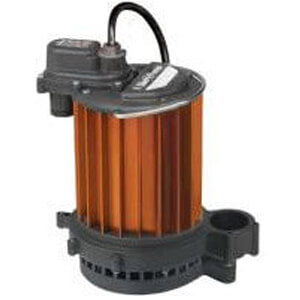

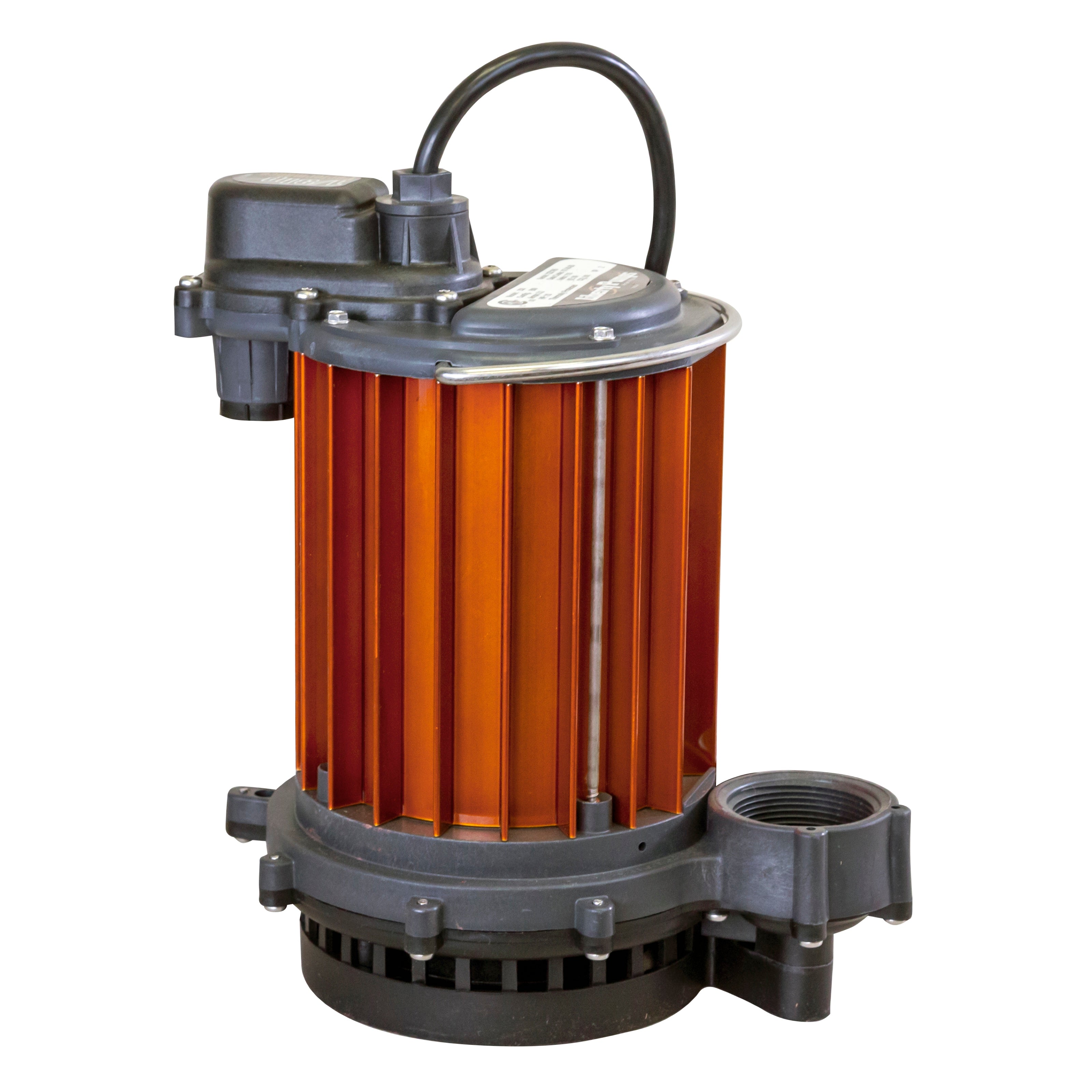

Liberty Pumps 230-2 Submersible Sump Pump 1/3 HP (1-1/2 inches Discharge / 25 ft Cord)

Product Description

Liberty Pumps 230-2 is a 1/3 HP manual submersible sump pump intended for residential sump applications, featuring a 1-1/2" FIP discharge and a 25 ft power cord. The pump uses a vortex-style thermoplastic impeller and stainless-steel shaft with an oil-filled, hermetically sealed motor and thermal overload protection. Removable base allows suction down to 1/8" and the unit handles up to 3/8" solids with a shutoff head of 21 ft and a flow of 37 GPM at 5 ft.

• Motor: 1/3 HP single-phase, 115V with oil-filled, hermetically sealed motor and thermal overload protection
• Construction: polypropylene components and powder coated aluminum motor housing with stainless-steel shaft and non-corrosive fasteners; vortex thermoplastic impeller
• Performance: 1-1/2" FIP discharge, 25 ft cord, continuous duty rating, handles up to 3/8" solids, 37 GPM at 5 ft head, 21 ft maximum head

Product Highlights

Manual 1/3 HP submersible sump pump with vortex impeller, 1-1/2" discharge, 25 ft cord, removable base for 1/8" suction, stainless-steel shaft and thermal overload protection.

Product Information

Standard Information

• Brand: LIBERTY PUMPS
• Manufacturer Part Number: 230-2

Technical Specifications

• Brand: Liberty Pumps
• MPN: 230-2
• Model / Series: 230 Series
• Type: Submersible sump pump
• Operation / Switch Type: Manual
• Input Voltage: 115V
• Motor Power: 1/3 HP
• Phase: Single phase
• Amps: 5.2 A
• Cord Length: 25 ft
• Discharge Size: 1-1/2"
• Connection Type: FIP (female iron pipe)
• Impeller Type: Vortex-style thermoplastic impeller
• Solids Handling: 3/8"
• Motor Housing: Powder coated aluminum (deep-finned)
• Construction Materials: Polypropylene and powder coated aluminum
• Shaft Material: Stainless steel
• Fasteners: Non-corrosive stainless steel
• Motor Type: Oil-filled, hermetically sealed motor with thermal overload protection
• Bearings: Permanently lubricated upper and lower bearings
• Suction Capability: Removable base allows suction down to 1/8"
• Flow at 5 ft Head: 37 GPM
• Maximum Head / Shutoff Head: 21 ft
• Duty Cycle: Continuous
• Temperature Rating: Intermittent 140�F (60�C); Continuous 104�F (40�C)
• Max RPM: 3450
• Frequency: 60 Hz
• Weight: 11.0 lb
