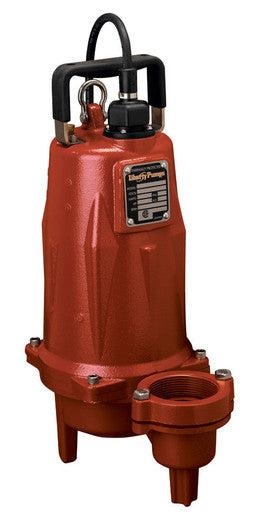

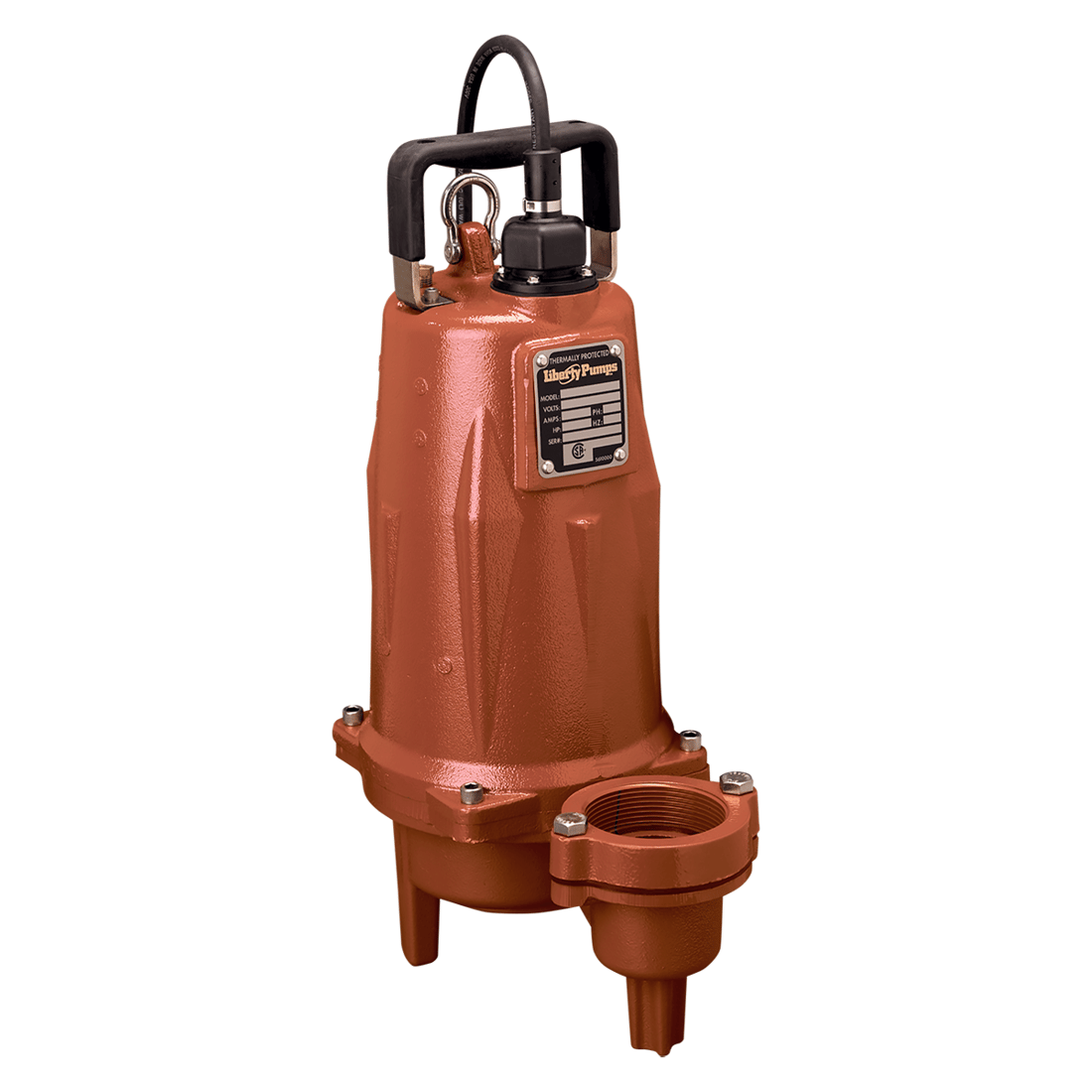

LIBERTY LEH203M3-2 2 HP 3-Phase Submersible Sewage Pump

Product Description

The Liberty LEH203M3-2 is a submersible sewage pump designed for high performance in demanding applications. This manual-operated pump features a robust 2 HP motor and operates on 208-230V, 3-phase power. The unit is built with a durable cast iron housing and stainless steel fasteners for longevity. It includes a three-inch flanged discharge and a quick-connect power cord for ease of use. The design incorporates a semi-open impeller that effectively handles solids.

• 2-vane, semi-open impeller for efficient solids handling.
• Constructed with cast iron housing for durability.
• 3-inch flanged discharge for easy connection.

Product Highlights

This pump is well-suited for residential and commercial sewage applications, offering reliable operation with a maximum flow rate of 215 gallons per minute. With a maximum head of eighty-three feet and the ability to handle solid materials up to two inches, this pump is ideal for various environments.

Product Information

Standard Information

• Brand: Liberty
• Manufacturer Part Number: LEH203M3-2

Technical Specifications

• Series: LEH200
• Product Type: Sewage pump
• Application: Sewage
• Operation: Manual
• Horsepower: 2 HP
• Input Voltage: 208-230 Volts
• Phase: 3
• Frequency: 60 Hz
• Speed: 3450 RPM
• Volute Material: Gray iron
• Impeller Type: 2 vane, closed
• Discharge Connection: 3 flanged
• Maximum Flow: 215 GPM
• Maximum Head: 83 ft
• Maximum Solids Handling: 2 inches
• Cord Length: 25 ft
• Maximum Fluid Temperature: 140°F
• Output Current: 15
• Height: 18.9 inches
• Width: 12.6 inches
• Weight: 64 lbs
• Minimum Basin Diameter: 18 inches
• Minimum Basin Depth: 24 inches
• Automatic Shut-Off: No
• Built-In Grinder: No
• CSA Certified: CSA 22.2 No. 108
• Coating: Epoxy, Powder Coated
• Discharge Configuration: Horizontal
• End Connection 1: FNPT
• End Connections: FNPT
• Impeller: Two vane
• Length: 14.25 inches
• Material: Cast Iron
• Pump Body Material: Cast Iron
• Pump Motor Type: Hermetically Sealed
• Pump Mounting: Free Standing
• Pump Stage: 1
• UL Listed: UL 778
