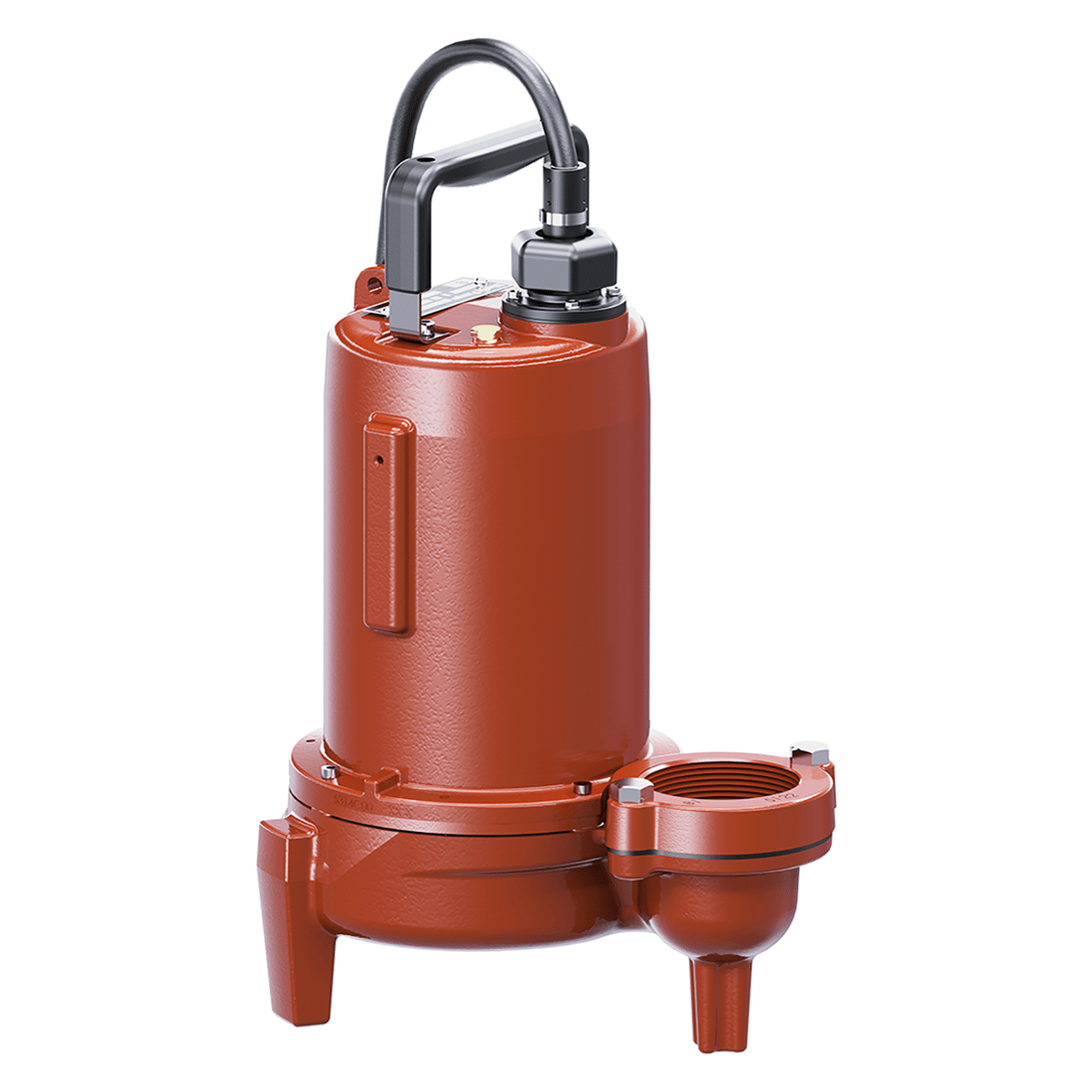

Liberty LEH102M3 Manual Submersible Sewage Pump 1 HP

Product Description

The Liberty LEH102M3 is a manual submersible sewage pump, designed specifically for residential sewage applications. With a one horsepower motor, this pump efficiently moves waste with a maximum flow rate of 197 gallons per minute and a maximum head of fifty-three feet. It can manage solids up to two inches in diameter.

• Manual operation sewage pump.
• Features a two-vane, semi-open impeller for effective performance.
• Equipped with a ten-foot power cord for versatility in installation.

Product Highlights

This sewage pump is suitable for various residential sewage needs, providing high efficiency and solid handling capability.

Product Information

Standard Information

• Brand: Liberty
• MPN: LEH102M3

Technical Specifications

• Series: LEH100
• Type: Sewage pump
• Operation: Manual
• Horsepower: 1 HP
• Input Voltage: 230 Volts
• Phase: 1
• Frequency: 60 Hz
• Speed: 3450 RPM
• Volute Material: Gray iron
• Impeller Type: 2 vane, semi-open
• Discharge Connection: 3 flanged
• Maximum Flow: 197 GPM
• Maximum Head: 53 ft
• Maximum Solids Handling: 2 inches
• Cord Length: 10 ft
• Maximum Fluid Temperature: 140°F

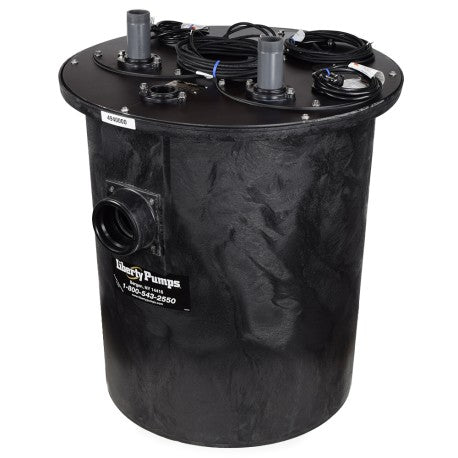

• Basin Size: 30 inches Wide x 36 inches Deep
• Basin Capacity: 110 gallons
• Control Panel: AE21L=3 model
• Floats: 3 float switches pre-installed
• Connections: Two 3 FNPT Discharge, 3 FNPT Vent, 4 Inlet
• Approx Weight: 261 lbs
