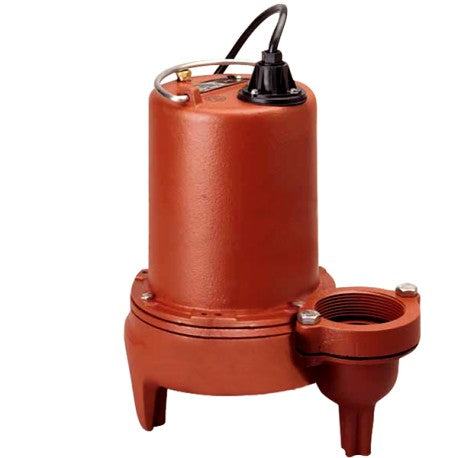

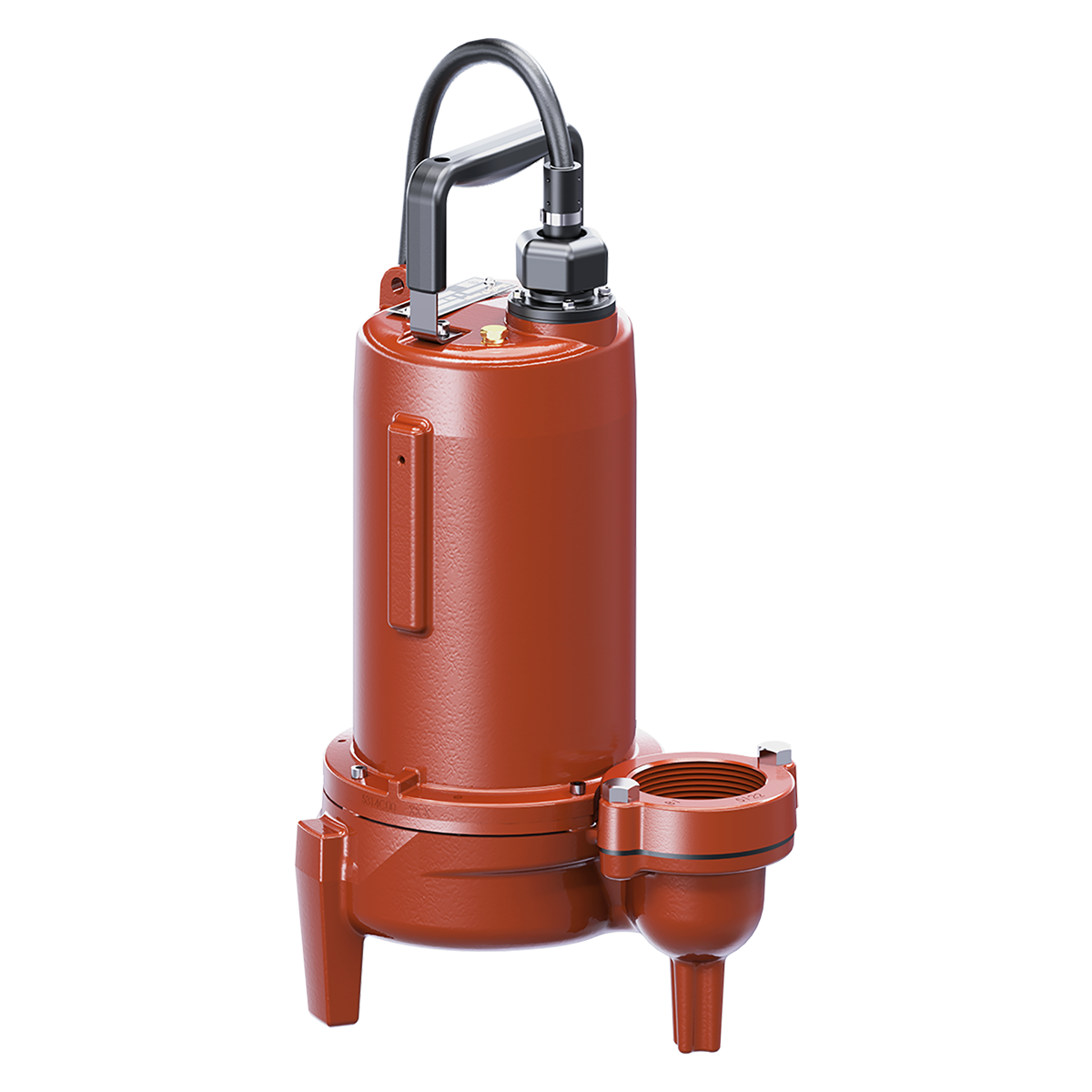

Liberty LE102M3 LE100 Series 1 HP Manual Submersible Sewage Pump

Product Description

The Liberty LE102M3 is a manual submersible sewage pump ideal for various sewage applications. This pump features a three-inch flanged discharge, designed to effectively manage solid waste. It is made from durable cast iron housing and volute, complemented by stainless steel fasteners. The two-vane, semi-open impeller allows for handling solids up to two inches in diameter, making it suitable for demanding environments.

• Features a three-inch flanged discharge.
• Handles solids up to two inches in diameter.
• Constructed with cast iron housing and stainless steel fasteners.

Product Highlights

The Liberty LE102M3 efficiently pumps sewage while ensuring long-lasting reliability. This pump requires a separate, approved pump control device for automatic operations.

Product Information

Standard Information

• Brand: Liberty
• Manufacturer Part Number: LE102M3

Technical Specifications

• Series: LE100
• Product Type: Sewage pump
• Application: Sewage
• Operation: Manual
• Horsepower: 1 HP
• Input Voltage: 208-230 Volts
• Phase: 1
• Frequency: 60 Hz
• Speed: 1725 RPM
• Volute Material: Gray iron
• Impeller Type: 2 vane, semi-open
• Maximum Flow: 190 GPM
• Maximum Head: 39 ft
• Maximum Solids Handling: 2 inches
• Cord Length: 10 ft
• Maximum Fluid Temperature: 140°F
• Discharge: 3 FNPT Flanged
• Shut-off Head: 36 ft
• Amps: 8
• Height: 14.1 inches
• Width: 12.6 inches
• Weight: 64 lbs.
• Minimum Basin Diameter: 18 inches
• Minimum Basin Depth: 24 inches
