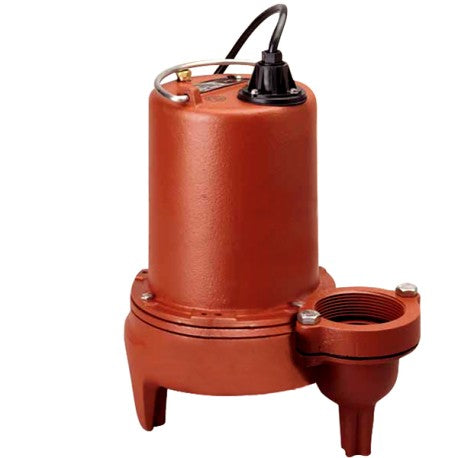

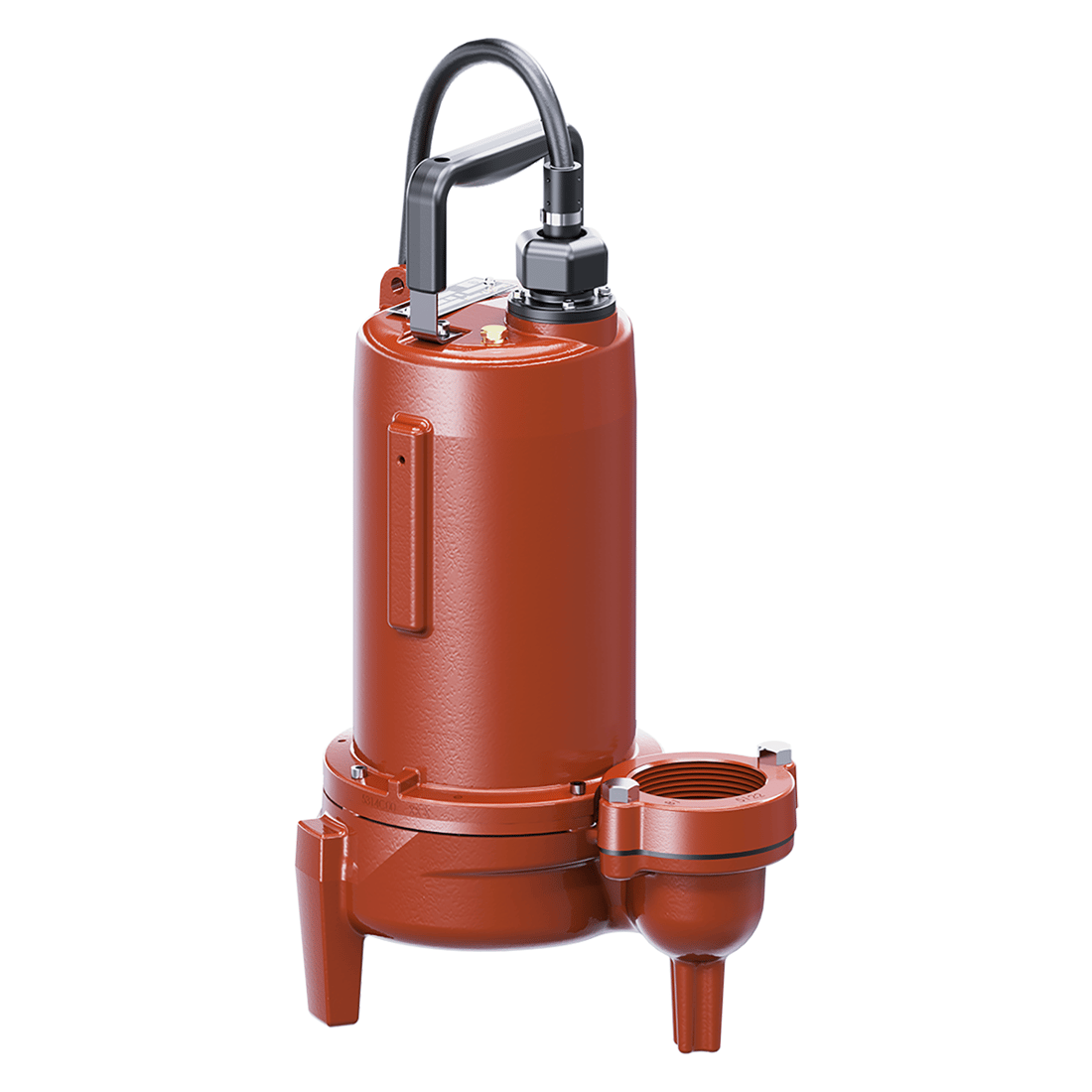

Liberty LE102M2-5 Manual Submersible Sewage Pump

Product Description

The Liberty LE102M2-5 is a manual submersible sewage pump designed for effective sewage management. It features a one horsepower motor and a two-inch flanged discharge. Built with heavy cast iron and an epoxy powder coat finish, it ensures long-lasting performance. This pump can efficiently handle solids up to two inches in diameter. Note that a separate approved pump control device is necessary for automatic operation.

• Includes a two-inch flanged discharge
• Handles solids up to two inches in diameter
• Constructed with durable cast iron and stainless steel fasteners

Product Highlights

This sewage pump is suited for various sewage applications and provides reliable operation in critical situations.

Product Information

Standard Information

• Brand: Liberty
• MPN: LE102M2-5

Technical Specifications

• Series: LE100
• Product Type: Sewage pump
• Operation: Manual
• Horsepower: 1 HP
• Voltage: 208-230 Volts
• Phase: 1
• Frequency: 60 Hz
• Speed: 1725 RPM
• Discharge Connection: 2 FNPT Flanged
• Maximum Flow: 190 GPM
• Maximum Head: 39 ft
• Maximum Solids Handling: 2 inches
• Cord Length: 10 ft
• Maximum Fluid Temperature: 140°F
• Height: 14.1 inches
• Width: 12.6 inches
• Weight: 64 lbs
• Minimum Basin Diameter: 18 inches
• Minimum Basin Depth: 24 inches
• Volute Material: Gray iron
• Impeller Type: 2 vane, semi-open
