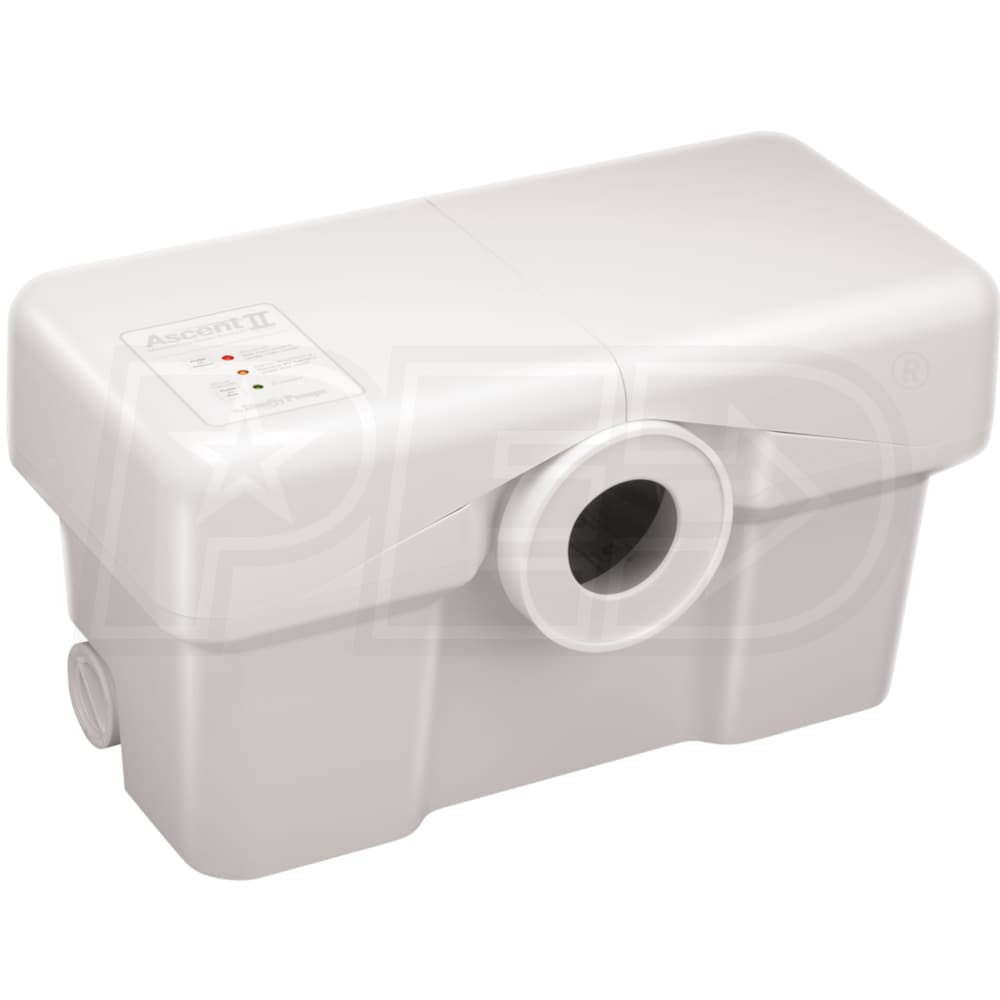

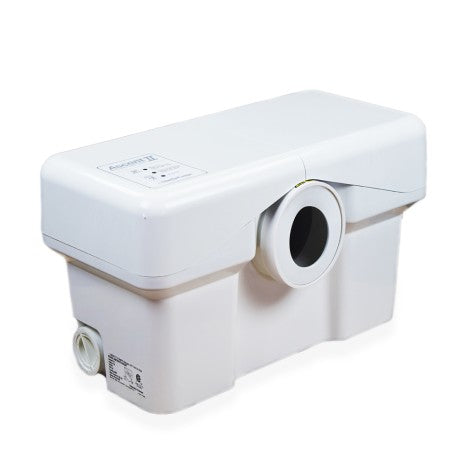

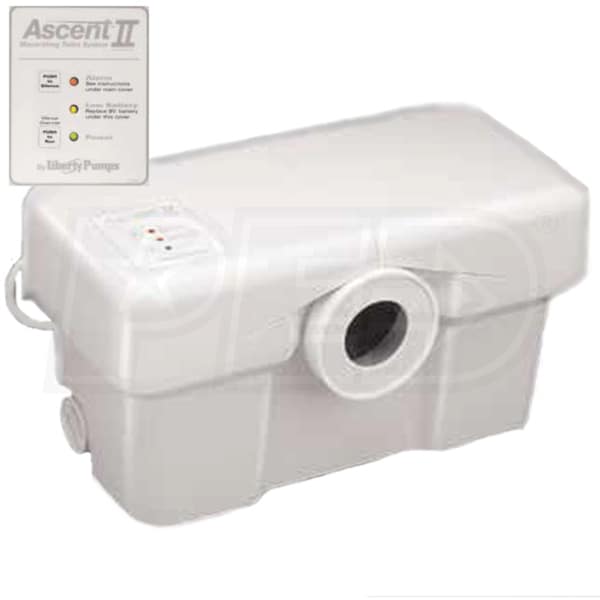

LIBERTY ASCENTII-MUW Ascent II Macerator System

Product Description

The LIBERTY ASCENTII-MUW is a macerator system ideal for bathroom additions and remodeling tasks. This system effectively pumps wastewater up to twenty-five feet vertically and one hundred fifty feet horizontally. It accepts multiple connections, including a toilet, sink, tub, or shower. Key features include a one-half horsepower macerator pump with stainless steel blades and an electronic solid-state switch. The unit also features a built-in alarm with a nine-volt battery backup and an LED display indicating system status.

• Equipped with a 1/2 HP macerator pump featuring stainless steel blades.

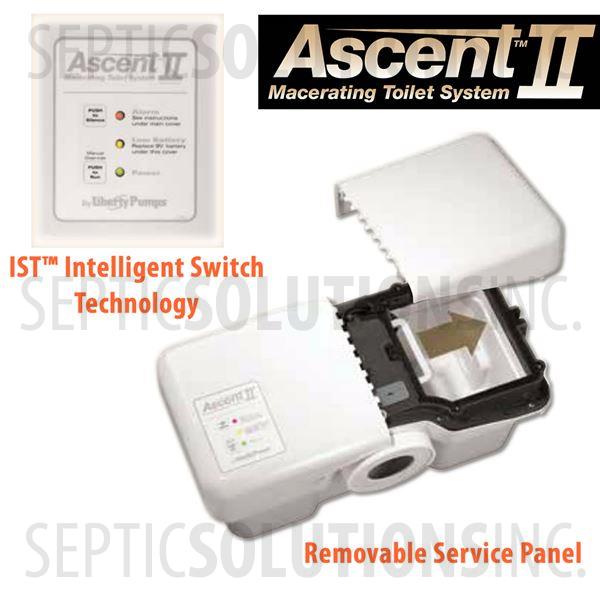

• Includes built-in alarm with 9V battery backup and LED display.
• Accepts multiple connections for a complete bathroom setup.

Product Highlights

Product Information

Standard Information

• Brand: LIBERTY
• MPN: ASCENTII-MUW

Technical Specifications

• Horsepower: 0.5 HP
• Input Voltage: 120 Volt
• Current: 7.9 Amps
• Frequency: 60 Hz
• Max Head: 36 Feet
• Flow Rate: 2400 gph
• Discharge Port Size: 1 Inch
• RPM: 3450
• Power Cord Length: 8 Feet
• Alarm: Yes
• Thermal Protection: Yes
• Tank Material: ABS
• Cutter Blades: Stainless Steel
• Maximum Fluid Temperature: 104 F
• Product Length: 20 Inches
• Product Width: 10 Inches
• Product Height: 10.875 Inches
• Weight: 22 Pounds
• Float Type: Electronic
• Wi-Fi enabled: No
• Discharge Configuration: Horizontal
