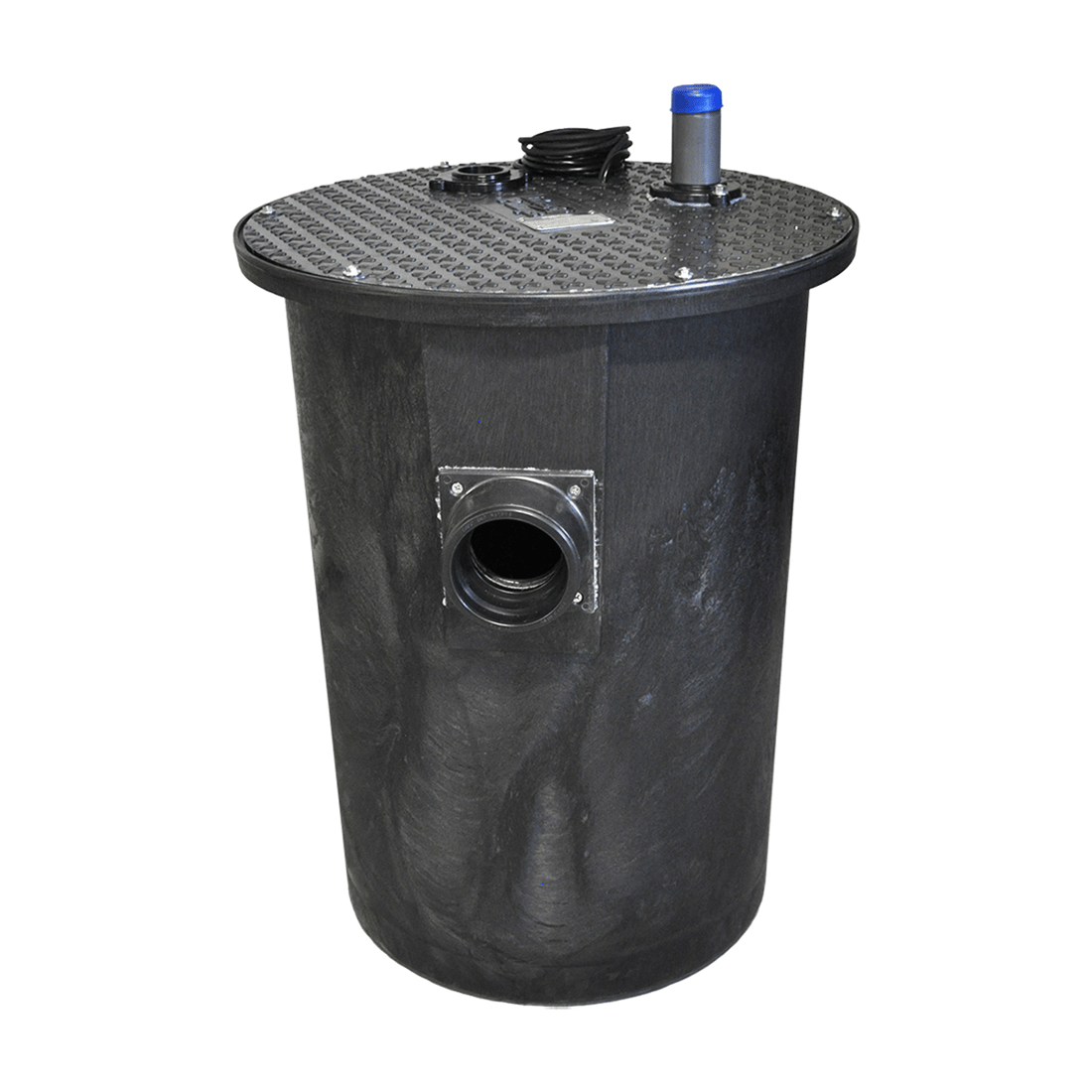

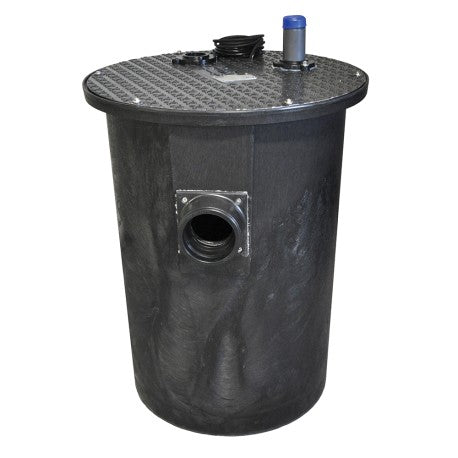

LIBERTY 703/LE102A Simplex Sewage Ejector System

Product Description

The LIBERTY 703/LE102A is a simplex sewage ejector system suitable for both residential and commercial use. This system comes pre-assembled, which simplifies installation. It has a robust structural foam basin that ensures durability and a compression-molded fiberglass cover. The included sewage pump operates automatically using a mechanical float switch. A significant feature of this system is its large basin capacity, which minimizes frequent pump cycling.

• Includes a reliable sewage pump with a mechanical float switch
• Features a heavy-duty structural foam basin for long-lasting use
• Equipped with a fiberglass cover designed with a no-skid pattern

Product Highlights

The LIBERTY 703/LE102A supports easy connections for optional alarms and control floats, enhancing its functionality in sewage management.

Product Information

Standard Information

• Brand: LIBERTY
• MPN: 703/LE102A

Technical Specifications

• Pump Model: LE102A3 sewage pump (automatic, with wide-angle float switch)
• Horsepower: 1 HP
• Input Voltage: 208-230V
• Phase: 1-Phase
• Current: 8A
• Discharge Size: 3 FNPT
• Vent Size: 3 FNPT
• Inlet Size: 4 No-Hub
• Basin Capacity: 70 Gallons
• Basin Size: 24 Wide x 36 Deep
• Cord Length: 10ft
• Weight: 124 lbs
• Warranty: 3-year warranty
