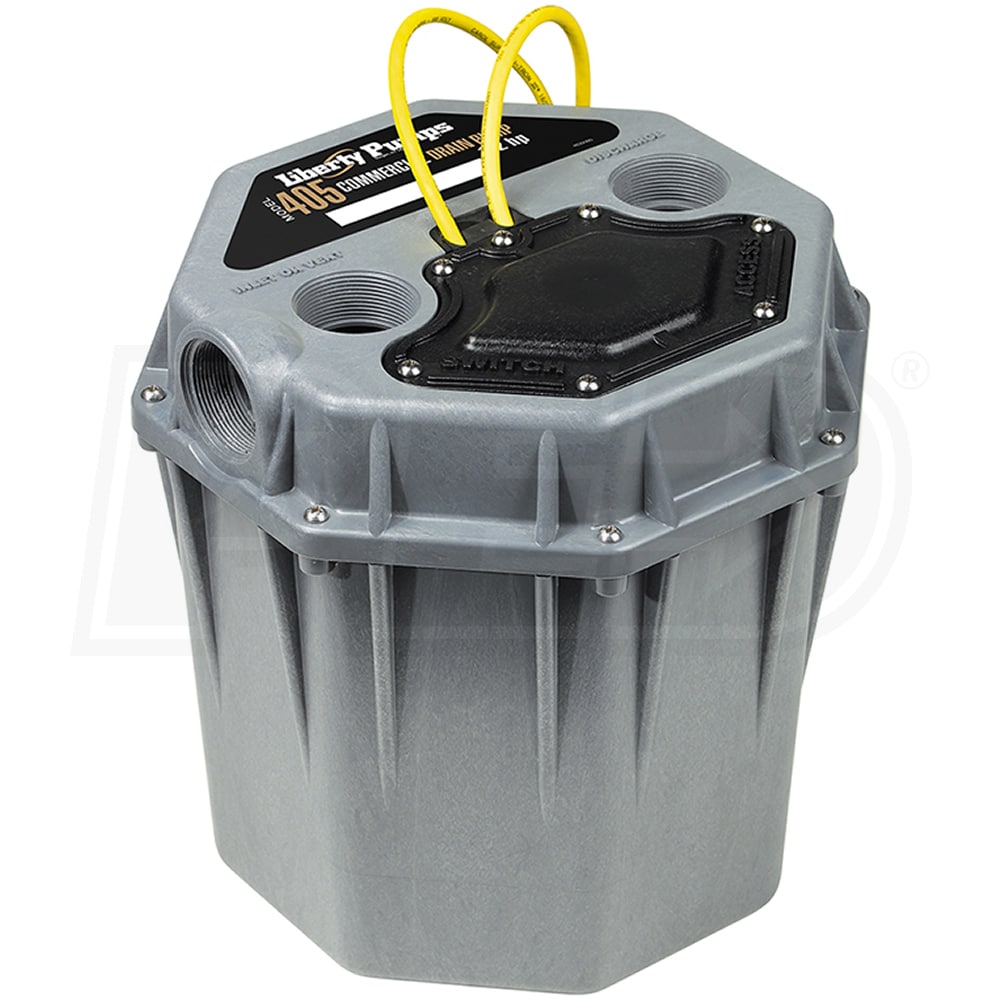

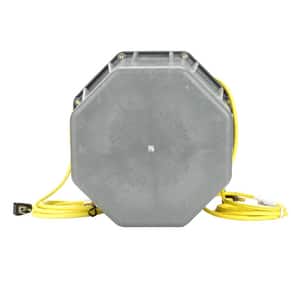

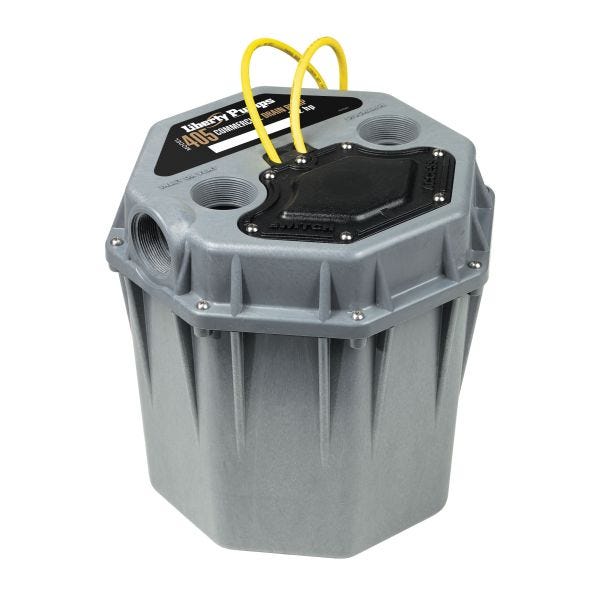

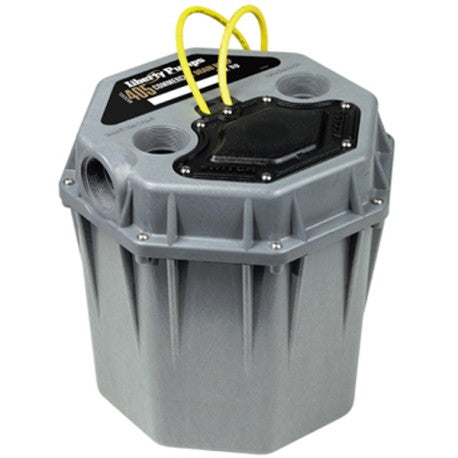

LIBERTY 405HV Liberty Pumps 405HV High-Temperature Commercial Drain Pump System

Product Description

The Liberty Pumps 405HV is a pre-assembled drain pump system that operates in high-temperature situations up to one hundred eighty degrees Fahrenheit. This unit features a half-horsepower motor for reliable performance and a corrosion-resistant polyolefin basin. It effectively handles solids up to three eighths of an inch.

• Pre-assembled for easy installation.
• Handles fluid temperatures up to one hundred eighty degrees Fahrenheit.
• Includes two inch inlet, discharge, and vent.

Product Highlights

Designed for commercial and industrial use, this pump system provides efficient drainage in high-temperature environments.

Product Information

Standard Information

• Brand: Liberty
• MPN: 405HV

Technical Specifications

• Horsepower: 1/2 HP
• Input Voltage: 208/230V
• Full Load Amps: 3.5 A
• RPM: 3450
• Discharge Port Size: 2 in
• Maximum Head: 34 ft
• Maximum Fluid Temperature: 180 degrees F
• Solid Handling Size: 3/8 in
• Basin Capacity: 5.5 Gallons
• Power Cord Length: 10 ft
• Product Length: 13.75 inches
• Product Width: 13.75 inches
• Product Height: 14.125 inches
• Weight: 16 lbs
• Phase: 1 ph
• Frequency Rating: 60 Hz
• Impeller Type: Vortex High Temperature Engineered Polymer
• Material: Polypropylene
