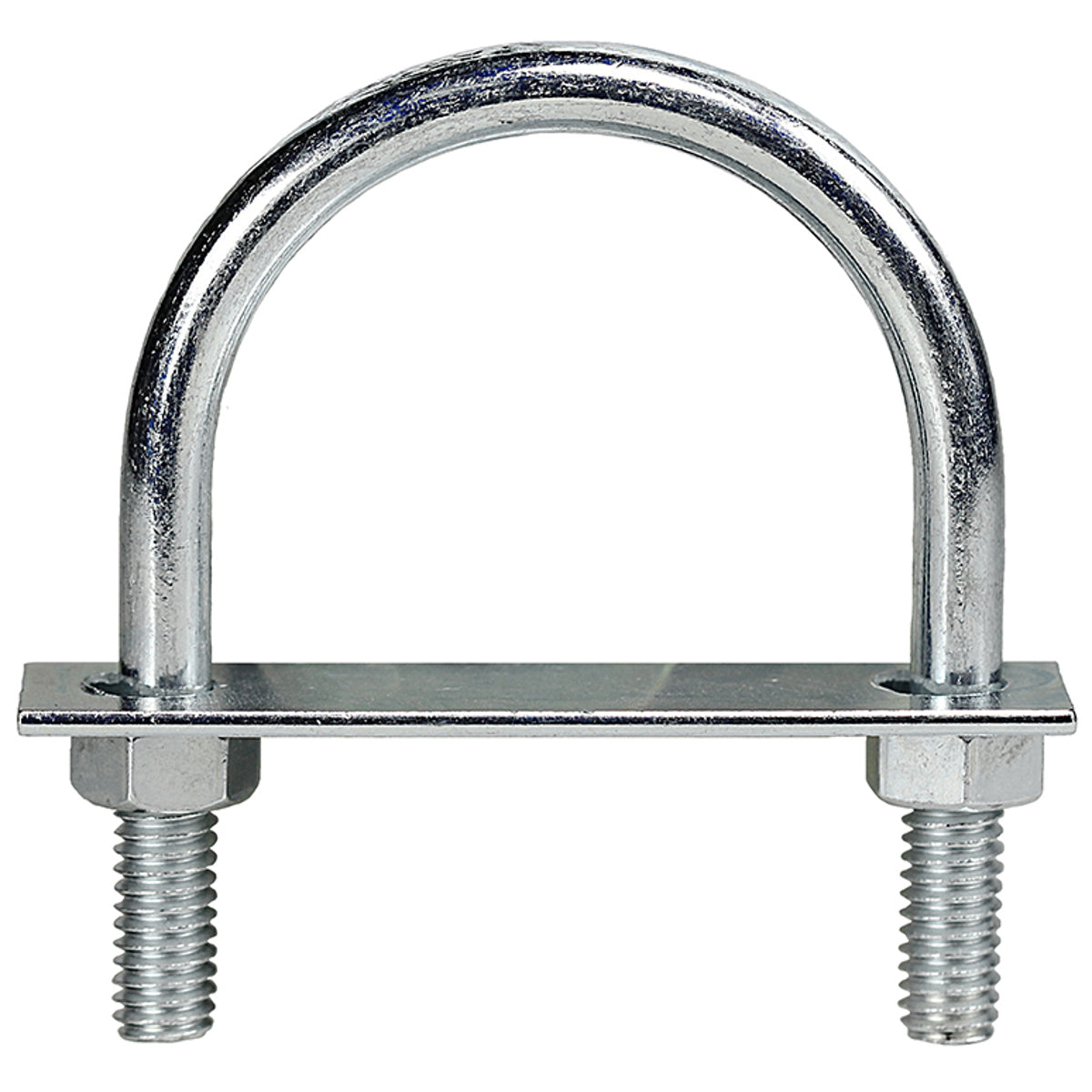

Lh Dottie U250 U-Bolt 3 x 3-5/8

Product Description

The LH DOTTIE U250 U-Bolt is made from low carbon steel with a zinc-plated finish. It is 3-5/8 inches in length and 3 x 3-5/8 inches in size. It features NC rolled machine threads and is designed to support conduit from strut. It comes with hex nuts and a plate.

• U Bolts are Generally used to Support Conduit from Strut
• Provided with Hex Nuts and Plate
• NC Rolled Threads

Product Highlights

The LH DOTTIE U-Bolt is ideal for attaching pipe, conduit, or other cylindrical materials.

Product Information

Standard Information

• Brand: LH DOTTIE
• Manufacturer Part Number: U250
• Country of Origin: Multiple

Technical Specifications

• Catalog Number: U250
• Manufacturer: LH Dottie
• Brand: LH DOTTIE
• Country of Origin: Multiple
• Made in USA: No
• Application: Conduit
• Finish: Zinc Plated
• Material: Low Carbon Steel
• Special Features: Features: U Bolts are Generally used to Support Conduit from Strut, Provided with Hex Nuts and Plate, NC Rolled Threads
• UPC: 781002179405
• GTIN: 00781002179405
• Item Type: U-Bolt
• Length: 3-5/8 Inch
• Diameter: 3/8 Inch
• Size: 3 x 3-5/8
• Nut Type: Hex
• Thread Diameter: 3/8''
• Inside Diameter: 3 in.
• Pipe Diameter: 2-1/2''
• Inside Length: 3-5/8''
• Thread Length: 1-1/4 in.
• Thread Pitch\Thread Per Inch: 16
• Standard Qty: 10
• Master Qty: 100
• RoHS Compliant: Yes
• Inner Diameter: 3 in.
• Pipe Size: 2-1/2 in.
• Thread: NC Rolled Machine
• Number of Nuts: 2
• Type: U-Bolt
• Brand Name: Dottie
• Product Model: U250
• Height: 3-5/8 Inch
• Buy American Compliant: Y
• Included Items: Hex Nut and Plate
• Product Type: U-Bolt
