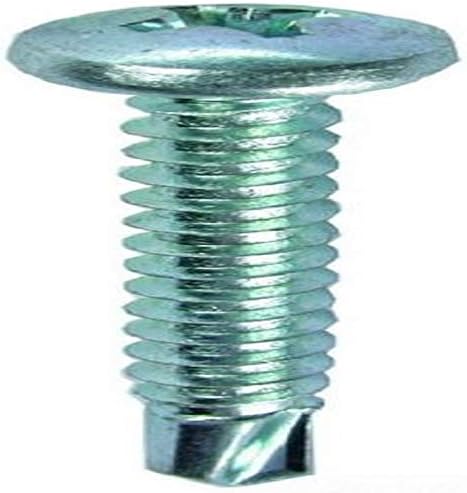

Lh Dottie TEKPH812 Pan Head Self Drilling Screw #8 x 1/2 in.

Product Description

The LH DOTTIE TEKPH812 is a pan head self-drilling screw made of steel with a zinc-plated finish. It is size #8 x 1/2 in. and features a Phillips drive type with a #2 bit size. This screw is designed for removing metal and can be used in heavier gauge metals.

• Self Piercing
• Self Tapping
• Steel material

Product Highlights

The TEKPH812 screw is ideal for metal to metal applications, drilling, tapping, and fastening in one operation.

Product Information

Standard Information

• Brand: LH DOTTIE
• Manufacturer Part Number: TEKPH812
• Country of Origin: Multiple

Technical Specifications

• Catalog Number: TEKPH812
• Manufacturer: LH Dottie
• Brand: LH DOTTIE
• Country of Origin: Multiple
• Made in USA: No
• Application: For Removing Metal And Can Be Used In Heavier Gauge Metals
• Finish: Zinc Plated
• Material: Steel
• Special Features: Drill, Taps and Fastens in One Operation
• UPC: 781002174103
• GTIN: 00781002174103
• Item Type: Pan Head Self Drilling Screw
• Length: 1/2 in
• Length UOM: Inch
• Size: #8 x 1/2''
• Thread Size: #8
• Drive Type: Phillips
• Bit Size: #2
• Head Style: Pan
• Nominal Diameter: #8
• Drill Point Size: #2
• Process: Heat Treated
• Measurement System: Imperial
• Head Type: Pan
• Drive Size: #2
• Thread Type: BSD
• Point Type: #2
• Dia./Thread Size: #8
• Head Diameter: 0.322'' to 0.306''
• Head Height: 0.115'' to 0.105''
• Thread Pitch\Thread Per Inch: 18
• Rockwell Hardness: HRC 32 - 40
• Applications: Metal to Metal
• UNSPSC: 31161528
• RoHS Compliant: Yes
• Meets/Exceeds: IFI-113
• Screw Head Style: Pan
• Screw Point Style: Self-Drill Point
• Drive System: Phillips
• Material Type: Alloy Steel, Zinc
• Exterior Finish: Zinc,Steel
• Metal Type: Zinc,Steel
• Thread Coverage: Fully Threaded
• Size Name: 0.5 inches
• ADI Part Number: LH-TEKPH812
• Brand Name: Dottie
• Manufacturer Part Number: TEKPH812
• Product Model: TEKPH812
• Product Name: TEKPH812 Screw
• Product Type: Screw
• Style Number: 8
• Fastener Type: Self Drilling Screw
• Overall Length: 1/2 in
• Threads Per Inch (TPI): 18
