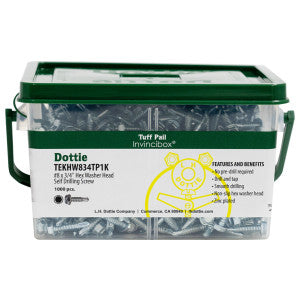

Lh Dottie TEKHW834TP1K #8 x 3/4 feet' Hex Washer Head Self Drilling Screw (1000pc Tuff Pail)

Product Description

The LH DOTTIE TEKHW834TP1K self-drilling screws are manufactured from cold-heading steel and feature a #2 drill point. The unique tip design allows them to drill, tap, and fasten metal to metal objects in one operation, without the need to pre-drill. These screws meet IFI-113 standards and ASTM C954 material and performance requirements.

• Drill, taps, and fastens in one operation
• Metal to metal applications
• Thread type BSD

Product Highlights

Self-drilling screws with a #2 drill point, designed for metal to metal applications. Eliminates the need to pre-drill.

Product Information

Standard Information

• Brand: LH DOTTIE
• Manufacturer Part Number: TEKHW834TP1K
• Country of Origin: Unknown

Technical Specifications

• Type: Self Drilling Screw
• Drive Type: Hex
• Head Type: Hex Washer
• Thread Type: BSD
• Point Type: #2
• Size: #8 x 3/4''
• Dia./Thread Size: #8
• Hex Size: 1/4''
• Head Diameter: 0.348'' to 0.322''
• Length (in): 3/4''
• Head Height: 0.110'' to 0.096''
• Thread Pitch\Thread Per Inch: 18
• Material: Carbon Steel
• Finish: Zinc Plated
• Standard Qty: 1000
• Rockwell Hardness: HRC 32 - 40
• Special Features: Drill, Taps and Fastens in One Operation
• Applications: Metal to Metal
• RoHS Compliant: Yes
• Meets/Exceeds: IFI-113
• ECCN: EAR99
• UPC: 78100285857
• Length: 3/4 in.
