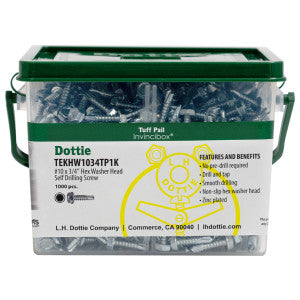

Lh Dottie TEKHW1034TP1K #10 x 3/4 feet' Hex Washer Head Self Drilling Screw (1000pc Tuff Pail)

Product Description

The LH DOTTIE TEKHW1034TP1K self-drilling screws are manufactured from cold-heading steel and feature a #2 drill point. The unique tip design allows them to drill, tap, and fasten metal to metal objects in one operation, without the need to pre-drill. IFI-113 and ASTM C954 cover the material and performance requirements for steel self-drilling screws.

• Drill, Taps and Fastens in One Operation
• Applications: Metal to Metal
• Self-Drilling

Product Highlights

These self-drilling screws are ideal for metal to metal applications, eliminating the need for pre-drilling.

Product Information

Standard Information

• Brand: LH DOTTIE
• Manufacturer Part Number: TEKHW1034TP1K
• Country of Origin: Unknown

Technical Specifications

• Type: Self Drilling Screw
• Drive Type: Hex
• Head Type: Hex Washer
• Thread Type: BSD
• Point Type: #3
• Size: #10 x 3/4''
• Dia./Thread Size: #10
• Hex Size: 5/16''
• Head Diameter: 0.414'' to 0.384''
• Length (in): 3/4''
• Head Height: 0.120'' to 0.105''
• Thread Pitch\Thread Per Inch: 16
• Material: Carbon Steel
• Finish: Zinc Plated
• Standard Qty: 1000
• Rockwell Hardness: HRC 32 - 40
• RoHS Compliant: Yes
• Meets/Exceeds: IFI-113
• Application: Metal to Metal
• Screw Size: #10 x 3/4 in.
• Screw Head Type: Hex
• Length: 3/4 in.
