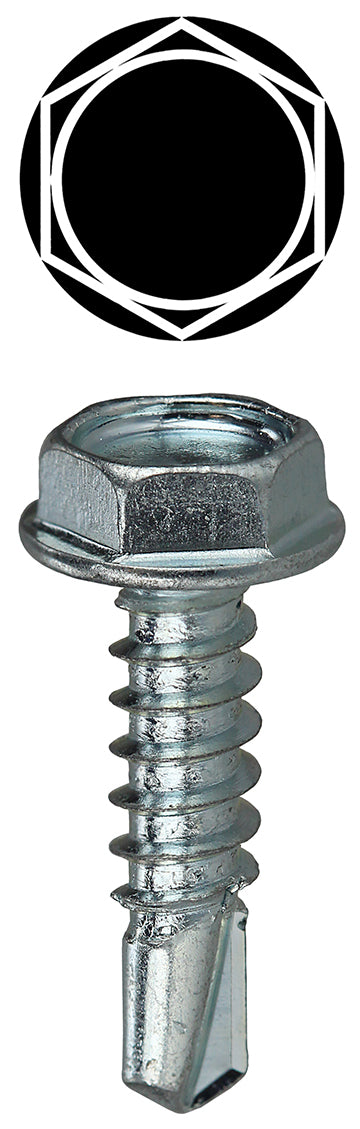

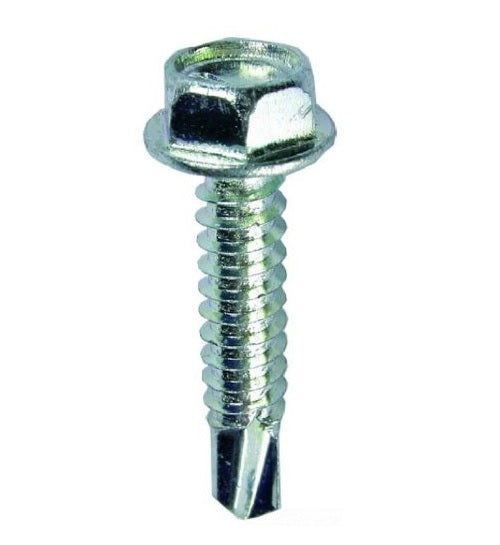

Lh Dottie TEKHW1034 Washer Head Self Drilling Screw #10 x 3/4 IN

Product Description

The LH DOTTIE TEKHW1034 is a washer head self-drilling screw made of steel. It is size #10 x 3/4 in. with a zinc-plated finish and a 5/16 in. hex size. This screw is designed for removing metal and can be used in heavier gauge metals, drilling a hole and tapping threads in one operation.

• Self Drilling
• Invincibox Up to 2 Inch
• Tuff Pack

Product Highlights

This steel self-drilling screw features a zinc-plated finish, a hex washer head, and is suitable for metal applications.

Product Information

Standard Information

• Brand: LH DOTTIE
• Manufacturer Part Number: TEKHW1034
• Country of Origin: Multiple

Technical Specifications

• Catalog Number: TEKHW1034
• Manufacturer: LH Dottie
• Brand: LH DOTTIE
• Country of Origin: Multiple
• Made in USA: No
• Application: For Removing Metal And Can Be Used In Heavier Gauge Metals
• Finish: Zinc Plated
• Material: Steel
• Item Type: Washer Head Self Drilling Screw
• Length: 3/4 Inch
• Length UOM: Inch
• Size: #10 x 3/4 IN
• Thread Size: #10
• Head Type: Hex Washer
• Hex Size: 5/16 in.
• Head Style: Hex
• Drive Style: Hex Washer
• Nominal Diameter: #10
• Diameter - Thread Size: #10
• Measurement System: Imperial
• Type: Self Drilling Screw
• Drive Type: Hex
• Thread Type: BSD
• Point Type: #3
• Dia./Thread Size: #10
• Head Diameter: 0.414'' to 0.384''
• Head Height: 0.120'' to 0.105''
• Thread Pitch\Thread Per Inch: 16
• Rockwell Hardness: HRC 32 - 40
• UNSPSC: 31161528
• RoHS Compliant: Yes
• Meets/Exceeds: IFI-113
