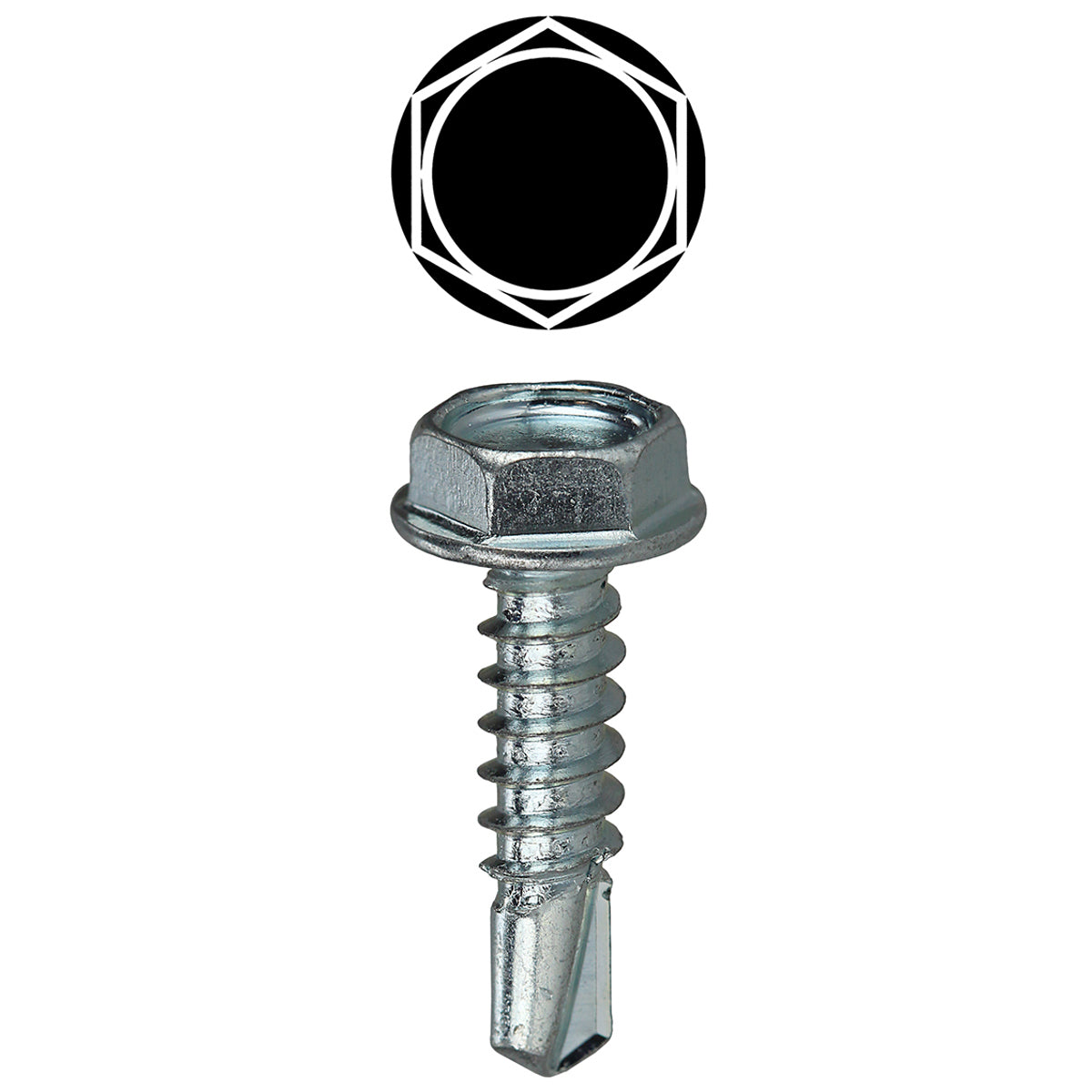

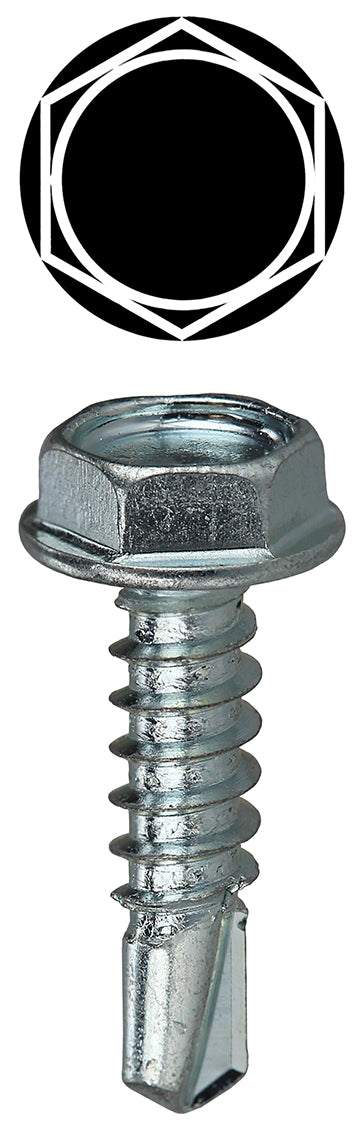

Lh Dottie TEKHW1012 Washer Head Self Drilling Screw #10 x 1/2 IN

Product Description

The LH DOTTIE TEKHW1012 is a washer head self drilling screw made of steel, designed for removing metal and use in heavier gauge metals. It features a zinc plated finish and comes in a size of #10 x 1/2 inch. These screws drill, tap, and fasten metal to metal objects in one operation, without the need to pre-drill.

• Self Drilling
• Invincibox Up to 2 Inch
• Tuff Pack

Product Highlights

This steel screw is ideal for metal to metal applications, offering optimal drill performance and thread forming.

Product Information

Standard Information

• Brand: LH DOTTIE
• Manufacturer Part Number: TEKHW1012
• Country of Origin: Multiple

Technical Specifications

• Catalog Number: TEKHW1012
• Manufacturer: LH Dottie
• Brand: LH DOTTIE
• Country of Origin: Multiple
• Made in USA: No
• Application: For Removing Metal And Can Be Used In Heavier Gauge Metals
• Finish: Zinc Plated
• Material: Steel
• UPC: 781002175254
• GTIN: 00781002175254
• Item Type: Washer Head Self Drilling Screw
• Length: 1/2 Inch
• Size: #10 x 1/2 IN
• Thread Size: #10
• Head Type: Hex Washer
• Hex Size: 5/16 in.
• Packaging: Patented Invincibox
• Head Style: Hex
• Drive Style: Hex Washer
• Nominal Diameter: #10
• Diameter - Thread Size: #10
• Head Size: 5/16 in W
• Measurement System: Imperial
• Type: Self Drilling Screw
• Drive Type: Hex
• Thread Type: BSD
• Point Type: #2
• Head Diameter: 0.414'' to 0.384''
• Head Height: 0.120'' to 0.105''
• Thread Pitch\Thread Per Inch: 16
• Rockwell Hardness: HRC 32 - 40
• UNSPSC: 31161528
• RoHS Compliant: Yes
• Meets/Exceeds: IFI-113
• Packaged Quantity: 100
• Product Model: TEKHW1012
• Product Type: Screw
• Style Number: 10
• Fastener Type: Self Drilling Screw
• Finishing: Zinc Plated
• Threads Per Inch (TPI): 16
• Environmental Certification: RoHS
• Environmentally Friendly: Yes
