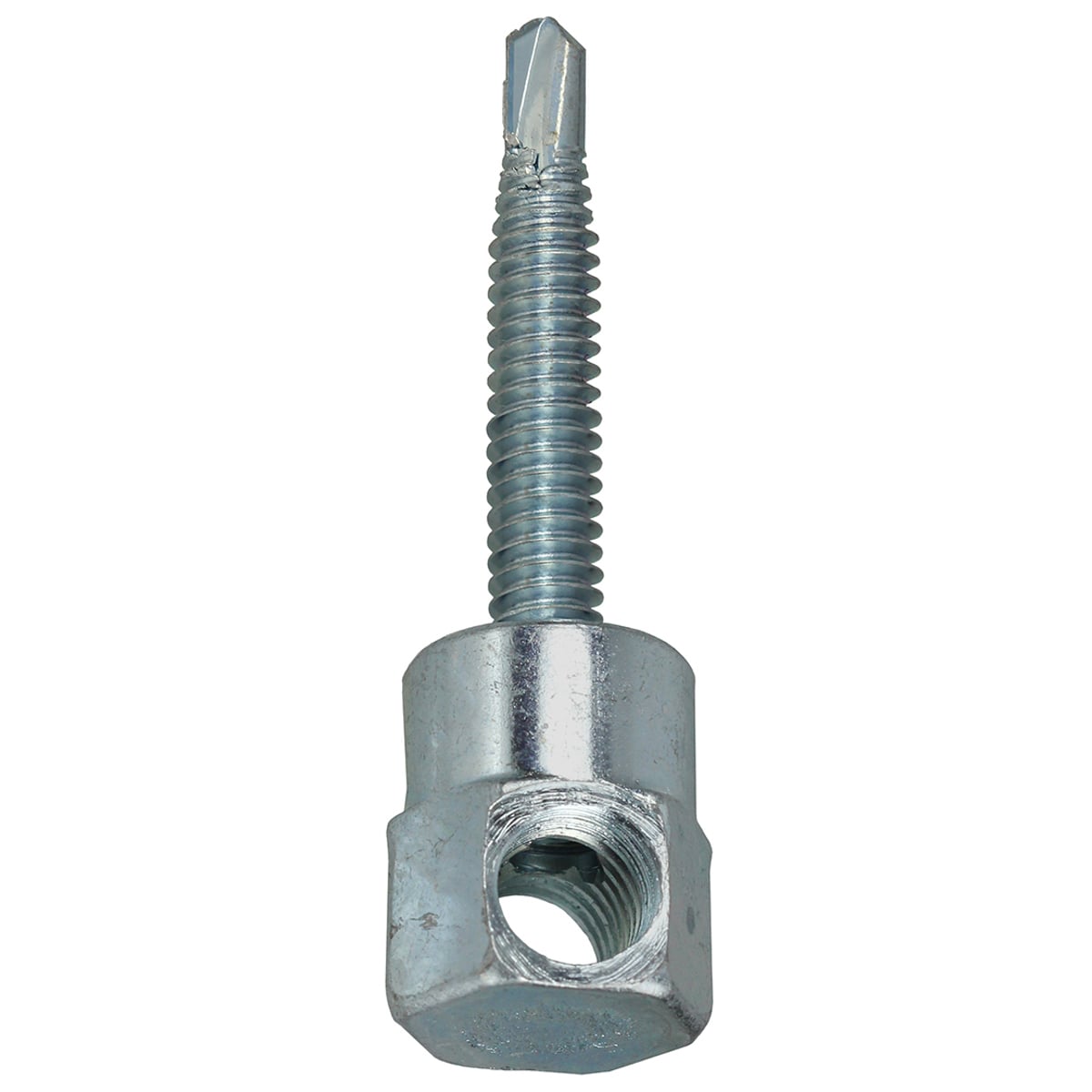

Lh Dottie SSM14S Side Mount Rod Hanger 1/4-20 x 1 in.

Product Description

The LH Dottie SSM14S Side Mount Rod Hanger is a steel component designed for installing threaded rod vertically in steel joists and beams. It features a self-drilling tip, eliminating the need for pre-drilling, and can be easily installed with a drill or screw gun. This hanger is suitable for various applications including pipe hanging, conduit, and lighting systems, offering a secure mounting solution. Its 1/4-20 x 1 inch size and #3 point style ensure efficient attachment.

• Self-drilling tip eliminates the need for pre-drilling.
• Designed for vertical threaded rod installation in steel joists and beams.
• Installs easily with a drill or screw gun.

Product Highlights

Steel side mount rod hanger with self-drilling tip for quick installation in steel joists and beams.

Product Information

Standard Information

• Brand: LH DOTTIE
• Manufacturer Part Number: SSM14S
• Country of Origin: Multiple

Technical Specifications

• Catalog Number: SSM14S
• Manufacturer: LH Dottie
• Brand: LH DOTTIE
• Country of Origin: Multiple
• Made in USA: No
• Item Type: Side Mount Rod Hanger
• Material: Carbon Steel
• Application: Steel Joists, Beams, Purlins
• Screw Size: 1/4-20 x 1
• Rod Size: 1/4
• Install Tool: UNIB
• Anchor Type: Rod Hanger
• Point Style: #3
• Thread Type: UNC
• Head Diameter: 5/8
• Shank Length: 1
• Thread Per Inch: 20
• Finish: Zinc Plated
• Mount Style: Side
• Self Drilling Range: 0.036 to 0.188
• RoHS Compliant: Yes
