Lh Dottie MB51634 Hex Head Tap Bolt 5/16 x 3/4 Inch 100-Pack

Product Description

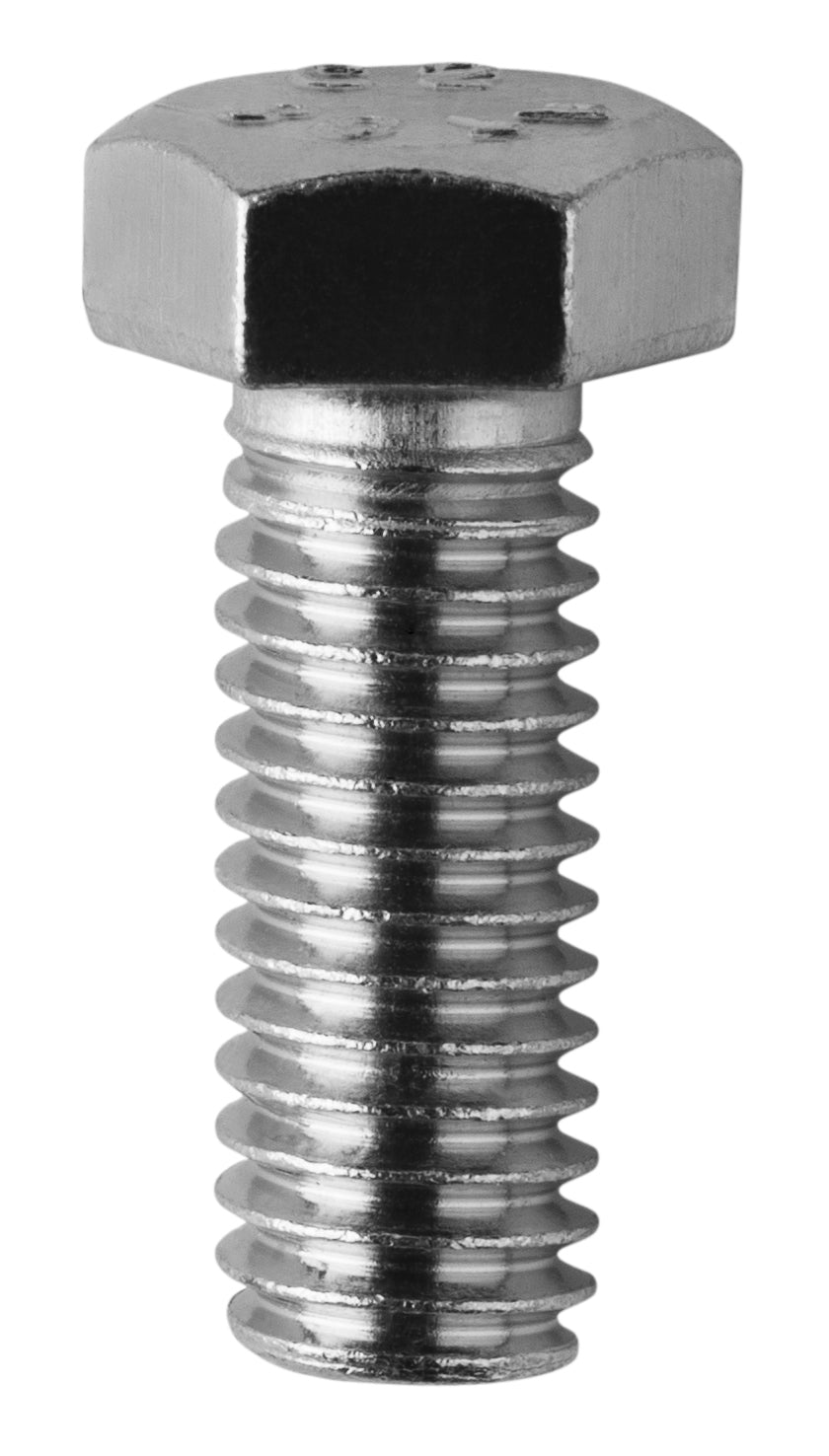

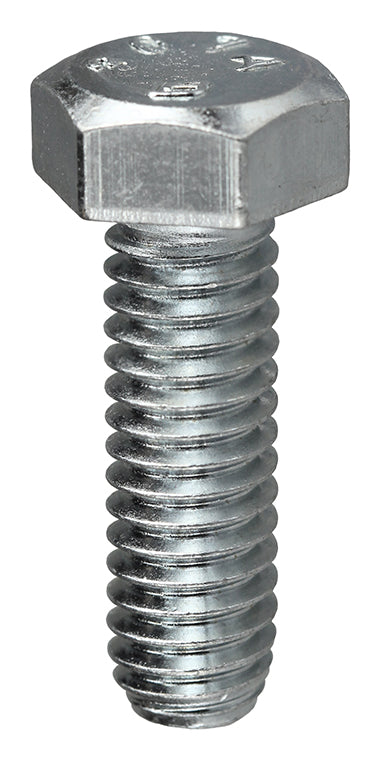

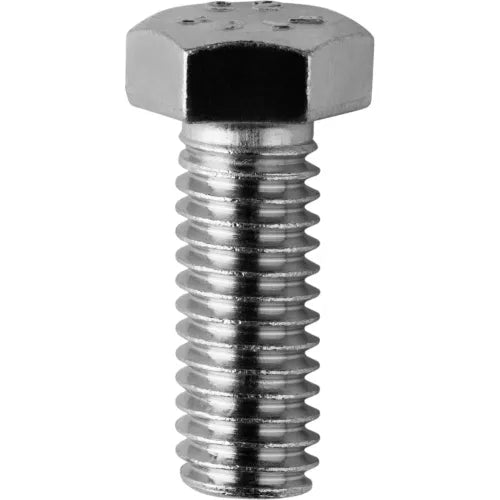

The LH Dottie MB51634 is a fully threaded hex head tap bolt, constructed from grade 2 low carbon steel with a zinc plated finish. This 5/16 x 3/4 inch fastener is designed for secure fastening into internally tapped holes or for use with nuts to join assemblies. Its continuous thread allows for take-up adjustment, making it suitable for various applications requiring precise positioning.

• Continuous thread allows for take-up adjustment
• Made from grade 2 low carbon steel
• Zinc plated finish for corrosion resistance

Product Highlights

Fully threaded hex head tap bolt for versatile fastening and adjustment applications.

Product Information

Standard Information

• Brand: LH DOTTIE
• Manufacturer Part Number: MB51634
• Country of Origin: Multiple Countries

Technical Specifications

• Type: Hex Head Tap Bolt, Machine Bolt
• Made in USA: No
• Finish: Zinc Plated
• Material: Zinc Plated Steel
• Length: 3/4 Inch
• Diameter: 5/16 Inch
• Size: 5/16 x 3/4 Inch
• Head Type: Hex Head
• Thread Style: Fully Threaded
• Grade: 2
• Thread Type: 2A
• Point Type: Non-Pointed
• Thread Size: 5/16-18
• Hex Size: 1/2 Inch
• Threads Per Inch: 18
• Tensile Strength: 60000 psi
• Rockwell Hardness: HRB 69 - 100
• UNSPSC: 31161620
• RoHS Compliant: Yes
• Package Quantity: 100
• Thread Direction: Right Hand
• Country of Origin: MUL
• UPC: 781002587521
• ECCN: EAR99
• Application: General Purpose
• Certifications: ASME B1.1 - 2003 (R2008), IFI - 199, ASTM A307A-2014
