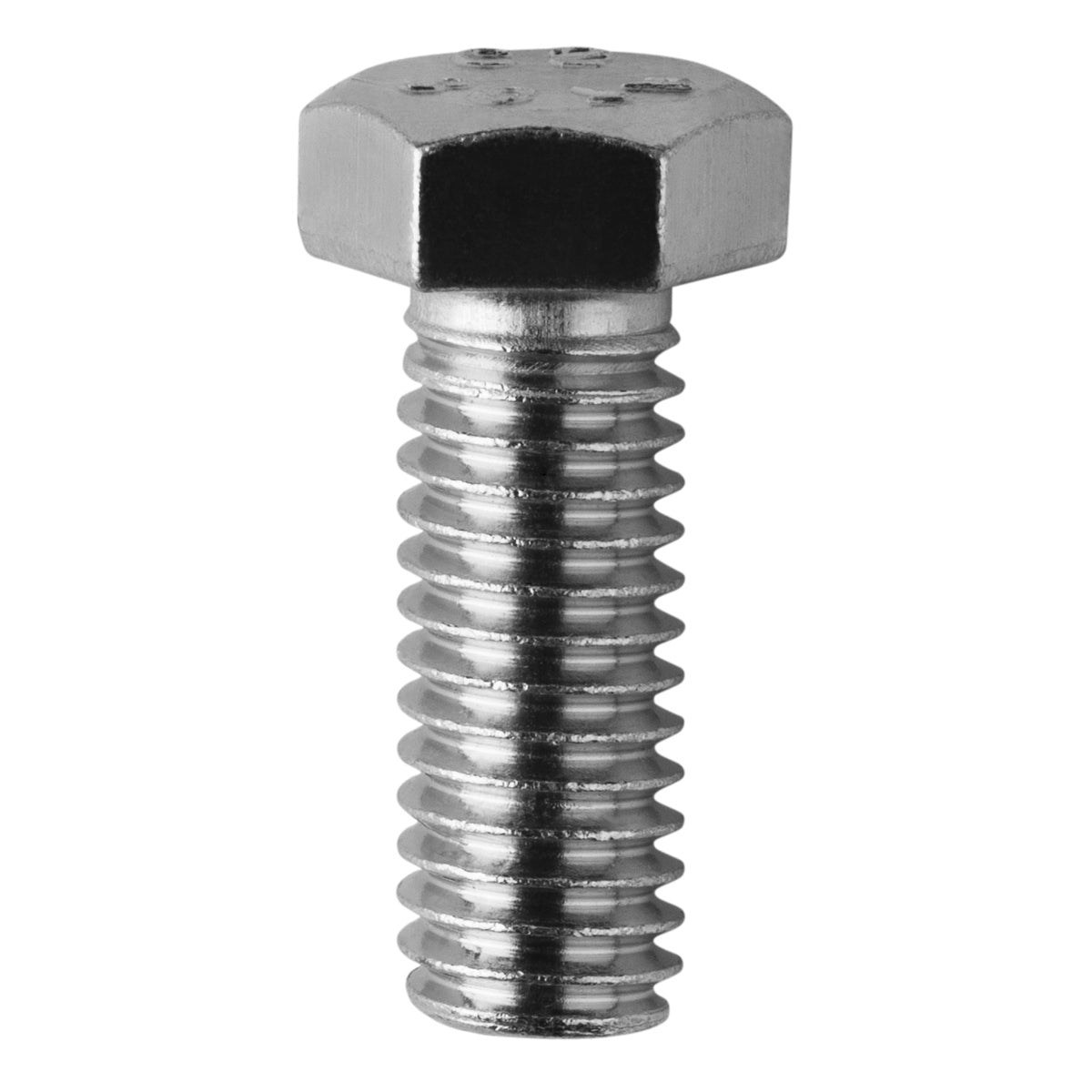

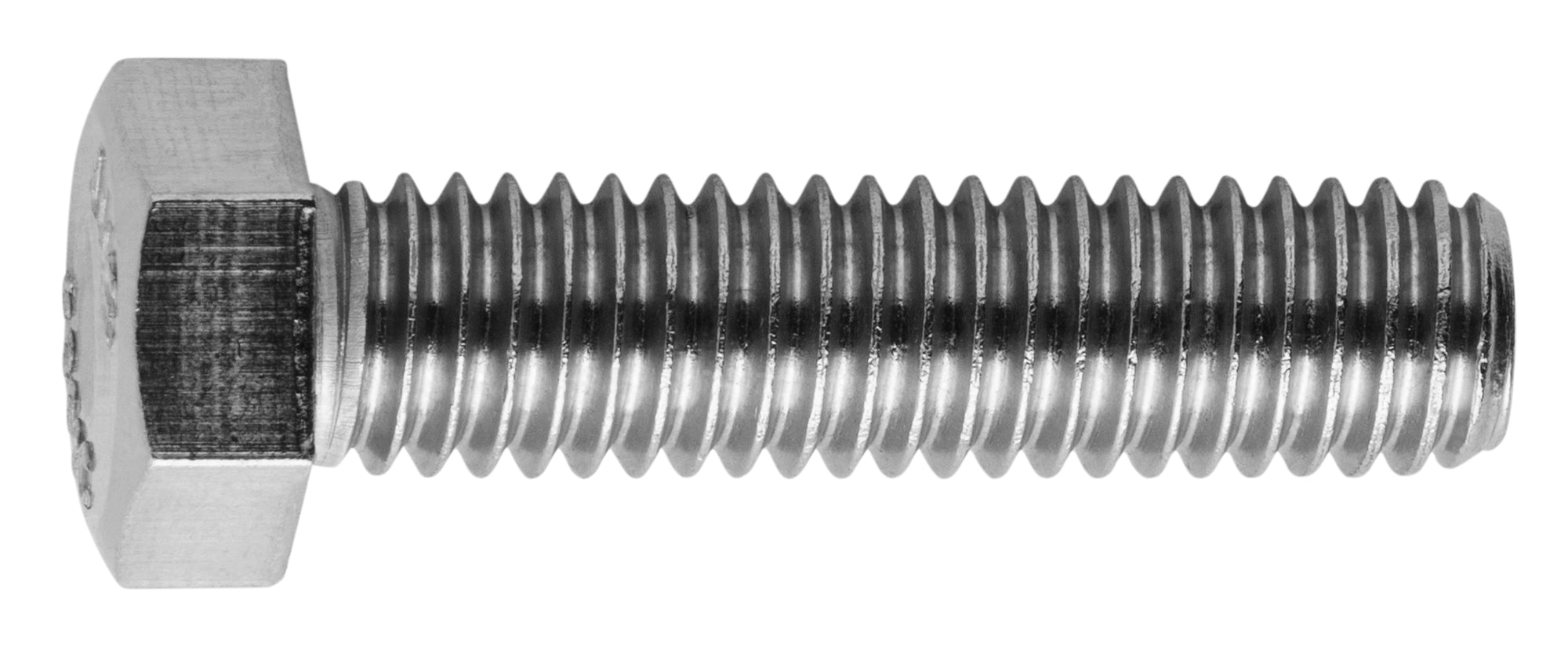

Lh Dottie MB516112 Hex Head Tap Bolt 5/16-18 x 1-1/2 inch

Product Description

The LH DOTTIE MB516112 is a Hex Head Tap Bolt, manufactured from grade 2 low carbon steel with a zinc plated finish. This fully threaded fastener measures 5/16 inches in diameter with 18 threads per inch and a 1-1/2 inch length, featuring a 1/2 inch hex head. Designed as a machine bolt, it offers continuous threading for take-up adjustment, making it suitable for fastening into internally tapped holes or for use with a nut to pull assemblies together.

• Continuous thread allows for take-up adjustment
• Constructed from grade 2 low carbon steel with zinc plated finish
• Fully threaded design for versatile fastening applications

Product Highlights

Zinc plated low carbon steel hex head tap bolt with full thread for versatile fastening and adjustment.

Product Information

Standard Information

• Brand: LH DOTTIE
• Manufacturer Part Number: MB516112
• Country of Origin: Multiple

Technical Specifications

• Brand: LH DOTTIE
• MPN: MB516112
• Type: Hex Head Tap Bolt
• Material: Low Carbon Steel
• Finish: Zinc Plated
• Grade: 2
• Length: 1-1/2 in
• Diameter: 5/16 in
• Head Size: 1/2 in
• Thread Style: Fully Threaded
• Thread Type: 2A
• Thread Pitch: 18
• Head Type: Hex
• Point Type: Non-Pointed
• Length Measurement: From the base of the fastener head
• Product Class: Machine Bolt
• Measurement System: Imperial
• Thread Length: 1-1/2 in
• Tensile Strength: 60000 psi
• Rockwell Hardness: HRB 69 - 100
• RoHS Compliant: Yes
• Applications: General Purpose
• Series: MB
