Lh Dottie mb1234 hex head tap bolt 1/2 x 3/4 inch 50-pack

Product Description

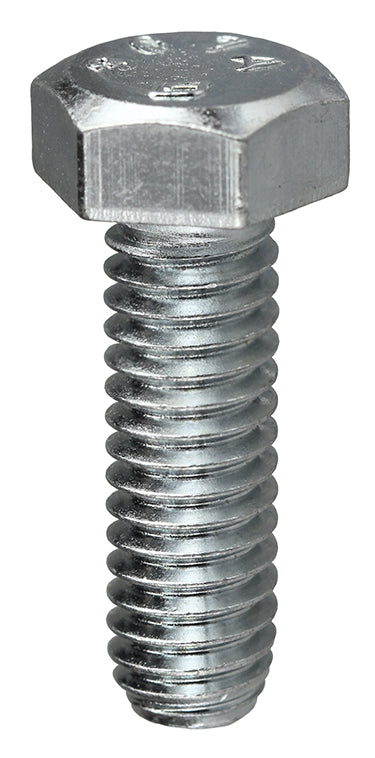

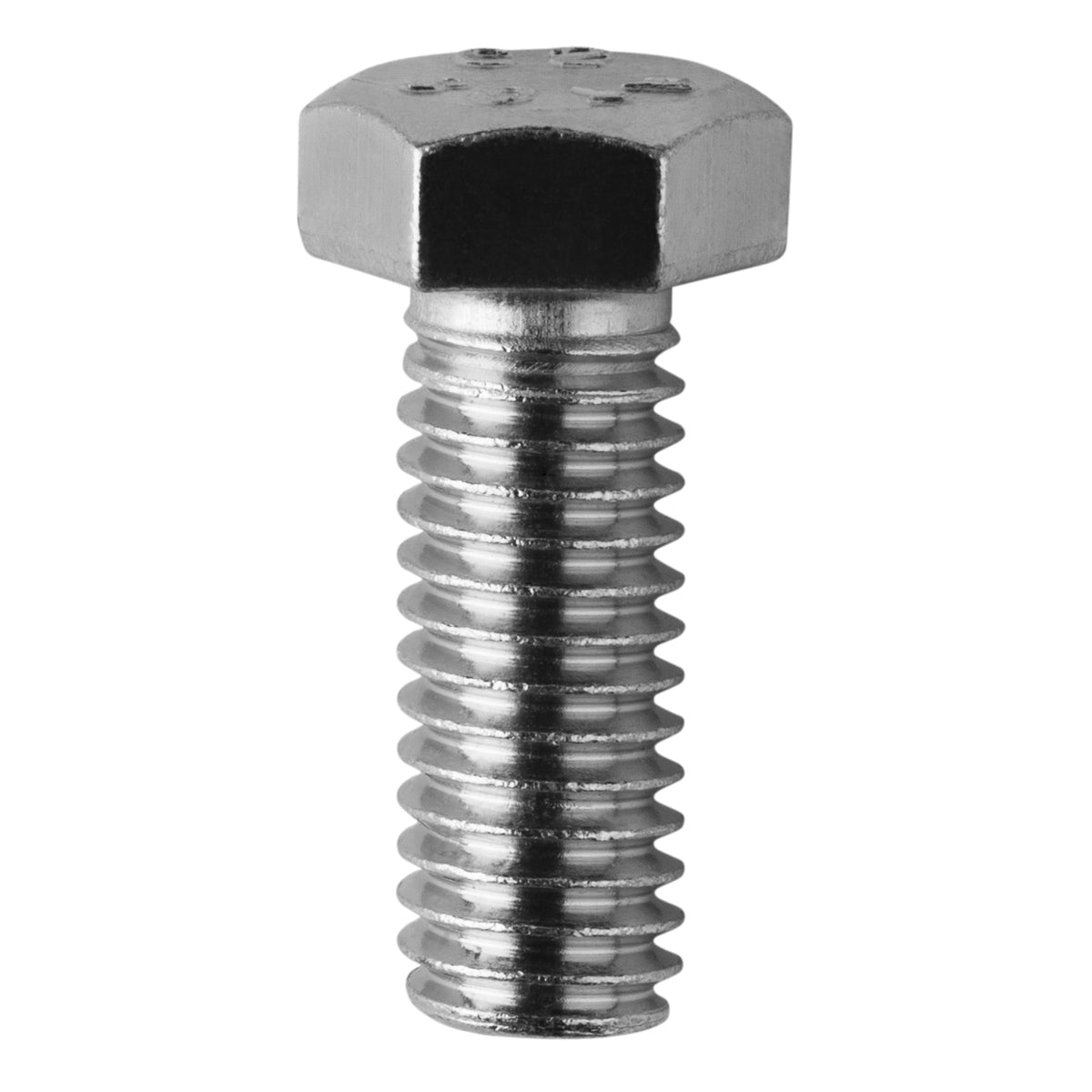

The LH DOTTIE MB1234 is a Hex Head Tap Bolt constructed from low carbon steel with a zinc plated finish. This fully threaded fastener measures 1/2 inch in diameter and 3/4 inch in length, featuring a 3/4 inch head size. It is designed for fastening into internally tapped holes or for use with a nut to secure assemblies, offering continuous thread for take-up adjustment.

• Continuous thread allows for take-up adjustment in various applications.
• Constructed from low carbon steel with a durable zinc plated finish.
• Features a fully threaded hex head design for secure fastening.

Product Highlights

Hex Head Tap Bolts are suitable for fastening into tapped holes or for use with nuts in assembly applications, manufactured to IFI-199 standard.

Product Information

Standard Information

• Brand: LH DOTTIE
• Manufacturer Part Number: MB1234
• Country of Origin: Multiple

Technical Specifications

• Country of Origin: Multiple
• Made in USA: No
• Finish: Zinc Plated
• Material: Low Carbon Steel
• Product Type: Hex Head Tap Bolt
• Thread Style: Fully Threaded
• Length: 3/4 Inch
• Head Size: 3/4 Inch
• MPN: MB1234
• Brand: LH DOTTIE
• Size: 1/2 x 3/4 Inch
• Diameter Thread Size: 1/2-13
• Material Grade: 2
• Head Type: Hex
• Measurement System: Imperial
• Thread Type: UNC
• Point Type: Non-Pointed
• Thread Pitch Per Inch: 13
• Standard Quantity: 50
• Tensile Strength: 60000 psi
• Rockwell Hardness: HRB 69 - 100
• UNSPSC: 31161620
• RoHS Compliant: Yes
• Application: General Purpose
• ECCN: EAR99
• UPC: 78100258850
• Thread Direction: Right Hand
