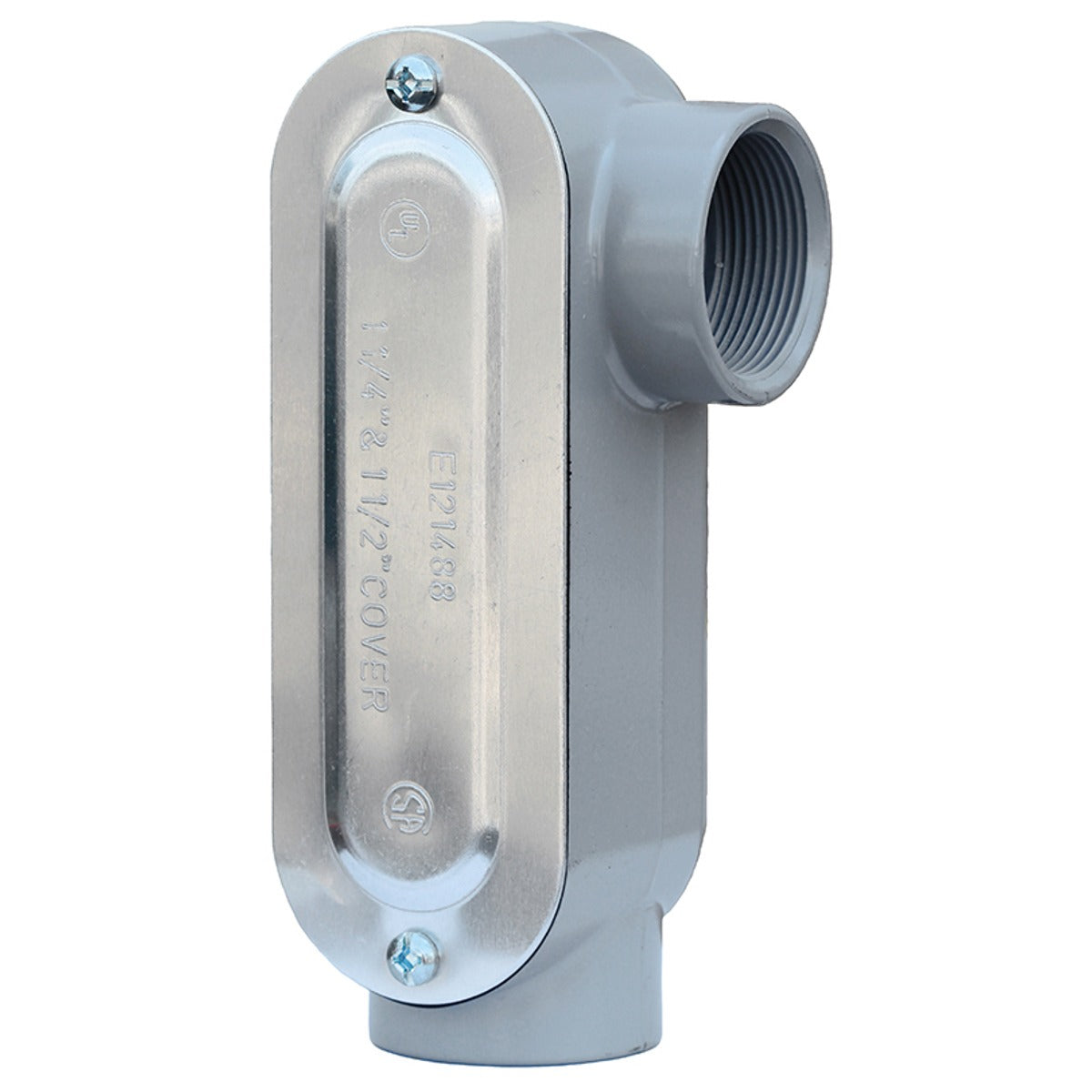

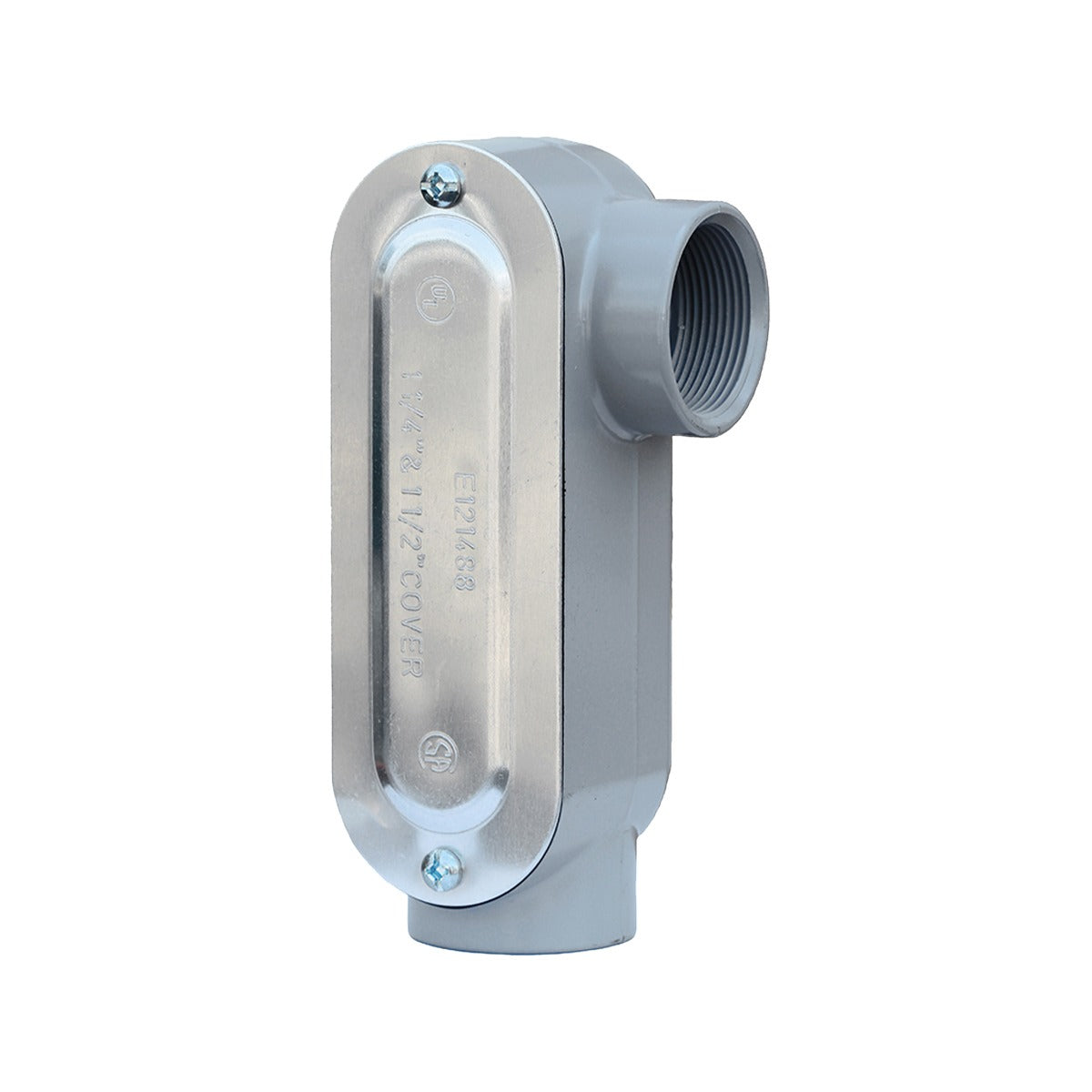

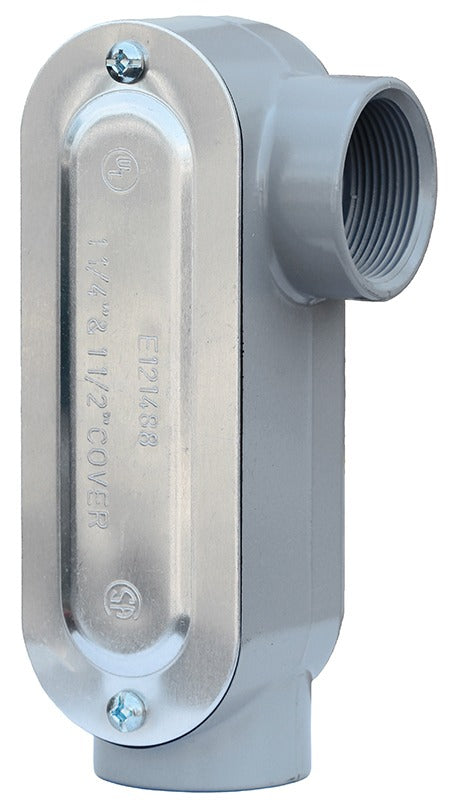

Lh Dottie LL125CG LL style conduit body 1-1/4 in hub (90 degree)

Product Description

Lh Dottie LL125CG is an LL-style conduit body that provides routing and inspection access for threaded rigid conduit installations. The unit is die cast copper-free aluminum, UL listed, and includes a cover with a neoprene gasket. It features a left-side access opening, two 1-1/4 in threaded hubs in a 90 degree configuration, and a flat back for wall mounting; dimensions 10.7 x 6.2 x 4.6 in, weight 2.5 lb.

• Includes cover and neoprene gasket; UL listed for interior applications
• Die cast copper-free aluminum construction with flat back wall mounting
• Two 1-1/4 in threaded hubs, 90 degree hub location, left-side access for rigid conduit

Product Highlights

LL-style threaded conduit body with two 1-1/4 in hubs (90 degree), left-side access, cover and neoprene gasket; copper-free aluminum; UL listed.

Product Information

Standard Information

• Brand: LH DOTTIE
• Manufacturer Part Number: LL125CG
• Country of Origin: Multiple
