Lh Dottie HWSMS101 Sheet Metal Screw #10 x 1 IN

Product Description

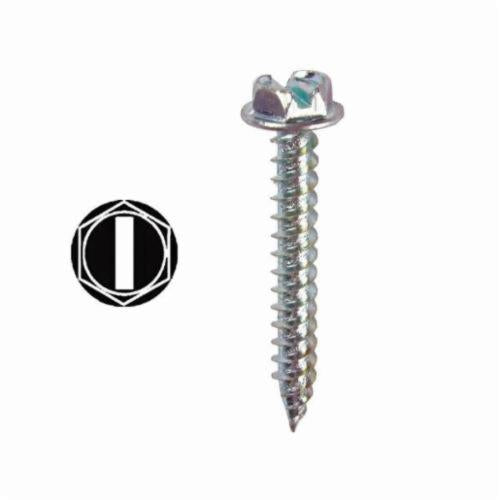

The LH DOTTIE HWSMS101 is a sheet metal screw with a steel material, 1 in. length and #10 thread size. It features a 5/16 in. head width, hex washer head type, and a zinc plated finish with a slotted/Phillips drive type. These screws are capable of tapping their own internal threads when driven into preformed holes in metal.

• Steel material
• 1 in. length
• #10 thread size
• Zinc Plated Finish

Product Highlights

Ideal for fastening light metal sheets, wood, and plastic. Complies with ASME B18.3 standards.

Product Information

Standard Information

• Brand: LH DOTTIE
• Manufacturer Part Number: HWSMS101
• Country of Origin: Multiple

Technical Specifications

• Catalog Number: HWSMS101
• Manufacturer: LH Dottie
• Brand: LH DOTTIE
• Country of Origin: Multiple
• Made in USA: No
• Finish: Zinc Plated
• Material: Steel
• UPC: 781002566045
• GTIN: 00781002566045
• Item Type: Sheet Metal Screw
• Length: 1 Inch
• Length UOM: Inch
• Size: #10 x 1 IN
• Thread Size: #10
• Head Width: 5/16 in.
• Head Type: Hex Washer
• Drive Type: Slotted/Phillips
• Head Style: Hex Washer
• Nominal Diameter: #10
• Head Width Across Flat: 5/16 Inch
• Diameter - Thread Size: #10
• Measurement System: Imperial
• Mfg Standards/Approvals: ARRA, Buy American Act Compliant
• Overall Length: 1 in
• Thread Type: AB
• Point Type: AB
• Hex Size: 1/4''
• Head Diameter: 0.383'' to 0.414''
• Head Height: 0.105'' to 0.120''
• Thread Pitch\Thread Per Inch: 16
• Drive Size: #2
• Carbon Steel: Carbon Steel
• Rockwell Hardness: HRC 28 - 38
• UNSPSC: 31161506
• RoHS Compliant: Yes
• Meets/Exceeds: ASME B18.6.3
• ADI Part Number: LH-HWSMS101
• Packaged Quantity: 100
• Product Model: HWSMS101
• Diameter: 0.383-0.414"
• Threads Per Inch (TPI): 16
