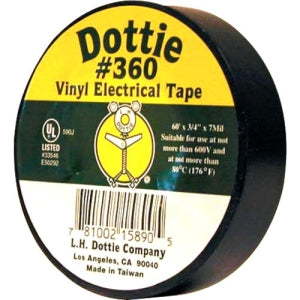

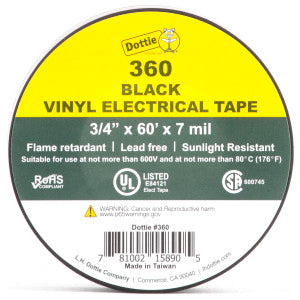

Lh Dottie 360 3/4x60ft Pvc Tape

Product Description

The LH DOTTIE 360 is an electrical tape designed for color coding. This PVC tape has a voltage rating of 600 V, a length of 60 ft, and a width of 3/4 inch. It has a thickness of 7 Mil and a temperature rating of 80 Deg C. UL approved for economy grade applications.

• Electrical Tape
• Color Coding
• UL Approved

Product Highlights

The LH DOTTIE 360 PVC tape is ideal for providing insulation and protection to wires, connectors, and electrical appliances.

Product Information

Standard Information

• Brand: LH DOTTIE
• Manufacturer Part Number: 360
• Country of Origin: Unknown

Technical Specifications

• Voltage Rating: 600 V
• Length: 60 Ft
• Width: 3/4 Inch
• Thickness: 11mil
• Material: PVC
• Finish: Black
• Temperature Rating: 80 Deg C
• Application: Economy Grade
• Approval: UL
• Type: Electrical Tape
• Size: 3/4'' x 60'
• Length (ft): 60'
• Width (in): 3/4''
• Thickness (in): .007''
• Backing Material: Vinyl
• Standard Qty: 10
• Master Qty: 200
• Package Length: 3.07
• Package Width: 2.99
• Package Height: 7.8
• Package Weight: 1.96
• Tensile Strength: 7 KG/in
• Tensile Strength (N\cm): 27.5 N/cm
• Elongation: 2
• Applications: Insulating, Wire Harnessing, Jacketing on High Voltage Splices
• Temperature Range: 32°F to 176°F
• Dielectric Strength: 1200 V/mil
• Resistant to: UV, Acids, Abrasion & Corrosion
• Adhesion to Steel: 16 oz/in
• Adhesion to Backing: 16 oz/in
• For Use With: Wires, Connectors, Filler Compounds, & Electrical Appliances
• UV Resistance: Yes
• Special Features: Flame-Retardant, Strong Tensile Strength, Performs Well in All Climates, Individual Cello Wrapped
• UNSPSC: 31201502
• Industry Standards: UL Listed
• RoHS Compliant: Yes
• Maximum Operating Temperature: 176°F (80°C)
• Individual Cello Wrap, 10 Per Standard Sleeve:
• ECCN: EAR99
• Country of Origin: 00 - Unknown
• UPC: 78100215890
• Packaging: 10 per Package
• Use With: Wires, Connectors, Filler Compounds, & Electrical Appliances
• Rated Voltage: 600V
• Color Family: Black
• ADI Part Number: LH-360
• Brand Name: Dottie
• Manufacturer: L.H. Dottie
• Manufacturer Part Number: 360
• Packaged Quantity: 10
• Product Model: PC 5350
• Product Name: PC 5350 Economy PVC Tape
• Product Type: Insulating Tape
• Application/Usage: Insulating Wire, Protecting, Splicing
