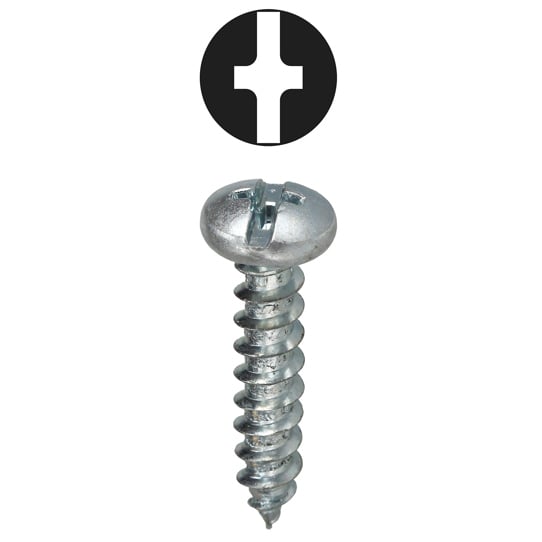

Lh Dottie 2WS122 sheet metal screw #12 x 2 in pan head slotted/phillips

Product Description

The LH DOTTIE 2WS122 is a zinc plated steel sheet metal screw designed for fastening light metal sheets, wood, and plastic. This #12 x 2 inch pan head screw features a Slotted/Phillips drive type, allowing for versatile installation. Manufactured from steel, it is capable of tapping its own internal threads and offers corrosion resistance. Its design ensures secure fastening in various applications.

• Pan head with a combination Slotted/Phillips drive for versatile installation.
• Capable of tapping its own internal threads into preformed holes in metal, wood, and plastic.

Product Highlights

Zinc plated steel sheet metal screw with pan head and Slotted/Phillips drive, ideal for self-tapping applications.

Product Information

Standard Information

• Brand: LH DOTTIE
• Manufacturer Part Number: 2WS122
• Country of Origin: Multiple

Technical Specifications

• Finish: Zinc Plated
• Material: Steel
• Type: Sheet Metal Screw
• Length: 2 Inch
• Size: #12 x 2 IN
• Thread Size: #12
• Drive Type: Phillips/Slotted
• Head Type: Pan
• Thread Type: AB
• Point Type: AB
• Head Diameter: 0.425'' to 0.407''
• Head Height: 0.151'' to 0.139''
• Thread Pitch/Thread Per Inch: 14
• Drive Size: #3
• Rockwell Hardness: HRC 28 - 38
• UNSPSC: 31161506
• RoHS Compliant: Yes
• Standards: ASME B18.6.3, ARRA Compliant, Buy American Act Compliant
• UPC: 781002581840
• Series/Model: 2WS
