Lh Dottie 2ws121 sheet metal screw #12 x 1 inch pan head slotted/phillips drive

Product Description

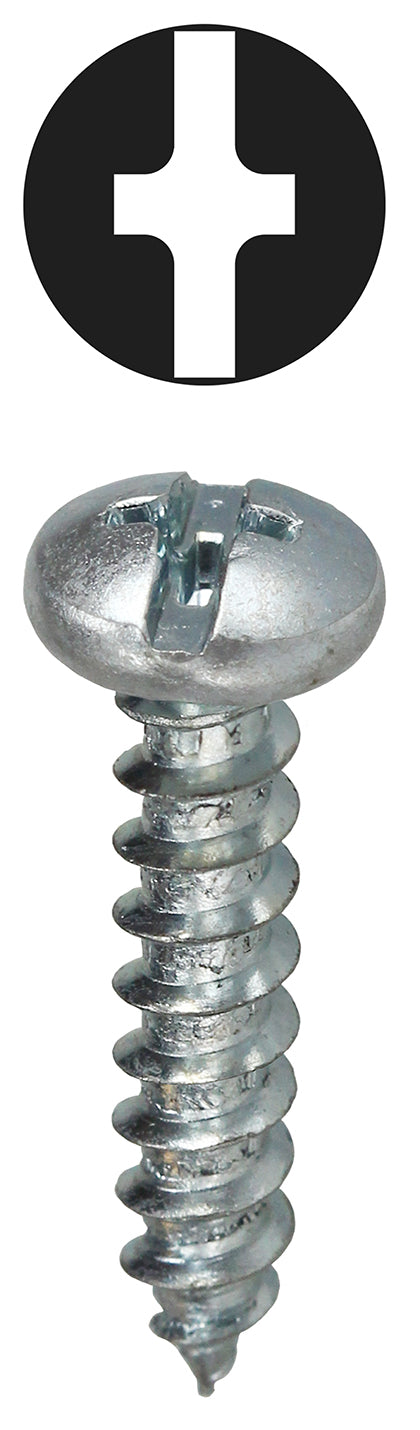

The LH Dottie 2WS121 is a #12 x 1 Inch pan head sheet metal screw with a Slotted/Phillips drive, designed to tap its own mating threads when driven into preformed holes in metal. This versatile fastener is constructed from steel with a zinc plated finish, making it suitable for fastening light metal sheets, wood, and plastic. It features specially hardened spaced threads and sharp points, meeting ASME B18.3 requirements for dimensions and performance.

• Features a pan head with a Slotted/Phillips combination drive for installation flexibility.
• Self-tapping design allows for secure fastening into preformed holes in metal.
• Made from steel with a zinc plated finish, providing durability and corrosion resistance.

Product Highlights

Versatile #12 x 1 Inch sheet metal screw for various fastening applications.

Product Information

Standard Information

• Brand: LH DOTTIE
• Manufacturer Part Number: 2WS121
• Country of Origin: Multiple

Technical Specifications

• Brand: LH Dottie
• MPN: 2WS121
• Type: Sheet Metal Screw
• Finish: Zinc Plated
• Material: Steel
• Length: 1 Inch
• Thread Size: #12
• Size: #12 x 1 IN
• Head Type: Pan
• Drive Type: Slotted/Phillips
• Country of Origin: Multiple
• Made in USA: No
• Measurement System: Imperial
• Thread Type: AB
• Point Type: AB
• Head Diameter: 0.425'' to 0.407''
• Head Height: 0.151'' to 0.139''
• Thread Pitch/Thread Per Inch: 14
• Drive Size: #3
• RoHS Compliant: Yes
