Lg VCM8002V504 Wi-Fi Accessory Card VCM8002V5031

Product Description

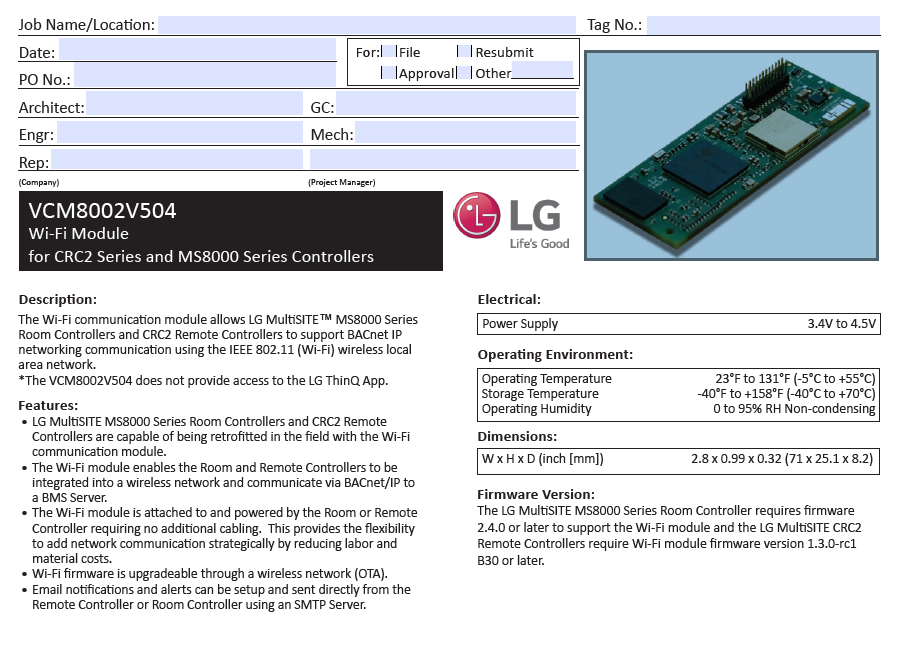

The LG VCM8002V504 Wi-Fi accessory card is a Wi-Fi module for CRC2 series and MS8000 series controllers. The VCM8002V504 communication module allows LG MultiSITE MS8000 series room controllers and CRC2 remote controllers to support networking communication using the IEEE 802.11 (Wi-Fi) wireless local area network. Note: The VCM8002V504 does not provide access to the LG ThinQ App.

• For MS8350 (VT8350) / MS8650 (VT8650)
• Wi-Fi firmware is upgradeable through a wireless network (OTA)
• Attached to and powered by the room or remote controller requiring no additional cabling

Product Highlights

This Wi-Fi module enables integration into a wireless network and communicates via BACnet/IP to a BMS Server. It is easy to install and use.

Product Information

Standard Information

• Brand: LG
• Manufacturer Part Number: VCM8002V504

Technical Specifications

• Compatible Model(s): LG Wi-Fi Accessory Card - VCM8002V504
• Device Type: Wi-Fi Control Interface
• Compatible Brands: LG
• Operating Temperature: 23 degF to 131 degF
• Relative Humidity: 95%, Non-Condensing
