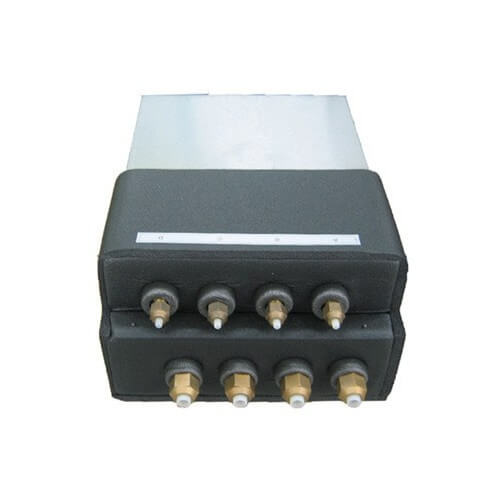

LG PMBD3641 Multi F - Branch Box - 4 Ports - Alternative Primary Port Size for Indoor Units Up to 36K BTU

Product Description

The LG PMBD3641 is a four port branch distribution box designed for LG Multi F mini split outdoor condensers. This unit facilitates the necessary power, communication, and refrigerant flow to indoor units.

• Features four distribution ports
• Supports high capacity indoor units
• Includes flared joints for simple setup

Product Highlights

Tailored for installations requiring efficient refrigerant distribution, the PMBD3641 equips systems to handle increased capacity needs up to 36,000 BTU.

Product Information

Standard Information

• Type: Branch Box
• Compatibility: LG LMU360HV Mini Split Outdoor Condenser

Technical Specifications

• Phase: 1
• Frequency: 60 Hz
• Power Consumption: 32 Watts
• Maximum Port Capacity: 36,000 BTU
• Total Port Capacity: 73,000 BTU
• Dimensions: 11 13/16 inches depth, 9 41/48 inches width, 5 11/12 inches height
• Weight: 16 pounds
• Shipping Weight: 18 pounds
