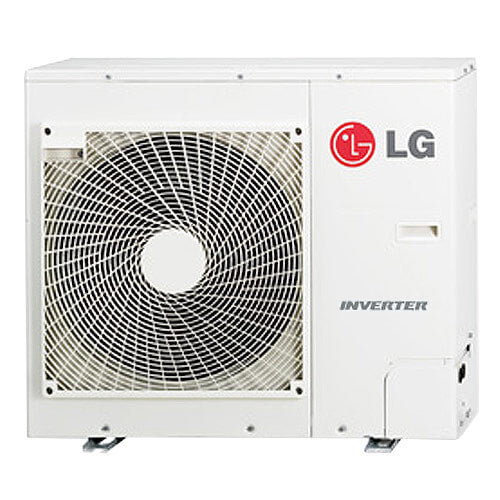

LG LUU247HV Single Zone High Static Ducted Heat Pump Outdoor Unit

Product Description

The LG LUU247HV is an outdoor unit that serves as part of a single-zone high static ducted heat pump system. This unit is designed to operate with R-410A refrigerant and provides cooling and heating functions. It requires a compatible indoor unit, specifically the LCN247HV, for complete system operation. This product should be installed by a licensed and trained HVAC professional.

• Outdoor unit for single-zone ducted heat pump systems
• Requires a separate indoor unit (LCN247HV)
• Utilizes R-410A refrigerant for efficient heating and cooling

Product Highlights

The LG LUU247HV offers reliable performance and is well-suited for residential or small commercial applications.

Product Information

Standard Information

• Product Type: Outdoor Unit
• Energy Star Rated: Yes

Technical Specifications

• Cooling Capacity (BTU): 24000
• Heating Capacity (BTU): 27000
• Number of Zones: 1
• Air Circulation (CFM H/M/L): 600/530/459
• Refrigerant Type: R-410A
• EER: 12.56
• SEER: 17
• Fan Speeds: 4/5/4
• Input Voltage: 208-230V
• Frequency: 60 Hz
• Phase: 1
• Weight: 133 lbs
• Width: 37-19/32 inches
• Depth: 12-31/32 inches
• Liquid Line: 3/8 inches
• Suction Line: 5/8 inches
• Connection Type: Flare
• Warranty: 5 Year Compressor/2 Year Parts
