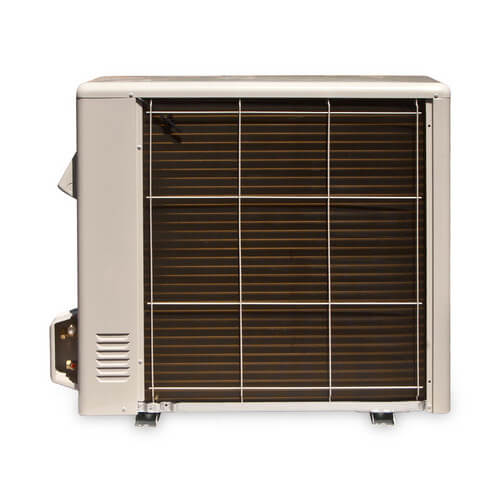

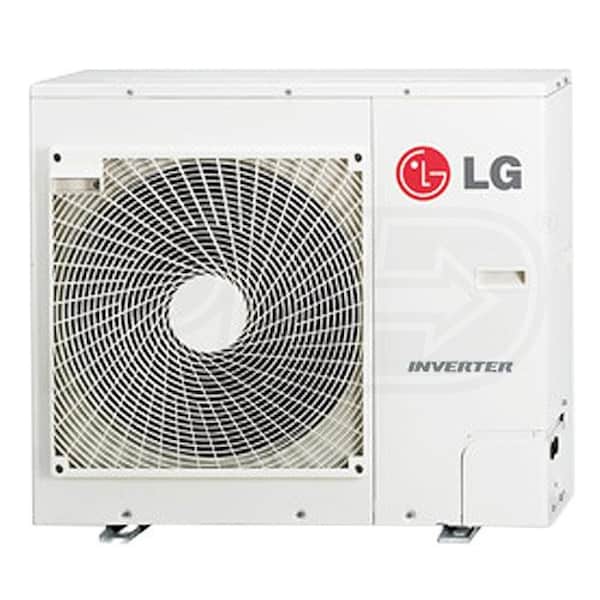

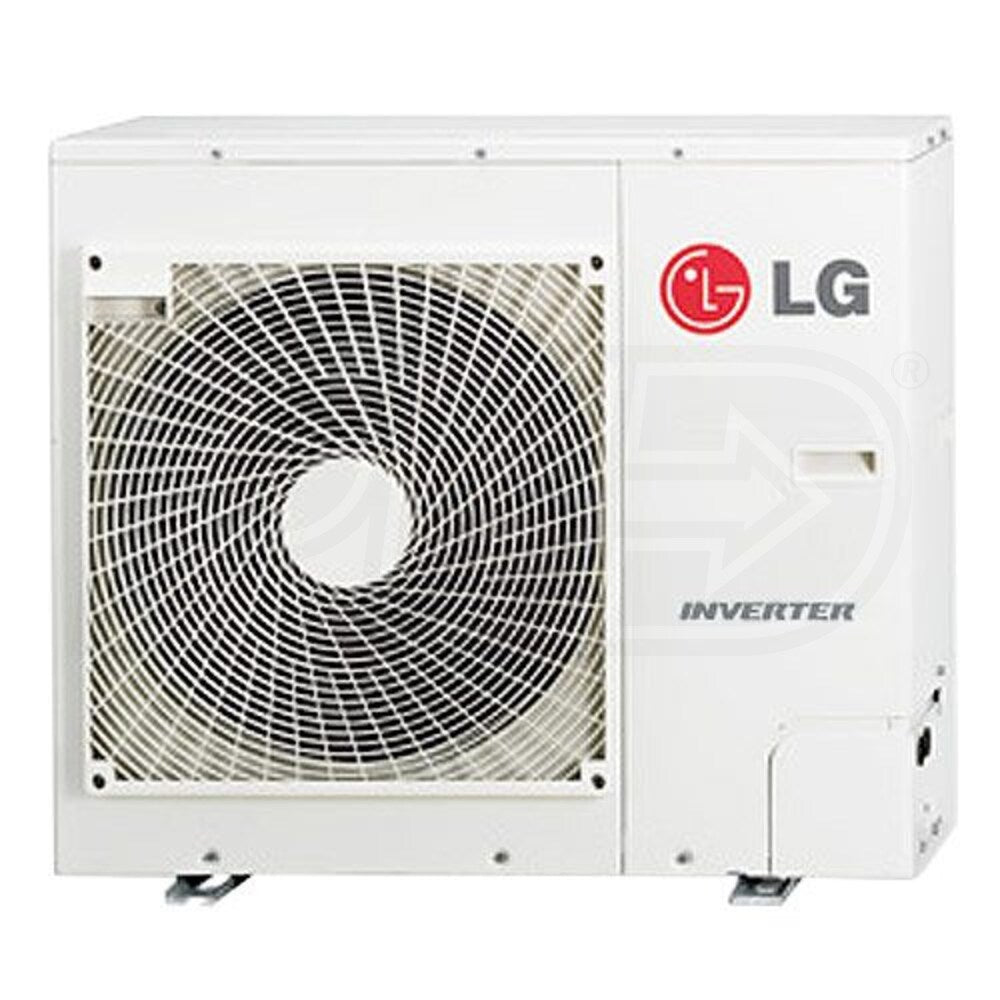

LG LUU187HV Ductless Single Zone Outdoor Unit

Product Description

The LG LUU187HV is an outdoor unit suited for single-zone ductless mini-split systems. This outdoor condenser supports heating and cooling when used with a matching indoor unit, which is sold separately. It utilizes R-410A refrigerant and operates at a voltage of 230/208-60-1. Ideal for light commercial settings and open spaces, this unit enhances energy efficiency through its inverter technology.

• Requires a compatible indoor unit, sold separately.
• Utilizes R-410A refrigerant for optimal performance.
• Engineered for single-zone ductless applications.

Product Highlights

This outdoor unit efficiently manages heating and cooling tasks. With an EER rating of fifteen and SEER rating of twenty, it ensures effective operation.

Product Information

Standard Information

• Product Type: Outdoor Unit
• Operating Mode: Heating and Cooling

Technical Specifications

• Number of Zones: 1
• Refrigerant Type: R-410A
• Cooling Capacity (BTU): 18000
• Heating Capacity (BTU): 20000
• Application: Cooling
• EER: 15
• SEER: 20
• Input Voltage: 230/208-60-1
• Phase: 1
• Frequency: 60 Hz
• Minimum Outdoor Temperature for Heating: 5 F
• Minimum Outdoor Temperature for Cooling: 14 F
• Maximum Line Length: 164 Feet

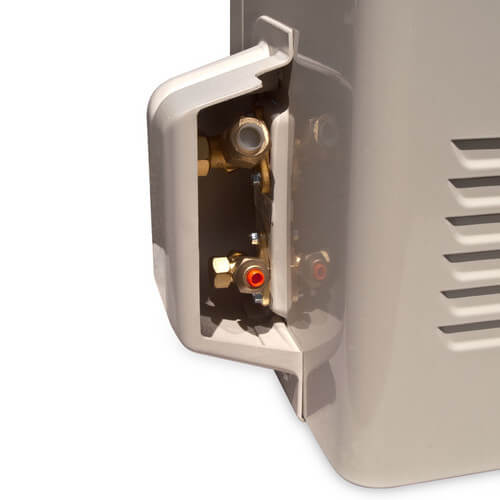

• Liquid Line: 3/8
• Liquid Connection Size: 3/8 Inch
• Suction Line: 5/8
• Gas Connection Size: 5/8 Inch
• Connection Type: Flare
• Maximum Sound Level: 52 dB
• Width: 37-19/32 Inches
• Depth: 12-31/32 Inches
• Height: 32 41/48 Inches
• Outdoor Weight: 133 lbs
• Recommended Breaker Size: 30 Amps
• Energy Star Rated: Yes
• ETL Listed: Yes
• UL Listed: Yes
• AHRI Certified: Yes
• ISO Certified: Yes
• Parts Warranty: 5 Years
• Compressor Warranty: 7 Years
