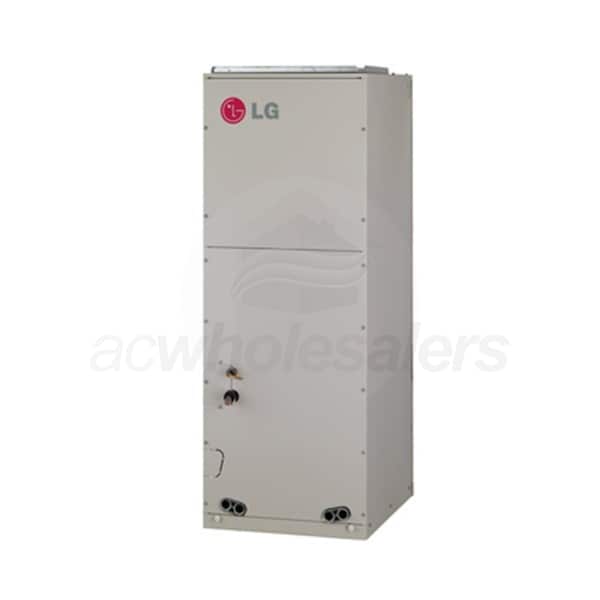

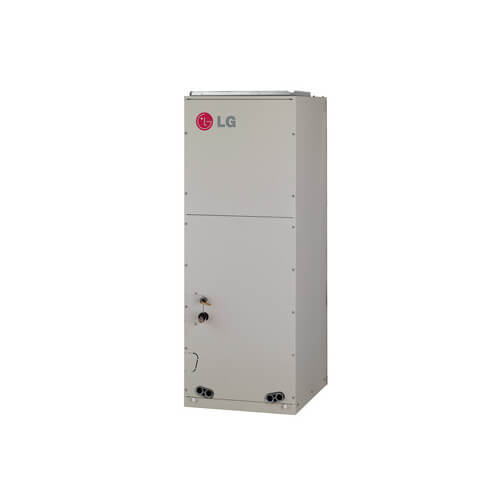

LG LMVN240HV Vertical-Horizontal Multi F Air Handling Unit

Product Description

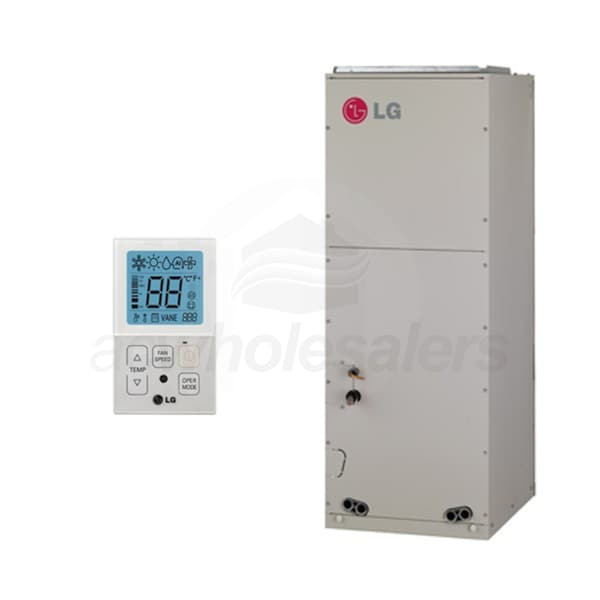

The LG LMVN240HV is an air handling unit suitable for both heating and cooling needs. This unit works with multi-zone condenser units and allows for flexibility in installation with vertical and horizontal airflow options. Constructed from durable 22-gauge precoated metal and a baked enamel finish, it is ideal for hidden setups, either behind walls or above ceilings. The unit supports ducting in a main branch and is capable of high-speed air movement against external pressures. A wired controller is included for easy operation.

• Designed for ducted installation in a main branch.
• Configured for vertical (upflow) or horizontal (left) discharge.
• Durable precoated metal casing with a baked enamel finish.

Product Highlights

This air handling unit provides efficient heating and cooling performance.

Product Information

Standard Information

• Product Type: Air Handler
• Application: Heating and Cooling

Technical Specifications

• Product Line: Multi F
• Refrigerant Type: R-410A
• Cooling Capacity: 24000 BTU
• Heating Capacity: 27000 BTU
• Air Circulation: 710/640/480 CFM
• Minimum Air Flow: 480 CFM
• Maximum Air Flow: 710 CFM
• Minimum Sound Level: 41 dB
• Maximum Sound Level: 43 dB
• Input Voltage: 230/208-60-1
• Phase: 1
• Frequency: 60 Hz
• Liquid Connection Size: 1/4 Inch
• Gas Connection Size: 1/2 Inch
• Fan Type: Sirocco
• Product Height: 48 2/3 Inches
• Product Width: 18 Inches
• Product Depth: 21 1/4 Inches
• Product Weight: 117 Pounds
• Certifications: ETL Listed, UL Listed, ISO Certified
• Parts Warranty: 5 Years
