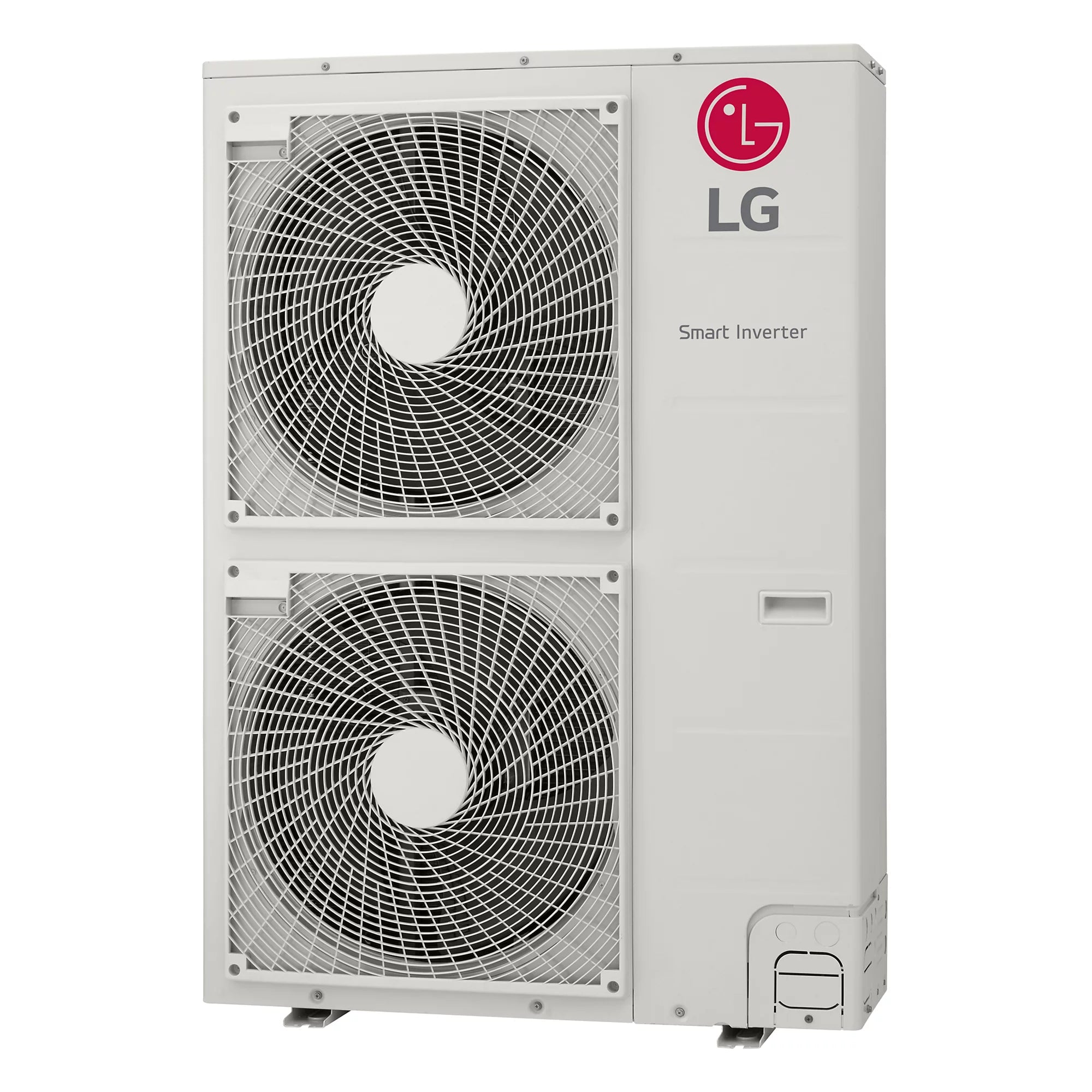

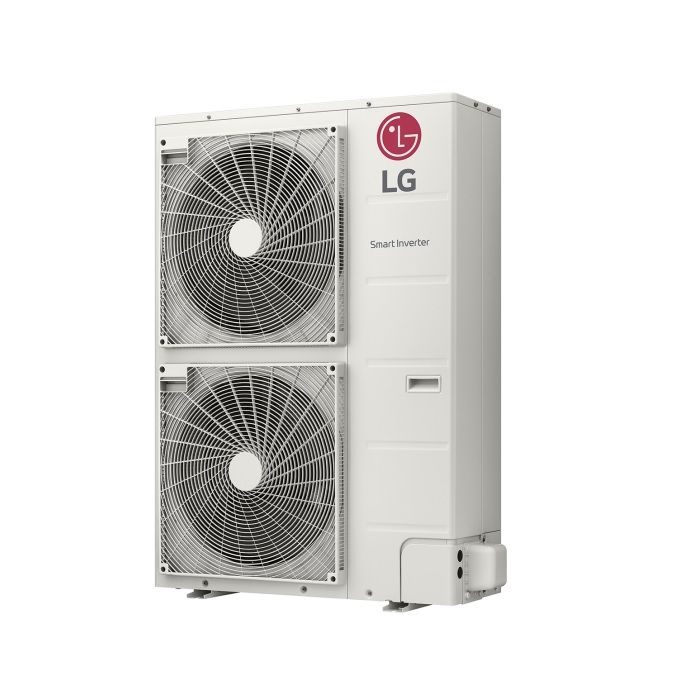

Lg LMU601HV outdoor condenser 60k BTU for 2-8 zones

Product Description

The LG LMU601HV is a multi-zone mini split outdoor condenser designed to provide efficient ductless heating and cooling for up to eight rooms. Featuring inverter technology, this unit includes an electronic expansion valve and a variable speed condenser compressor to regulate refrigerant flow, reducing energy consumption. Requires two or more compatible indoor units for functionality.

• Inverter Technology for efficient operation
• Gold Fin coating to prevent corrosion
• Low Ambient Operations for cooling down to 14°F and heating down to -4°F

Product Highlights

Efficient multi-zone mini split outdoor condenser with inverter technology and Gold Fin protection, suitable for heating and cooling multiple rooms.

Product Information

Standard Information

• Brand: LG
• Manufacturer Part Number: LMU601HV
• Country of Origin: KOR

Technical Specifications

• Phase: 1
• Voltage: 208/230 Volts
• Cooling BTU: 60000
• UL Listed: Yes
• Product Depth: 13 Inches
• Product Width: 37.416666666666664 Inches
• Type: Outdoor Condenser
• ETL Listed: Yes
• Product Height: 55.35416666666667 Inches
• Frequency: 60 Hz
• Product Category: Mini Split System Components
• ISO Certified: Yes
• Gas Connection Size: 3/4 Inch
• Maximum Line Length: 475.7 Feet
• Low Ambient Heating: Yes
• Maximum Sound Level: 58 dB
• Product Line: Multi F
• Liquid Connection Size: 3/8 Inch
• Operating Mode: Heating and Cooling
• Product Sub-line: MAX
• Refrigerant Type: R-410A
• Branch Box Required: Yes
• Recommended Breaker Size: 45 Amps
• Installation Location: Outdoor
• Multi-Zone Compatible: Yes
• Maximum Number of Zones: 8
• Minimum Outdoor Temperature for Cooling: 14 F
• Minimum Outdoor Temperature for Heating: -4 F
• AHRI - Usage: Outdoor
• CFM: 2119
• Cooling Capacity: 60000
• Cooling Rated Capacity Btu/h: 60000
• Cycle/Hertz: 60 Hz
• EER: 11.3
• Energy Star Rated: No
• Equipment Type: Heat Pump
• Heating Capacity: 64000
• Heating Capacity @ 5 deg: 52840
• High Heat HP: No
• Liquid Line: 3/8"
• Maximum Piping Height: 98.4
• Rated Current Amps (RCA): 30.4
• Rated Load Amps (RLA): 30.4
• Refrigerant Charge: 11.5 lbs
• SEER: 20.5
• Stage: Inverter
• Suction Line Size (OD): 3/4"
• Tonnage: 5
• UPC: 195174022146
• Maximum Overcurrent Protection (MOCP): 40
• Country of Origin: KOR
• Suction Line: 3/4"
• Heating Capacity (BTU): 64000
• Compressor Type: Twin Rotary
• EER Rating: 13
• Flow Rate: 345 cfm
• Fuse Size: 40 A
• Heating Capacity BTU/Hr: 68000
• HSPF Rating: 11
• Mounting Type: Wall
• Number of Phases: 1 Phase
• Power Source: 208/230 V AC, 1 ph, 60 Hz
• SEER Rating: 20.2
• Series: Multi_MAX
• Voltage Rating: 208/230v
• Commercial/Residential: Residential/Light Commercial
• Nominal Cooling Capacity (Min.-Rated-Max., Btu/h): 10,800~60,000~65,000
• Nominal Heating Capacity (Min.-Rated-Max., Btu/h): 12,420~64,000~68,000
• Max ODU to IDU Piping: 32.8 / 229.6
• Piping Length (no add'l refrigerant, ft): 180.4 ft.
• Max Elevation between IDU and IDU: 49.2 ft
• Refrigerant Control: EEV
• Sound Pressure (Cool/Heat) +/-3 dB(A): 56/58
• Net Unit Weight (lbs): 218
• Heat Exchanger Coating: GoldFin
• Min Number of Indoor Units: 2
• Max Number of Indoor Units: 8
