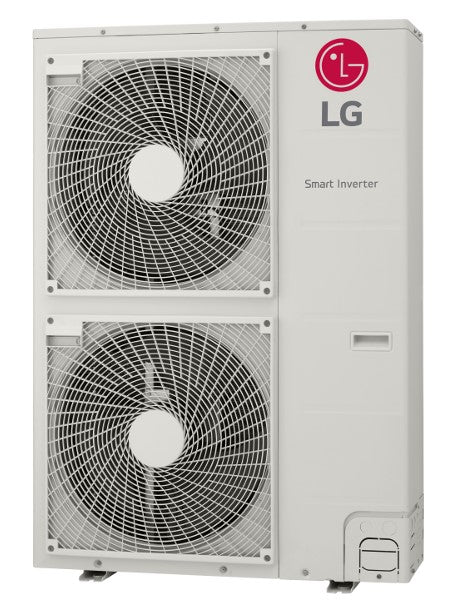

Lg LMU543HV outdoor condenser 54k BTU for 2-8 zones

Product Description

The LG LMU543HV is a multi-zone mini split outdoor condenser capable of supplying ductless heating and cooling. Designed with inverter technology, an electronic expansion valve, and a variable speed compressor regulate refrigerant flow, reducing energy consumption. Gold Fin coating prevents corrosion and improves durability. It supports cooling operations down to 14 degrees Fahrenheit and heating operations down to -4 degrees Fahrenheit.

• Inverter Technology for efficient operation
• Gold Fin Protection to prevent corrosion
• Supports low ambient operations for cooling and heating

Product Highlights

The LMU543HV features a quiet design and is compatible with LG LMN, LSN, LMAN, LAN, LMCN, LMDN, LMHN, and LMVN series indoor units.

Product Information

Standard Information

• Brand: LG
• Manufacturer Part Number: LMU543HV
• Country of Origin: Korea

Technical Specifications

• Phase: 1
• Voltage: 208/230 Volts
• Cooling BTU: 54000
• Product Depth: 13 Inches
• Product Width: 37 19/48 Inches
• Type: Outdoor Condenser
• Product Height: 54 17/48 Inches
• Frequency: 60 Hz
• Product Category: Mini Split System Components
• AHRI Certified: Yes
• Gas Connection Size: 3/4 Inch
• Maximum Line Length: 475.7 Feet
• Low Ambient Heating: Yes
• Maximum Sound Level: 55 dB
• Product Line: Multi F
• Liquid Connection Size: 3/8 Inch
• Operating Mode: Heating and Cooling
• Product Sub-line: MAX
• Refrigerant Type: R-410A
• Branch Box Required: Yes
• Recommended Breaker Size: 40 Amps
• Installation Location: Outdoor
• Multi-Zone Compatible: Yes
• Maximum Number of Zones: 8
• Minimum Outdoor Temperature for Cooling: 14 F
• Minimum Outdoor Temperature for Heating: -4 F
• Number of Zones: 5
• Outdoor Unit Size: 54000 BTU
• DOE Regional Compliance: Nationwide
• SEER2: 20.6
• EER2: 12.6
• HSPF2: 9.3
• Energy Star Listed: Yes
• CSA Listed: Yes
• AHRI Reference Number: 210529235
