LG LMU540HV Multi F MAX Outdoor Condenser

Product Description

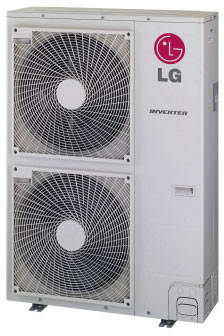

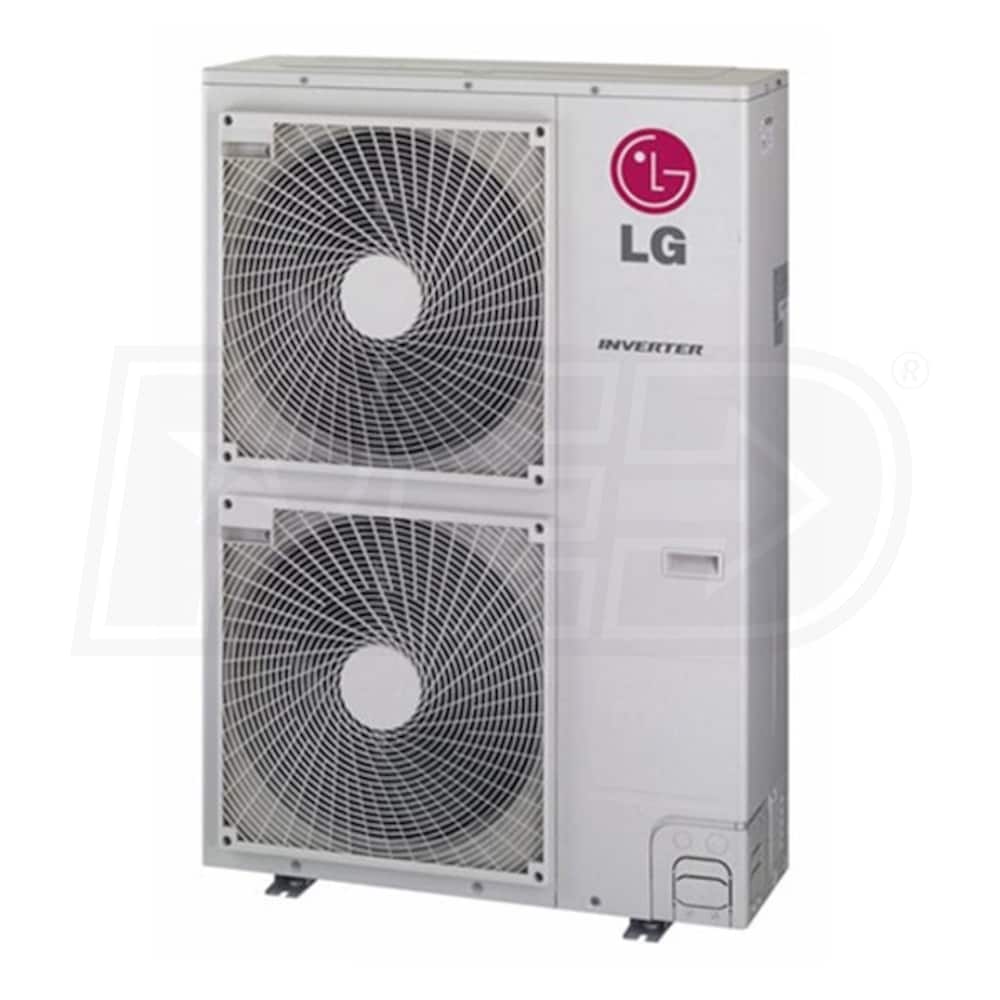

The LG LMU540HV is an outdoor multi-zone mini split condenser. Designed for ductless heating and cooling systems, this unit can support up to eight zones for precise temperature control in various rooms. It uses inverter technology and is compatible with many LG indoor units.

• Outdoor condenser for ductless mini split systems
• Supports heating and cooling for up to eight zones
• Durable Gold Fin coating for corrosion resistance

Product Highlights

Utilizing R-410A refrigerant, the LG LMU540HV delivers efficient heating and cooling across multiple zones.

Product Information

Standard Information

• Brand: LG
• MPN: LMU540HV

Technical Specifications

• Product Category: Mini Split System Components
• Type: Outdoor Condenser
• Product Line: Multi F
• Product Sub-line: MAX
• Operating Mode: Heating and Cooling
• Maximum Number of Zones: 8
• Multi-Zone Compatible: Yes
• Refrigerant Type: R-410A
• Installation Location: Outdoor
• Cooling BTU: 54000
• Heating Capacity: 54,500
• Maximum Sound Level: 56 dB
• Input Voltage: 208/230 Volts
• Recommended Breaker Size: 40 Amps
• Maximum Overcurrent Protection (MOCP): 40
• Gas Connection Size: 3/4 Inch
• Liquid Connection Size: 3/8 Inch
• Product Height: 54.35 Inches
• Product Width: 37.42 Inches
• Product Depth: 13 Inches
• Product Weight: 214 Pounds
• Shipping Weight: 236 Pounds
