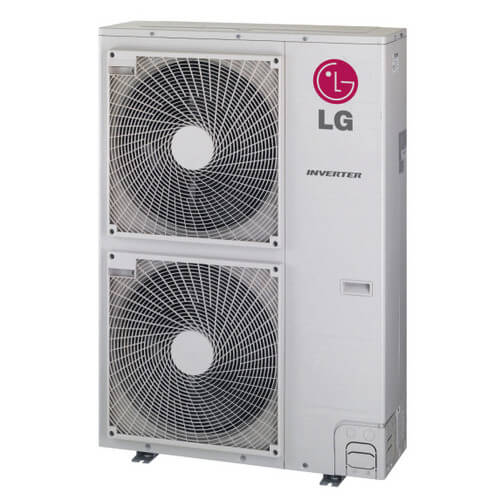

LG LMU480HV Multi F MAX 48,000 BTU Outdoor Condenser

Product Description

The LG LMU480HV is a robust outdoor condenser unit tailored for multi-zone ductless split systems. This unit is part of the LG Multi F MAX series, effectively providing both heating and cooling solutions. It is capable of supporting up to eight zones, giving users the ability to regulate temperatures individually when paired with compatible indoor units, which are sold separately. This unit utilizes inverter technology for efficient performance and R-410A refrigerant for environmental compliance.

• Outdoor condenser designed for multi-zone ductless systems.
• Supports operation in up to 8 zones for customized climate management.
• Utilizes inverter technology and R-410A refrigerant.

Product Highlights

Ideal for residential or commercial applications, ensuring energy efficiency and precise climate control for multiple areas.

Product Information

Standard Information

• Brand: LG
• MPN: LMU480HV

Technical Specifications

• Product Category: Mini Split System Components
• Type: Outdoor Condenser
• Product Line: Multi F
• Operating Mode: Heating and Cooling
• Cooling Capacity: 48,000 BTU
• Heating Capacity: 54,000 BTU
• Maximum Number of Zones: 8
• Multi-Zone Compatible: Yes
• Refrigerant Type: R-410A
• Refrigerant Charge: 9.7 lbs
• Installation Location: Outdoor
• Branch Box Required: Yes
• Maximum Sound Level: 56 dB
• Low Ambient Heating: Yes
• Minimum Outdoor Temperature for Heating: -4 F
• Minimum Outdoor Temperature for Cooling: 14 F
• Voltage: 208/230 VAC
• Phase: 1
• Frequency: 60 Hz
• Recommended Breaker Size: 40 Amps
• Maximum Overcurrent Protection (MOCP): 45
• Maximum Line Length: 475.7 Feet
• Maximum Piping Height: 98.4 inches
• Gas Connection Size: 3/4 Inch
• Liquid Connection Size: 3/8 Inch
• Liquid Line Size: 3/8 inches
• Suction Line Size: 3/4 inches
• Product Height: 54 17/48 inches
• Product Width: 37 29/48 inches
• Product Depth: 15 3/4 inches
• Product Weight: 214 Pounds
• UL Listed: Yes
• ETL Listed: Yes
• ISO Certified: Yes
• Parts Warranty: 5 Years
• Compressor Warranty: 7 Years
• EER: 11.4
• Energy Star Rated: Yes
• Equipment Type: Heat Pump
• Inverter: Yes
• Rated Current Amps (RCA): 27.06
• Rated Load Amps (RLA): 27.06
• SEER: 19.5
• Country of Origin: KOR
