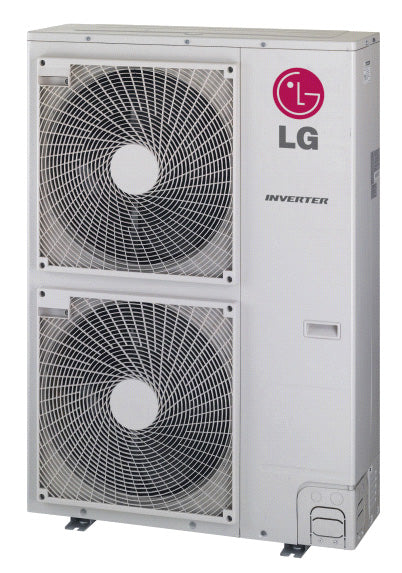

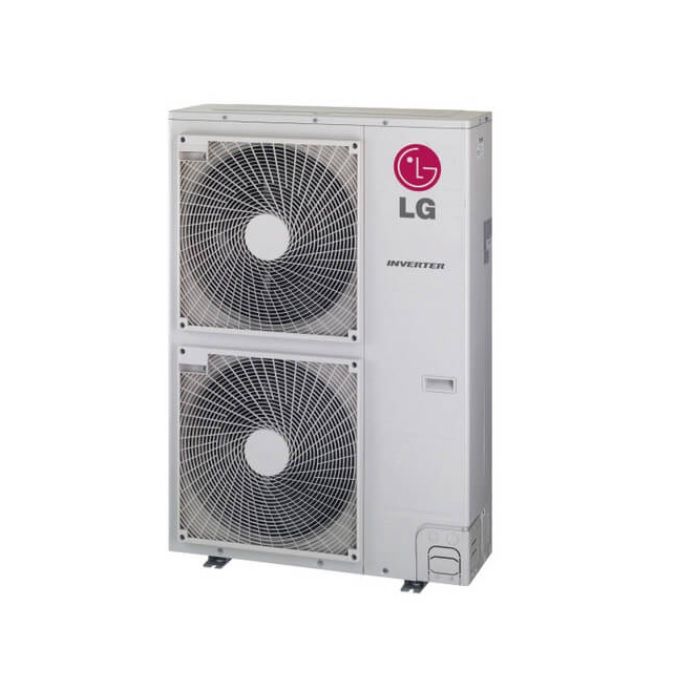

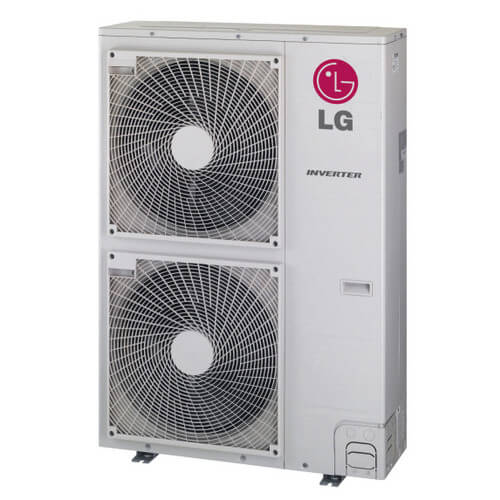

Lg LMU480HHV 48k BTU LgRED Heat Outdoor Condenser 48000/52000

Product Description

The LG LMU480HHV is a 48k BTU LGRED Heat outdoor condenser designed for 2-8 zones. LG's inverter technology features an electronic expansion valve and a variable speed compressor that regulates refrigerant flow, reducing energy consumption. The Gold Fin coating prevents corrosion and improves durability. Base pan heaters are factory installed to mitigate damage caused by freezing condensate.

• Inverter Technology regulates refrigerant flow for consistent temperatures.
• Gold Fin Protection prevents corrosion and improves durability.
• Integrated Base Pan Heater mitigates damage from freezing condensate.

Product Highlights

This LG outdoor condenser provides efficient heating and cooling with robust construction and innovative features for home comfort.

Product Information

Standard Information

• Brand: LG
• Manufacturer Part Number: LMU480HHV
• Country of Origin: US

Technical Specifications

• Phase: 1
• Voltage: 208/230 Volts
• Cooling BTU: 48000
• UL Listed: Yes
• Product Depth: 13 Inches
• Type: Outdoor Condenser
• ETL Listed: Yes
• Frequency: 60 Hz
• Product Category: Mini Split System Components
• ISO Certified: Yes
• Gas Connection Size: 3/4 Inch
• Maximum Line Length: 475.7 Feet
• Cooling Power Input: 3840 Watts
• Heating Power Input: 3620 Watts
• Low Ambient Heating: Yes
• Maximum Sound Level: 56 dB
• Product Line: LGRED Heat
• Liquid Connection Size: 3/8 Inch
• Operating Mode: Heating and Cooling
• Refrigerant Type: R-410A
• Branch Box Required: Yes
• Minimum Circuit Ampacity: 32.7 Amps
• Recommended Breaker Size: 40 Amps
• Installation Location: Outdoor
• Multi-Zone Compatible: Yes
• Maximum Number of Zones: 8
• Base Pan Heater Included: Yes
• Minimum Outdoor Temperature for Cooling: 14 F
• Minimum Outdoor Temperature for Heating: -13 F
• SEER: 19.5
• Hertz: 60
• Application: Cooling
• Liquid Line: 3/8"
• Suction Line: 3/4"
• Number of Zones: 8
• Cooling Capacity (BTU): 48000
• Heating Capacity (BTU): 52500
• Series: Multi F MAX with LGRED°
• Tonnage: 4 Ton
• MBTU: 48
• Manufacturer Part Number: LMU480HHV
• Manufacturer: LG Electronics
• Heating Capacity BTU/H: 52,000
• Cooling Capacity BTU/H: 48,000
• Refrigerant Control: EEV
• Sound Pressure (Cool/Heat) +/-3 dB(A): 54/56
• Min Number of Indoor Units: 2
• Max Number of Indoor Units: 8
• Compressor Type: Twin Rotary
• Cooling Capacity: 24000 Btu/hr
• EER Rating: 13.5
• Flow Rate: 2295 cfm
• Fuse Size: 15.73 A
• HSPF Rating: 10.7
• Mounting Type: Wall
• Power Source: Hardwired
• Refrigerant: R-410A
• Electrical Phases: 1
• Amperage: 32.7 A
