Product Description

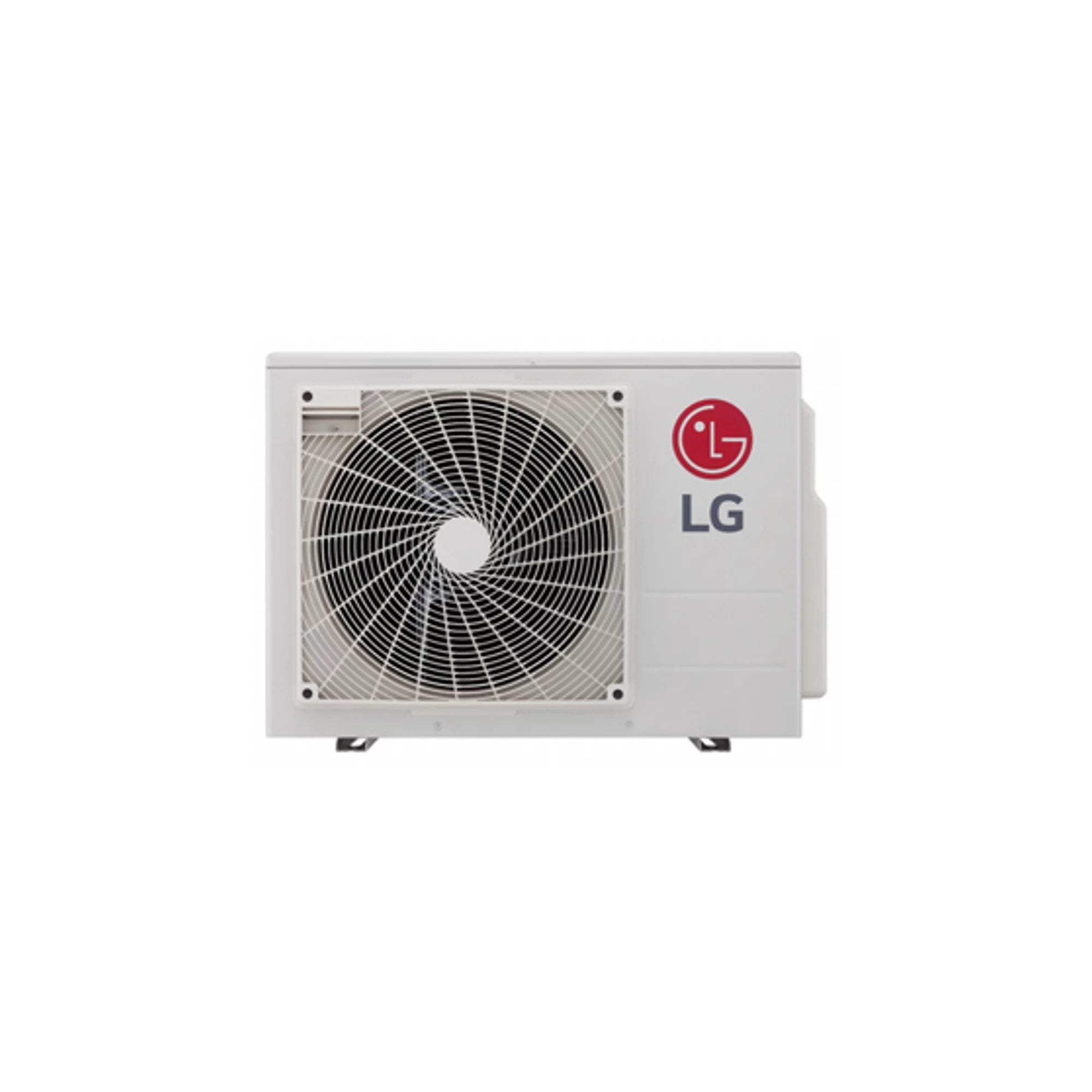

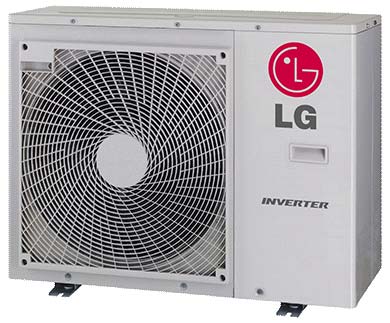

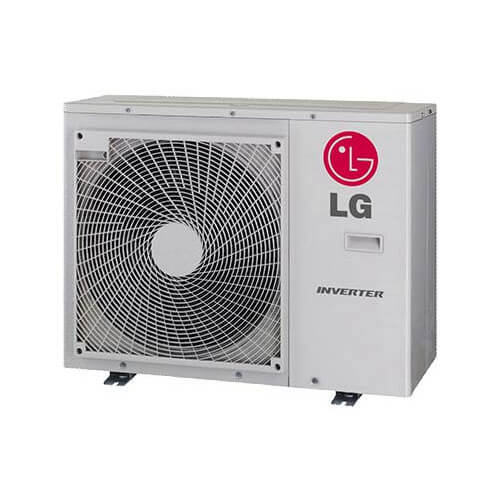

The LG LMU303HV is a multi-zone mini split outdoor condenser capable of supplying ductless heating and cooling for up to four rooms. Designed with efficient inverter technology, an electronic expansion valve and a variable speed compressor carefully regulate the refrigerant flow, reducing energy consumption and allowing for consistent, accurate temperatures. Gold Fin coating prevents corrosion and improves durability.
- Inverter Technology
- Gold Fin Protection
- Low Ambient Operations
Product Highlights
The LMU303HV is compatible with LG LMN, LSN, LMAN, LAN, LMCN, and LMDN Mini Split Indoor Units. It also features a quiet design thanks to a brushless direct current motor and a twin rotary compressor.
Product Information
Standard Information
-
Brand: LG
-
Manufacturer Part Number: LMU303HV
-
Country of Origin: KOR
Technical Specifications
-
Phase: 1
-
Voltage: 208/230 Volts
-
UPC: 195174039946
-
Cooling BTU: 30000
-
UL Listed: Yes
-
Product Depth: 15.5 Inches
-
Product Width: 37.395833333333336 Inches
-
Type: Multi Zone
-
Product Height: 32.85416666666667 Inches
-
Frequency: 60 Hz
-
ISO Certified: Yes
-
Maximum Line Length: 246.1 Feet
-
Low Ambient Heating: Yes
-
Maximum Sound Level: 54 dB
-
Product Line: Multi F
-
Operating Mode: Heating and Cooling
-
Line Set A Gas Connection: 3/8 Inch
-
Line Set B Gas Connection: 3/8 Inch
-
Line Set C Gas Connection: 3/8 Inch
-
Line Set D Gas Connection: 3/8 Inch
-
Product Category: Mini Split System Components
-
Refrigerant Type: R-410A
-
Line Set A Liquid Connection: 1/4 Inch
-
Line Set B Liquid Connection: 1/4 Inch
-
Line Set C Liquid Connection: 1/4 Inch
-
Line Set D Liquid Connection: 1/4 Inch
-
Recommended Breaker Size: 25 Amps
-
Installation Location: Outdoor
-
Multi-Zone Compatible: Yes
-
Maximum Number of Zones: 4
-
Minimum Outdoor Temperature for Cooling: 14 F
-
Minimum Outdoor Temperature for Heating: -4 F
-
AHRI - Usage: Outdoor
-
CFM Cooling: 2119
-
Cooling Capacity: 36000 Btu/hr
-
Cooling Rated Capacity Btu/h: 30000
-
EER2: 13
-
Energy Star Rated: Yes
-
Equipment Type: Heat Pump
-
ETL Listed: Yes
-
Heating Capacity @ 5 deg: 24000
-
Inverter: Yes
-
Liquid Line Size (OD): 1/4"
-
Maximum Piping Height: 82
-
Rated Current Amps (RCA): 15.03
-
Rated Load Amps (RLA): 15.03
-
Refrigerant Charge: R-410A
-
SEER2: 22
-
Stage: Single
-
Suction Line Size (OD): 3/8"
-
Tonnage: 2.5
-
SEER: 22
-
Hertz: 60
-
Application: Cooling
-
Liquid Line: 1/4"
-
Product Type: Outdoor Unit
-
Suction Line: 3/8"
-
Number of Zones: 4
-
Cooling Capacity (BTU): 30000
-
Heating Capacity (BTU): 32000
-
Series: Multi-F
-
MBTU: 30
-
EER: 13
-
Zone(s): 4
-
Electrical: 208/230V-60Hz-1Ph
-
Model: HV
-
Nominal Cool BTUH: 30000
-
Usage: Heat Pump
-
Compressor Type: Inverter
-
Domestic/Import: Import
-
EER Rating: 13
-
Flow Rate: 345 cfm
-
Fuse Size: 25 A
-
HSPF Rating: 9.5
-
Mounting Type: Wall
-
Power Source: 208 to 230 V AC, 1 pH, 60 Hz
-
Refrigerant: R410A
-
SEER Rating: 22
-
Number of Phases: 1 Phase
-
Voltage Rating: 208/230v
-
Commercial/Residential: Residential/Light Commercial
-
Nominal Cooling Capacity: 30,000 (Btu/h)
-
Nominal Heating Capacity: 32,000 (Btu/h)
-
Max ODU to IDU Piping: 82 ft
-
Piping Length (no add'l refrigerant, ft): 98.4
-
Max Elevation between ODU and IDU: 49.2 ft
-
Max Elevation between IDU and IDU: 24.6 ft
-
Refrigerant Control: EEV
-
Sound Pressure (Cool/Heat) +/-3 dB(A): 52/55
